- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sanhe
-
Model Number:
-
11-5/11-5T
-
External Size:
-
160x160x90 mm
-
Material:
-
ABS, ABS
-
Color:
-
Light grey
-
IP Rate:
-
IP65
-
Package:
-
Carton Package
-
Payment:
-
Paypal\TT\Alipay
-
MOQ:
-
1pc
-
Certificate:
-
ISO9001
-
Drawing Format:
-
3D/CAD/DWG//STEP/PDF
-
Sample:
-
Availiable
-
Customizable:
-
Availble
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Junction Box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhe
-
Model Number:
-
11-5/11-5T
-
External Size:
-
160x160x90 mm
-
Material:
-
ABS, ABS
-
Color:
-
Light grey
-
IP Rate:
-
IP65
-
Package:
-
Carton Package
-
Payment:
-
Paypal\TT\Alipay
-
MOQ:
-
1pc
-
Certificate:
-
ISO9001
-
Drawing Format:
-
3D/CAD/DWG//STEP/PDF
-
Sample:
-
Availiable
-
Customizable:
-
Availble
|

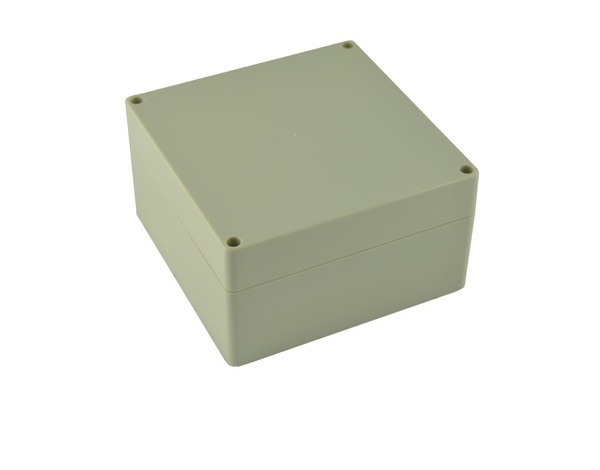

Photo |
Parameter |
|
|
Brand | Sanhe |
| Type | plastic waterproof enclosures | |
| Code | 11- 5/11-5T | |
| IP | 65 | |
| Material | ABS | |
| Size | 160x160x90 mm | |
| NO. | Part name | Qty | Material |
| 1 | Cover | 1 | ABS |
| 2 | Bottom | 1 | ABS |
| 3 | Sealing | 1 | Silicone Foam |
| 4 | Screw | 4 | Iron |
| MODEL | SIZE | Material | ||||
| No-Transparency | Transparency cover | L | W | H | H1 | |
| 11-1 | 11-1 T | 200 | 120 | 75 | 15 | ABS/PC |
| 11-2 | 11-2 T | 158 | 90 | 61 | 20 | ABS/PC |
| 11-3 | 11-3 T | 115 | 90 | 55 | 15 | ABS/PC |
| 11-4 | 11-4 T | 100 | 68 | 50 | 15 | ABS/PC |
| 11-5 | 11-5 T | 160 | 160 | 90 | 30 | ABS/PC |
| 11-6 | 11-6 T | 263 | 184 | 95 | 20.5 | ABS/PC |
| 11-12 | 11-12 T | 160 | 45 | 55 | 15 | ABS/PC |
| 11-15 | 11-15 T | 140 | 82 | 45 | 15 | ABS/PC |
| 11-84 | 11-84 T | 160 | 80 | 55 | 15 | ABS/PC |
| 11-85 | 11-85 T | 171 | 121 | 55 | 15 | ABS/PC |
| 11-86 | 11-86 T | 160 | 80 | 85 | 15 | ABS/PC |
| 11-87 | 11-87 T | 182 | 180 | 109 | 39 | ABS/PC |
| 11-88 | 11-88 T | 83 | 81 | 56 | 15.5 | ABS/PC |
| 11-89 | 11-89 T | 161 | 81 | 56 | 15.5 | ABS/PC |
| 11-93 | 11-93 T | 122 | 120 | 55 | 15 | ABS/PC |
| 11-27 | 11-27 T | 318 | 238 | 101 | 16 | ABS/PC |
| 11-28 | 11-28 T | 318 | 238 | 66 | 16 | ABS/PC |
| 11-30 | 11-30 T | 240 | 160 | 91 | 15 | ABS/PC |
| 11-31 | 11-31 T | 240 | 160 | 65 | 15 | ABS/PC |
| 11-33 | 11-33 T | 194 | 80 | 60 | 16 | ABS/PC |
| 11-34 | 11-34 T | 180 | 125 | 60 | 16 | ABS/PC |
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference .
5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.
7. More details you also can visit our company web: www.china-mould.com .
