Quick Details
-
Working range:
-
300*300*100*360°
-
Maximum Load:
-
X/Y : 10kg Z:5kg
-
Repeatability:
-
±0.02mm
-
Axis:
-
4 axis
-
Moter system:
-
Stepper motor
-
Standard:
-
CE
-
Function:
-
Glue Dispensing
-
Weight:
-
58kg
-
Dimensions(L*W*H):
-
540*580*650
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RobotAnno
-
Weight (KG):
-
50
-
Working range:
-
300*300*100*360°
-
Maximum Load:
-
X/Y : 10kg Z:5kg
-
Repeatability:
-
±0.02mm
-
Axis:
-
4 axis
-
Moter system:
-
Stepper motor
-
Standard:
-
CE
-
Function:
-
Glue Dispensing
-
Weight:
-
58kg
-
Dimensions(L*W*H):
-
540*580*650

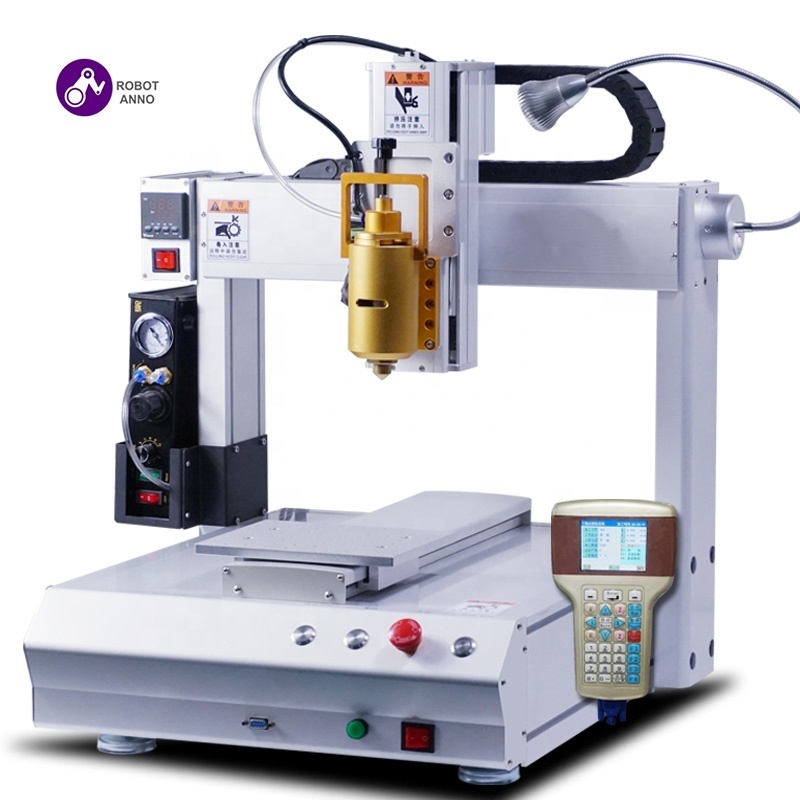

Product Description
Specification
|
Model
|
PUR331 / PUR331RY
|
|
Working range(mm)
|
300/300/100 300/300/100/360°
|
|
Programmatic ally
|
Import teaching programming or graphics
|
|
Can move the graph track
|
Point, line, arc, circle, cure, multiple lines, spiral, ellipse
|
|
Control System
|
Single chip + hand box control
|
|
Dispensing head
|
PUR dispensing head/PUH dispensing head
|
|
Dispensing cylinder
|
30ml or 50ml
|
|
Minimum discharge
|
0.01ml
|
|
The glue frequency
|
5Time/SEC
|
|
Load
|
10KG
|
|
Axial dynamic speed X/Y/Z(mm/sec)
|
0-600mm/sec
|
|
Repeatability(mm)
|
±0.02mm
|
|
Program record mode
|
At least 100,5000 points each
|
|
Display mode
|
LCD Teaching box
|
|
Motor system
|
stepper motor
|
|
Guide
|
Taiwan upper silver linear guide
|
|
Wire rod
|
Taiwan TBI silver bar
|
|
Belt
|
Italy synchronous belt
|
|
Motion filling function
|
3 Axis
|
|
Input power
|
AC110V~ 220V
|
|
External control interface
|
RS232
|
|
Motor control shaft number
|
3 Axis
|
|
Outline size(mm)
|
530*589*632mm
|
|
Weight(KG)
|
45KG
|
Detailed Images
VARIOUS DISPENSING HEAD
It can be choose according your needs
HAND TEACH PENDANT
Easy programming
TENPERATURE C
O
NTRO
LLER
Adjust the temperature according to the requirements of the dispensing process
JANPAN STEPPER MOTOR
ITALY TALY LARTEY SYNCHRONOUS BELT
MINGWEI POWER
TAIWAN AIRTAC TYPE SOLENOID VALVE
