IP65 waterproof, use water cleaning directly, save time while cleaning;
◆ Modular control system, more stability and lower maintenance fees;
◇ Production records can be checked at anytime or download to PC;
◆ Load cell or photo sensor checking to satisfy different requirements;
◇ Preset stagger dump function to stop blockage;
◆ Design linear feeder pan deeply to stop small granule products leaking out;
◇ Refer to product features, select automatic or manual adjust feeding amplitude;
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1159
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
material:
-
cartbon painted
-
Item:
-

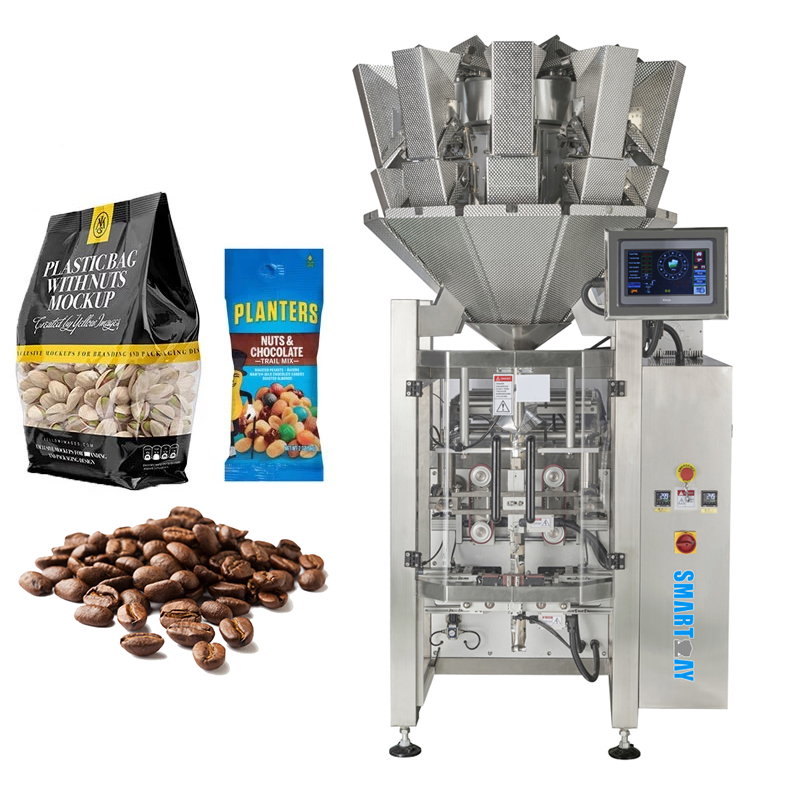

High Precision 18-Heads Multihead Weigher
-
MOQ:
-
1 Set Multihead Weigher
-
Packaging speed:
-
5 - 60 Bags/min
-
Main Function:
-
weighing ,filling,sealing
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Sealing, packing
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
1159
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
material:
-
cartbon painted
-
Item:
-
High Precision 18-Heads Multihead Weigher
-
MOQ:
-
1 Set Multihead Weigher
-
Packaging speed:
-
5 - 60 Bags/min
-
Main Function:
-
weighing ,filling,sealing
-
After Warranty Service:
-
Video technical support
product information
|
Model
|
SW-M10P42
|
System
|
Packing machine: branded PLC control system
Multihead weigher: modular control system
|
|
|
|
Grade of waterproof
|
IP65
|
Accuracy
|
±0.1-1.5 g
|
|
|
|
Bag material
|
Laminated or PE film
|
Weighing method
|
Load cell
|
|
|
|
Control panel
|
7” touch screen
|
Power supply
|
5.95 KW
|
|
|
|
Air consumption
|
1.5m3/min
|
Voltage
|
220V/50HZ or 60HZ, single phase
|
|
|
|
Weigh range
|
10-800g
|
Speed
|
Max 60 bags/min
|
|
|
Machine Show
Application
Automatic weighing packing machine is suitable for packaging of bulk materials with high precision and fragility, such as:puffed food, jelly, candy, nuts, potato chips, small hardware, medicinal materials, etc.
According to customer needs,can offer different bag styles.such as pillow bag,back sealed bag with hole,gusseted bag and gusseted bag with hole hanging.
Features
1. Smaller footprint
Advanced two in on vertical packing machine machines economical packaging solutions that conserve valuable plant floor space.
The comparison of machine height:
2. Same configuration as standard vertical packing line
* SIEMENS PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting,finished
in one operation;
* Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
* Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
* Film centering automatically is available (Optional);
* Only control touch screen to adjust bag deviation. Simple operation;
* Film in roller can be locked and unlocked by air, convenient while change film
in one operation;
* Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
* Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
* Film centering automatically is available (Optional);
* Only control touch screen to adjust bag deviation. Simple operation;
* Film in roller can be locked and unlocked by air, convenient while change film
Success Cases
Compact 10 heads weigher vffs packing machineis capable of handling low target weights at ideal speed and with unsurpassed accuracy.
Packing Solution For Beans
Packing Solution For Snacks
Packing Solution For Peanuts
Packing Solution For Pet Food
Machine drawings
3D showroom
Company Introduction.
FAQ
1. How can you meet our requirements and needs well?
We will recommend the suitable model of machine and make the unique design
based on your project details and requirements.
2. Are you manufacturer or trading company?
We are manufacturer; we are specializing in packing machine line for many years.
3. What about your payment?
* T/T by bank account directly
* Trade assurance service on Alibaba
* L/C at sight
4. How can we check your machine qualityafter we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What's more, welcome to come to our factory tocheck the machine by you own
5. How can you ensure you will send us the machine after the balance paid?
We are a factory with business license and certificate. If that is not enough, we can make the deal through trade assurance
service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
* Professional team 24 hours provide service for you
* 15 months warranty
* Old machine parts can be replaced no matter how long you have bought our machine
* Oversea sevice is provided.
based on your project details and requirements.
2. Are you manufacturer or trading company?
We are manufacturer; we are specializing in packing machine line for many years.
3. What about your payment?
* T/T by bank account directly
* Trade assurance service on Alibaba
* L/C at sight
4. How can we check your machine qualityafter we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What's more, welcome to come to our factory tocheck the machine by you own
5. How can you ensure you will send us the machine after the balance paid?
We are a factory with business license and certificate. If that is not enough, we can make the deal through trade assurance
service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
* Professional team 24 hours provide service for you
* 15 months warranty
* Old machine parts can be replaced no matter how long you have bought our machine
* Oversea sevice is provided.
FAQ
1. How can you meet our requirements and needs well?
We will recommend the suitable model of machine and make the unique design based on your project details and requirements.
2. Are you manufacturer or trading company?
We are manufacturer; we are specializing in packing machine line for many years.
3. What about your payment?
* T/T by bank account directly
* Trade assurance service on Alibaba
* L/C at sight
4. How can we check your machine qualityafter we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What's more, welcome to come to our factory to check the machine by you own
5. How can you ensure you will send us the machine after the balance paid?
We are a factory with business license and certificate. If that is not enough, we can make the deal through trade assurance service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
* Professional team 24 hours provide service for you
15 months warranty
Old machine parts can be replaced no matter how long you have bought our
machine
* Oversea sevice is provided.
