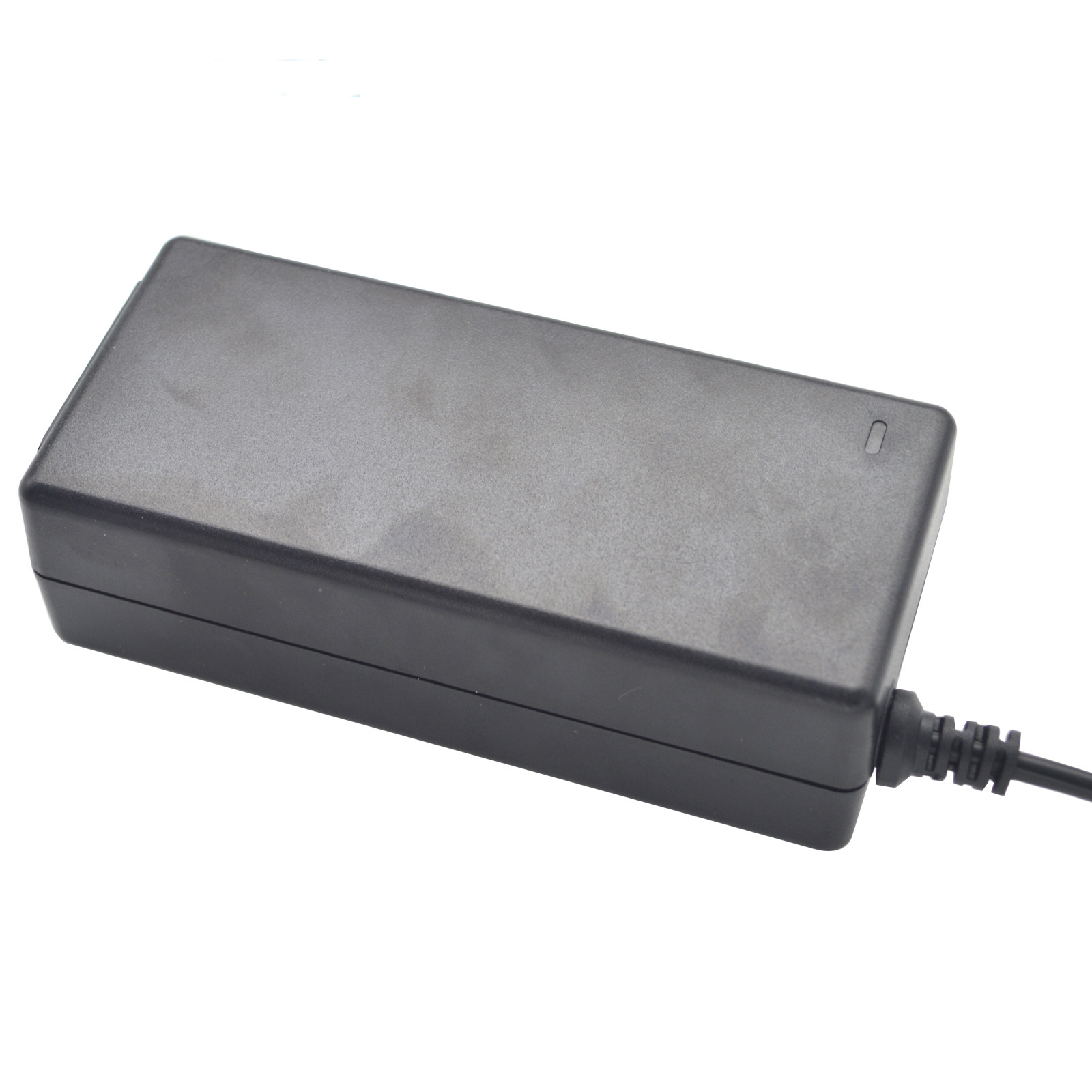

3.7V Power Ac Adapters 1000V 5Kw Dc Power Supply

3.7V Power Ac Adapters 1000V 5Kw Dc Power Supply

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: STARWELL

Model Number:: SW-60W-72W-84W-90W

Output Frequency:: 50/60hz

Output Current:: 5V 4A 2.5A

input:: 100-240V ac

output:: 12V 15V 18V 24V 60W 72W

type:: Desktop type

application:: CCTV camera , printers , led strips,linear products,medical device,etc

output model:: direcet current

certificate:: UL CE FCC SAA C-tick CB

inlet:: C8 ,C14,C6

DC plug:: 5.5*2.1*10mm / 5.5*2.5*10mm / customerized

warranty:: 2 years

weight:: 200g

Quick Details

Input Voltage:: 100-240V ac

Output Voltage:: 12V 15V 24V 36V

Place of Origin:: Guangdong, China

Brand Name:: STARWELL

Model Number:: SW-60W-72W-84W-90W

Output Frequency:: 50/60hz

Output Current:: 5V 4A 2.5A

input:: 100-240V ac

output:: 12V 15V 18V 24V 60W 72W

type:: Desktop type

application:: CCTV camera , printers , led strips,linear products,medical device,etc

output model:: direcet current

certificate:: UL CE FCC SAA C-tick CB

inlet:: C8 ,C14,C6

DC plug:: 5.5*2.1*10mm / 5.5*2.5*10mm / customerized

warranty:: 2 years

weight:: 200g

Product Description

Input Rated Voltage :	100-240VAC
Output:	15V 4.8A 72W
Efficiency:	88% Min
Energy star rate:	Energy star VI
Ripple and noise:
Turn On Delay time:
safety protection:	over voltage, over current, over temperature, over load protection
leakage current:	<5mA
dc cable length:	1.2-4.0 meters
operating temperature:	0°C----+60°C
Certificates:	CE GS TUV UL CUL FCC ROHS RCM PSE C-TICK KC
Application:	CCTV camera, LCD/LED monitor, mobile phone, pos machine, medical device, led strip, led light, massage armchair, Motor device etc...

MODEL LIST


12~18W DESKTOP SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet Type
SW-00090100-S10	100-240V AC	9W	9V	1A	C8
SW-00090150-S10	100-240V AC	24W	9V	1.5A	C8
SW-00090200-S10	100-240V AC	24W	9V	2A	C8
SW-00120100-S10	100-240V AC	27W	12V	1A	C8
SW-00120150-S10	100-240V AC	30W	12V	1.5A	C8
S W-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
	24V, YYY=001-600, means the output current is 0.01A-6A) .
	UL number: E352029

24W~36W DESKTOP SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet Type
SW-00240200-S10	100-240V AC	24W	12V	2A	C8,C6,C14
SW-00150160-S10	100-240V AC	24W	15V	1.6A	C8,C6,C14
SW-00240100-S10	100-240V AC	24W	24V	1A	C8,C6,C14
SW-00090300-S10	100-240V AC	27W	9V	3A	C8,C6,C14
SW-00240125-S10	100-240V AC	30W	24V	1.25A	C8,C6,C14
SW-00300100-S10	100-240V AC	30W	30V	1A	C8,C6,C14
S W-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
	24V, YYY=001-600, means the output current is 0.01A-6A) .
	UL number: E352029


36W~65W DESKTOP SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet
SW-00090400-S10	100-240V AC	3 6W	9 V	4 A	C8,C6,C14
SW-00090500-S10	100-240V AC	4 5W	9 V	5 A	C8,C6,C14
SW-00090600-S10	100-240V AC	5 4W	9 V	6 A	C8,C6,C14
SW-00120300-S10	100-240V AC	3 6W	12V	3A	C8,C6,C14
SW-00120400-S10	100-240V AC	4 8W	12V	4 A	C8,C6,C14
SW-00120500-S10	100-240V AC	60W	12V	5A	C8,C6,C14
SW-00150300-S10	100-240V AC	45W	15V	3A	C8,C6,C14
SW-00150400-S10	100-240V AC	60W	15V	4A	C8,C6,C14
SW-00190200-S10	100-240V AC	38W	19V	2A	C8,C6,C14
SW-00190300-S10	100-240V AC	48W	19V	3A	C8,C6,C14
SW-00190316-S10	100-240V AC	60W	19V	3.16A	C8,C6,C14
SW-00190342-S10	100-240V AC	65W	19V	3.42A	C8,C6,C14
SW-00240200-S10	100-240V AC	48W	24V	2A	C8,C6,C14
SW-00240250-S10	100-240V AC	60W	24V	2.5A	C8,C6,C14
SW-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9-
	24V, YYY=001-600, means the output current is 0.01A-6A) .
	UL number: E352029

72W~96W SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet
SW-00120600-S10	100-240V AC	72 W	12 V	6 A	C8,C6,C14
SW-00120700-S10	100-240V AC	84 W	12 V	7 A	C8,C6,C14
SW-00240300-S10	100-240V AC	72 W	24 V	3 A	C8,C6,C14
SW-00240400-S10	100-240V AC	96 W	24V	4A	C8,C6,C14
SW-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 meansoutput voltage is 9-
	24V, YYY=001-600, means the output current is 0.01A-6A) .
	UL number: E352029

9 6~120W SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet
SW-00120800-S10	100-240V AC	960 W	12 V	8 A	C8,C6,C14
SW-00120830-S10	100-240V AC	100 W	12 V	8.3 A	C8,C6,C14
SW-00240500-S10	100-240V AC	120 W	24 V	5 A	C8,C6,C14
SW-00300300-S10	100-240V AC	120 W	30V	4A	C8,C6,C14
SW-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
SW-00XXXYYY-S10	24V, YYY=001-600, means the output current is 0.01A-6A) .
UL number: E352029

Drawing1

12-18Watts SERIES:

24-36W atts SERIES:

36-65Watts SERIES:

72-75Watts SERIES:

75W-120Watts SERIES:

Safety Standards

EMC Stadnards:

GB9254	GB17625.1	GB13837	FCC-Part15
EN55022	EN55024	CISPR22	EN 60950-4-4
EN 60950-3-2	EN 60950-3-3	EN 60950-4-2	EN 60950-4-3
EN 60950-4-5	EN 60950-4-6	EN 60950-4-8	EN 60950-4-11

Safety Standards:

Type	Country	Standard	Type	Country	Standard
CCC	China	GB4943	CE	Europe	EN 60950-1
CCC	China	GB8898	CB	CB	IEC 60065
UL/CUL	USA	UL 60950-1	RCM	Australia	AS/NZ 60950-1
KC	Korea	K60950	GS/TUV	German	EN 60950-1
