Quick Details
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Cargo
-
Gross Vehicle Weight:
-
15001-20000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Overseas Call Centers, Online support
-
Place of Origin:
-
Shandong, China
-
Cargo Tank Dimension:
-
7200x2300x600mm
-
Product name:
-

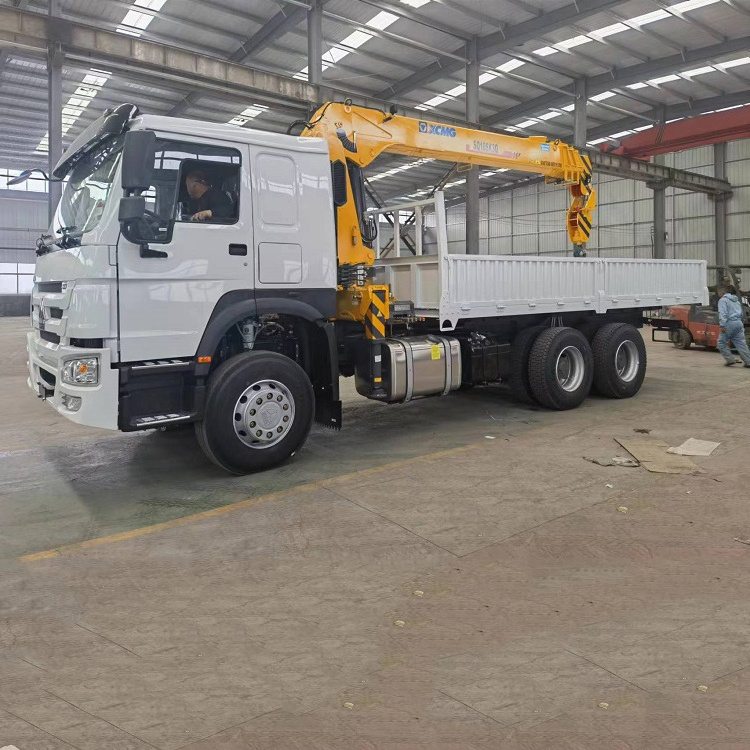

15 ton truck crane
-
Keywords:
-
crane for truck
-
Brand:
-
SIONTRUK HOWO
-
Driving type:
-
Left Hand Driving
-
Tire:
-
12.00R20-18PR
-
Engine:
-
WP12.400E22
-
Color:
-
Customer's Request
-
Transmission:
-
HW19710
-
MOQ:
-
1 Unit
-
Loading capacity:
-
31-40 Ton
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Construction materials transportation
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Cargo
-
Gross Vehicle Weight:
-
15001-20000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Overseas Call Centers, Online support
-
Place of Origin:
-
Shandong, China
-
Cargo Tank Dimension:
-
7200x2300x600mm
-
Product name:
-
15 ton truck crane
-
Keywords:
-
crane for truck
-
Brand:
-
SIONTRUK HOWO
-
Driving type:
-
Left Hand Driving
-
Tire:
-
12.00R20-18PR
-
Engine:
-
WP12.400E22
-
Color:
-
Customer's Request
-
Transmission:
-
HW19710
-
MOQ:
-
1 Unit
-
Loading capacity:
-
31-40 Ton
Recommend Products
Product Description
|
Engine
|
WP10.380E22，4-stroke,direct injection，turbocharged and intercooled
|
|
|
|
|||
|
Displacement
|
9.726L
|
|
|
|
|||
|
Transmission
|
HW19710, 10 forward and 2 reverse, manual
|
|
|
|
|||
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
|
|
|||
|
Front Axle
|
VGD95 (9500Kg)
|
|
|
|
|||
|
Rear Axles
|
HC16 (2x16000Kg) Ratio: 4.8
|
|
|
|
|||
|
Chassis
|
Enhanced version of multiple-leaf spring (Front 10 pieces, Rear 12 pieces)
|
|
|
|
|||
|
Fuel tank
|
With one 300 L fuel tank with locking fuel cap
|
|
|
|
|||
|
Steering
|
ZF power steering, model ZF8118 , hydraulic steering with power assistance
Ratio: 22.2-26.2 |
|
|
|
|||
|
Brakes
|
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS (Optional) |
|
|
|
|||
|
Wheel & Tires
|
Rims width: 8.5
Tires : 12.00R20 |
|
|
|
|||
|
Cab
|
HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3
speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap. With air conditioner (optional) |
|
|
|
|||
|
Electrics
|
Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
|
|
|||
|
Upper（Crago with Crane）
|
7200x2300x600mm, bottom 3mm, side 1.5mm；
SQ12SK3Q XCMG 12T straight-arm truck mounted crane
|
|
|
|
|||
|
Dimensions in mm
|
Wheel base
Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) |
|
4625+1350
2022 1830 1500 1670 19 26 |
|
|||
|
Weight in kg
|
Net weight
Maximum load mass Front axle loading capacity Rear axle loading capacity |
|
14000
30000 9000 16000×2 |
|
|||
|
Performance
|
Maximum driving speed(km/h)
Maximum grade ablility (%) Minimum ground clearance(mm) Minimum turning circle(m) |
|
78
35 290 15 |
|
|||
Details Images
Packing & Delivery
FACTORY
Customer Photos
FAQ
1. How to ship?
1). FOB, CIF terms, we will effect shipment and furnish the master bill of lading issued by shipping line.
2). FOB items, buyer should nominate shipping line or shipping agency in China.
3). Shipped by train, we will discuss with buyer to get agreement on details.
2. How about the quality?
1). Best quality tires.
2). Top 1 brand in China, top 8 brand in the world.
3. How about the delivery?
If the products you need are all stock available, we will arrange shipment within 3-5 days, once receiving your down payment. If the products you need is out of stock, we will arrange production asap, normally, the shipment will be effected within 25 days.
1). FOB, CIF terms, we will effect shipment and furnish the master bill of lading issued by shipping line.
2). FOB items, buyer should nominate shipping line or shipping agency in China.
3). Shipped by train, we will discuss with buyer to get agreement on details.
2. How about the quality?
1). Best quality tires.
2). Top 1 brand in China, top 8 brand in the world.
3. How about the delivery?
If the products you need are all stock available, we will arrange shipment within 3-5 days, once receiving your down payment. If the products you need is out of stock, we will arrange production asap, normally, the shipment will be effected within 25 days.
4.
What about the payment terms is acceptable?
1).
T/T : 30% T/T in advance deposit, 70% T/T in balance before delivery.
2). Letter of credit: 100% irrevocable letter of credit.
2). Letter of credit: 100% irrevocable letter of credit.
