Rock QM 5L/15LPU Roll Mill Jar+Zirconia/Agate Ball Fine Roll Ball Grinder for Grinding Pigment

Rock QM 5L/15LPU Roll Mill Jar+Zirconia/Agate Ball Fine Roll Ball Grinder for Grinding Pigment

FOB Reference Price: Get Latest Price

≥1 Sets

US $680

≥10 Sets

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangxi, China

Brand Name:: wkd

Weight (KG):: 32 KG

Product name:: Lab Roll Ball Mill

Feeding Size:: 1-10mm

Discharge Size:: 300-500mesh

Range of Spindle Speed(r.p.m):: 60-570

Product Type:: Powder Grinding

Single Jar Max Loading:: 35kg

Installation:: Engineer's Guide

Pay Terms:: TT,Credit Card, Westurn Union,PayPal

Quick Details

Output (kg/h):: 35 - 350 kg/h

Feeding Size (mm):: 0 - 3 mm

Output Size (mesh):: 0 - 300 mesh

Place of Origin:: Jiangxi, China

Brand Name:: wkd

Weight (KG):: 32 KG

Product name:: Lab Roll Ball Mill

Feeding Size:: 1-10mm

Discharge Size:: 300-500mesh

Range of Spindle Speed(r.p.m):: 60-570

Product Type:: Powder Grinding

Single Jar Max Loading:: 35kg

Installation:: Engineer's Guide

Pay Terms:: TT,Credit Card, Westurn Union,PayPal

Product Overview

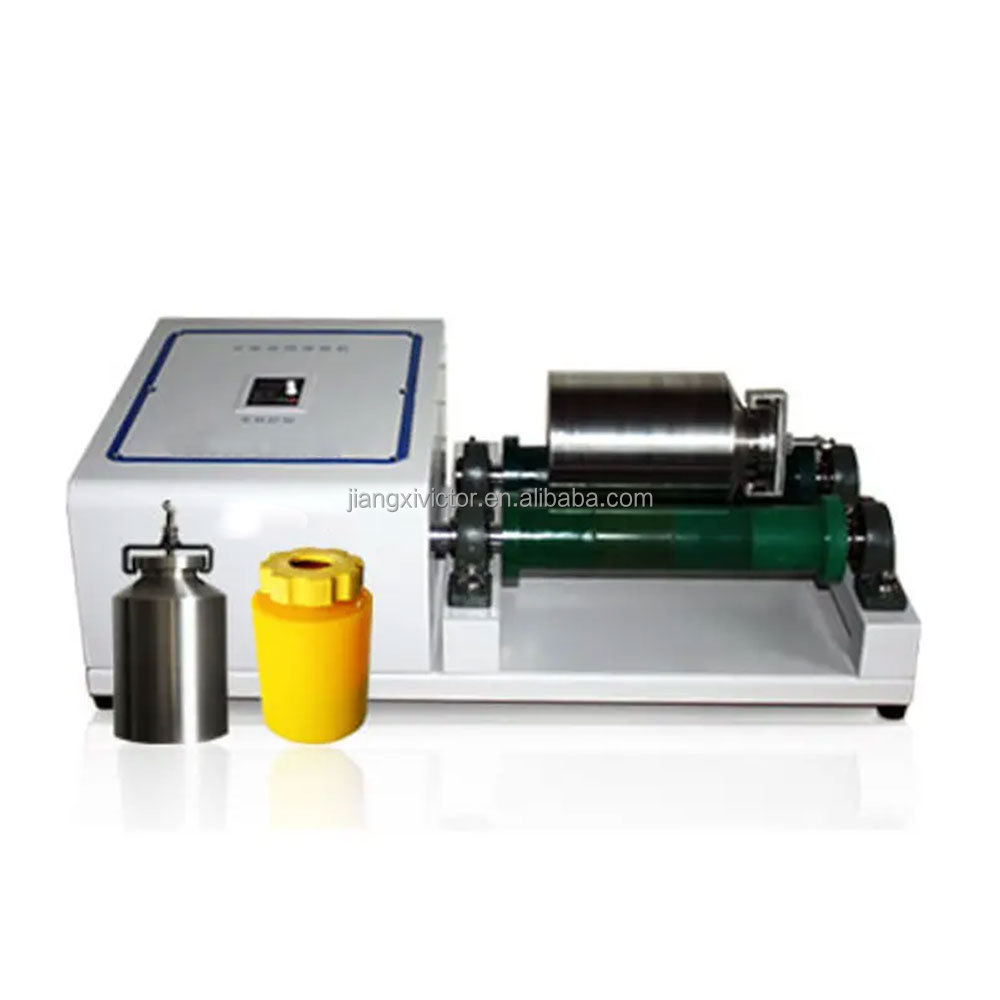

Laboratory Roll Ball Mill

Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.

FEATURES AT A GLANCE

Features

1. Compact structure, easy operation

2. High efficiency and uniform granularity

3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.

4. It is convenient to change pots and suitable for both wet and dry grinding.

Work Operational Principle

When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.

References for Matched Mill Jars and Balls

Our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

PRODUCT SPECIFICATIONS

Item No.	QM-5	QM-15
Dimension (mm)	730415260	845435270
Weight (kg)	32	43
Specifications of Motor	Y0.37-4B3	Y0.75-4B3
Specifications of Frequency Inverter	0.4kw/220V	0.75kw/220V
Range of Rotation Speed （rpm)	60-570±10	60-570±10
Valid Length of Roller (mm)	260	340
Adjustable Space Between Rollers	120	140
Max Load for Single Jar	35	80
