Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
E-pack
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600mm/800mm width
-
Weight (KG):
-
60 kg
-
Support:
-
wall thickness of the steel frame: 1.5~3.0mm
-
Caster:
-
universal caster with brake
-
Working Height:
-
(1) 45~65cm; (2) 57~86cm; (3) 75~115cm; (4) 95~160cm
-
Surface Treatment:
-
Surface Treatment
-
Idler Wheel Material:
-
Nylon, PVC, zinc surface-plating
-
Loading Capaity:
-
20-300kg/M
Quick Details
-
Power:
-
750W
-
Warranty:
-
1 Year
-
Width or Diameter:
-
600mm/800mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
E-pack
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600mm/800mm width
-
Weight (KG):
-
60 kg
-
Support:
-
wall thickness of the steel frame: 1.5~3.0mm
-
Caster:
-
universal caster with brake
-
Working Height:
-
(1) 45~65cm; (2) 57~86cm; (3) 75~115cm; (4) 95~160cm
-
Surface Treatment:
-
Surface Treatment
-
Idler Wheel Material:
-
Nylon, PVC, zinc surface-plating
-
Loading Capaity:
-
20-300kg/M
Products Description

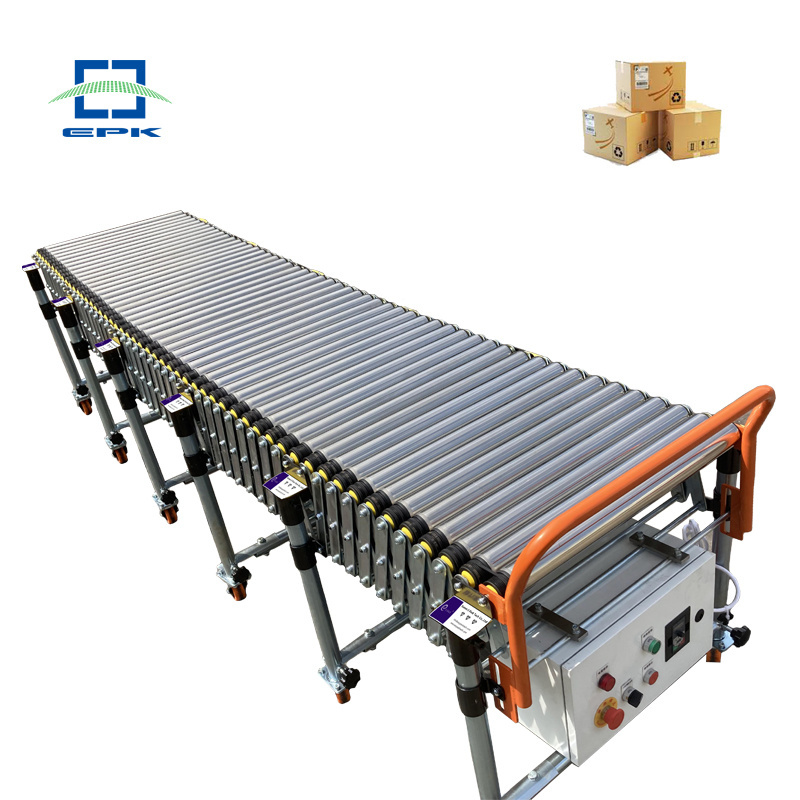

Powered Expanable Roller Conveyor
The poweed roller conveyor has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like. It has the characteristics of large transport volume, high speed, light operation, and the ability to realize the transmission of multiple lines at the same time.It is ideally suited for truck loading and unloading, distribution centers, packaging, portable assembly lines, shipping and receiving operations.
Specification
|
Product size
|
standard width: 600mm/800mm
|
|
Support
|
wall thickness of the steel frame: 1.5~3.0mm
|
|
Roller Material
|
50 diameter, 201 stainless steel, 9pcs/m
|
|
Retractable Slice
|
bending structure, steel plate stamped part, large loading capacity, bolted connection
|
|
Caster
|
universal caster with brake, stable conveying
|
|
Driving Belt
|
standard brand: GATES V-ribbed belt
|
|
Motor
|
standard brand: MAILI 120W, 220V, customizable
|
|
Line Speed
|
0~30m/min, one motor every 1.2m, all synchronized
|
|
Working Length
|
unlimited
|
|
Working Width
|
standard width: 600mm/800mm, customizable
|
|
Working Height
|
(1) 57~86cm; (2) 75~115cm; (3) 95~160cm
|
We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.
Application of telescopic roller conveyor
Roller conveyor is suitable for conveying the material which has a flat bottom. It has advantages of large conveying capacity,high speed , strong load capacity. It is easy to connect roller conveyors. Several roller lines and other conveying devices can be assembled into complicated logistics transport system to meet the technical requirements in many fields. The roller conveyor is classified by form of layout: horizontal conveying, turning conveying, incline conveying.
Features & Advantages
2.Line speed is adjustable from 0 to 30 meters per minute. Start/stop controls at both ends;
3.Self Tracking;
4.Cartons follow the twists and turns of the conveyor path without using engineered curves;
5.Adjustable Height;
6.Heavy-duty square tubing legs offer longer service life and stability;
7.Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and locking nuts;
8.Castors with Brakes;
9.Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.
