- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
220v/380v
-
Dimension(L*W*H):
-
1800*930*2200mm
-
Weight (KG):
-
500
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Spray Dryer Machine
-
Name:
-
Industrial Drying Machine
-
Keywords:
-
Spraydry
-
Function:
-
High Efficiency Drying
-
Usage:
-
Food Used
-
Advantage:
-
Easy Operation High Efficiency
-
Heating source:
-
Electricity Steam Oil Gas
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hengmai
-
Voltage:
-
220V/380V
-
Power:
-
220v/380v
-
Dimension(L*W*H):
-
1800*930*2200mm
-
Weight (KG):
-
500
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Spray Dryer Machine
-
Name:
-
Industrial Drying Machine
-
Keywords:
-
Spraydry
-
Function:
-
High Efficiency Drying
-
Usage:
-
Food Used
-
Advantage:
-
Easy Operation High Efficiency
-
Heating source:
-
Electricity Steam Oil Gas
Product Overview

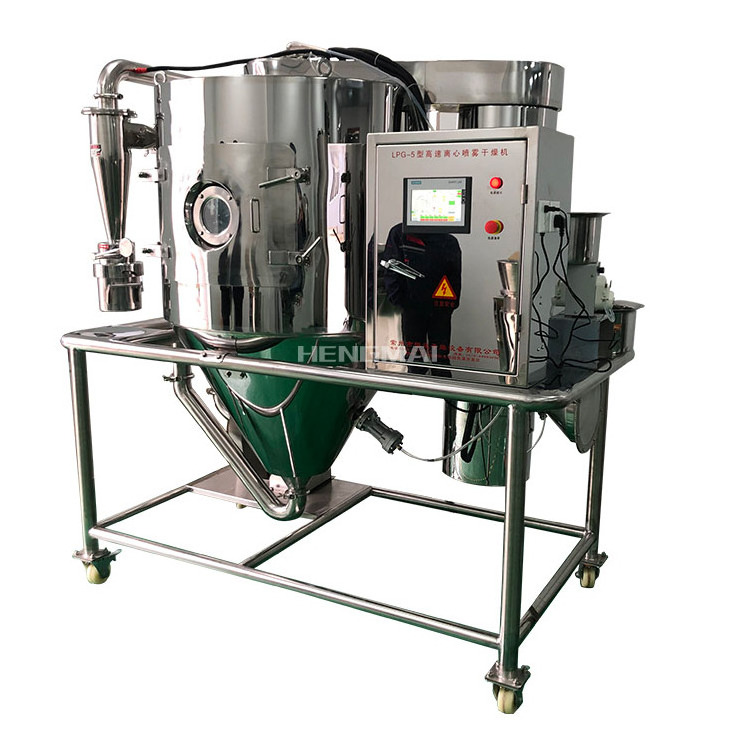

LPG Series Centrifugal Spray Dryer
Spray drying is a widely used technology in liquid forming and drying industry. It is suitable for producing powder and granular solid products from solution, emulsion, suspension and paste liquid raw materials. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet the standards.
Main Features
1.The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air
flow, 95% - 98% of water can be evaporated instantly, and the drying time is only a few seconds. It is especially suitable for the drying of heat sensitive materials.
2.The product has good uniformity, fluidity and solubility, high purity and good quality.
3.The production process is simple and easy to operate and control. The liquid with moisture content more than 90(40% - 60% for special materials) can be dried into powder products at one time. After drying, there is no need to crush and screen, which reduces the production process and improves the product purity. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management.
flow, 95% - 98% of water can be evaporated instantly, and the drying time is only a few seconds. It is especially suitable for the drying of heat sensitive materials.
2.The product has good uniformity, fluidity and solubility, high purity and good quality.
3.The production process is simple and easy to operate and control. The liquid with moisture content more than 90(40% - 60% for special materials) can be dried into powder products at one time. After drying, there is no need to crush and screen, which reduces the production process and improves the product purity. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management.
Principle
1.Most of the hot air circulates in the tank with high thermal efficiency and energy saving.
2.Using the forced ventilation, adjustable air plate is set in the box, and the material is dried evenly.
3.Wide selection of heat source, such as steam, hot water, electricity, far-infrared.
4.Low noise, balanced operation, automatic temperature control, convenient installation and maintenance.
5.Wide range of applications, drying series of other driers have their specific uses, such as dehydrated vegetables drying machine suitable for dehydration vegetables drying, and hot air drying oven can dry all kinds of materials, is a general drying equipment.
2.Using the forced ventilation, adjustable air plate is set in the box, and the material is dried evenly.
3.Wide selection of heat source, such as steam, hot water, electricity, far-infrared.
4.Low noise, balanced operation, automatic temperature control, convenient installation and maintenance.
5.Wide range of applications, drying series of other driers have their specific uses, such as dehydrated vegetables drying machine suitable for dehydration vegetables drying, and hot air drying oven can dry all kinds of materials, is a general drying equipment.
|
Model
|
LPG-5
|
LPG-25
|
LPG-50
|
LPG-150
|
LPG-200-2000
|
||||
|
Inlet temperature
|
140-350 Autocontrol
|
|
|
|
|
||||
|
Outlet temperature
|
80-90
|
|
|
|
|
||||
|
Max. evaporation of water(kg/h)
|
5
|
25
|
50
|
150
|
200-2000
|
||||
|
Centrifugal spray drive type
|
Compressed air drive
|
Mechanical drive
|
|
|
|
||||
|
Max.speed(rpm)
|
25000
|
18000
|
18000
|
15000
|
8000-15000
|
||||
|
Spray tray diameter(mm)
|
50
|
120
|
120
|
150
|
180-240
|
||||
|
Heat source
|
Electric
|
Steam Electricity
|
Steam, Electricity,Oil, Gas,Hot stove
|
|
|
||||
|
Max. electric heating power (kw)
|
9
|
36
|
72
|
99
|
\
|
||||
|
Dimensions(L*W*H)m
|
1.8*0.93*2.2
|
3*2.7*4.26
|
3.5*3.5*4.8
|
5.5*4*7
|
According to the actual situation
|
||||
|
Dry powder recovery
|
≥95%
|
|
|
|
|
||||
Applications
Product packaging and delivery
Why Choose Us
Changzhou Hengmai Drying Equipment Co., Ltd.
Our company located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
