Quick Details
-
Features:
-
Easy operation
-
Production Capacity:
-
1-2m/min
-
Dimension(L*W*H):
-
1300x720x1100 mm
-
Power:
-
75kw
-
Voltage:
-
110v
-
Weight (KG):
-
4800
-
Product name:
-
Road Asphalt Recycler
-
Suitable for:
-
Asphalt Contractors
-
Machine type:
-
Road Maintenance Machine
-
Function:
-
Pothole Repair
-
Usage:
-
Manual
-
Driving Mode:
-
Trailer
-
Key words:
-
Pavement Preventive Maintenance
-
Name:
-
Cold Milling Machine
-
Model:
-
XM503
-
Hotbox Capacity:
-
4800kg
Quick Details
-
Place of Origin:
-
HEN
-
Brand Name:
-
maxizm
-
Application:
-
Road Kerb
-
Features:
-
Easy operation
-
Production Capacity:
-
1-2m/min
-
Dimension(L*W*H):
-
1300x720x1100 mm
-
Power:
-
75kw
-
Voltage:
-
110v
-
Weight (KG):
-
4800
-
Product name:
-
Road Asphalt Recycler
-
Suitable for:
-
Asphalt Contractors
-
Machine type:
-
Road Maintenance Machine
-
Function:
-
Pothole Repair
-
Usage:
-
Manual
-
Driving Mode:
-
Trailer
-
Key words:
-
Pavement Preventive Maintenance
-
Name:
-
Cold Milling Machine
-
Model:
-
XM503
-
Hotbox Capacity:
-
4800kg
Brand new 92kw Mini Asphalt Cold Milling Machine XM503 with good performance
Contact way
Products Description

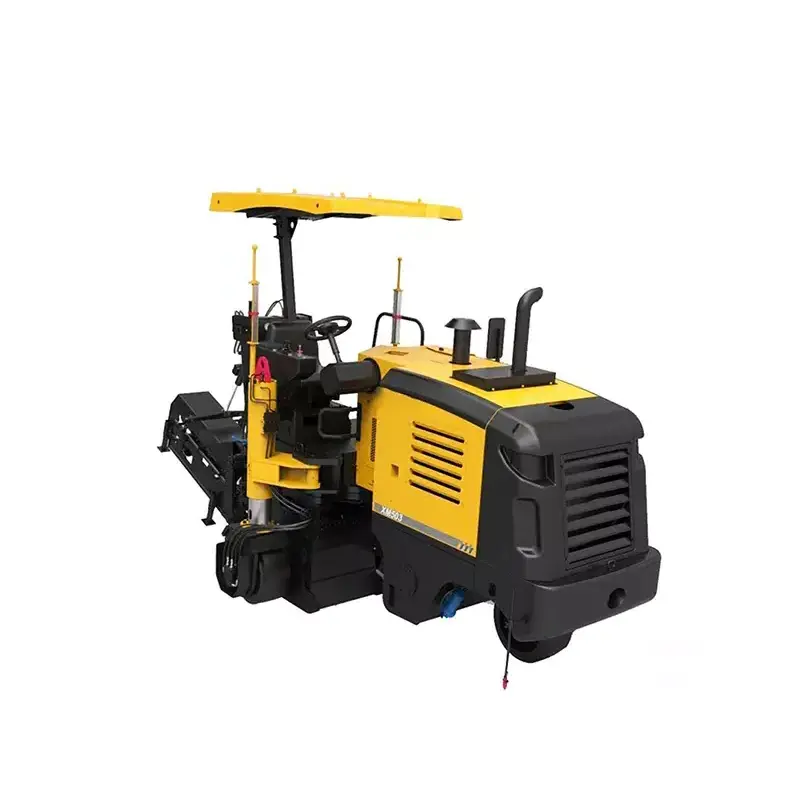

XM503 0.5m 92kw Mini Asphalt Cold Milling Machine Price
XM503 road milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of
municipal roads and as the auxiliary construction implement for large milling machines.
It can realize the small-area digging and renovation of asphalt con- crete pavements, including highways, downtown roads,
airports, cargo yards, and parking lots, and can be used for the removal of road bulges, asphalt ripples, overlapping curves, and
tracks and for the scuffing of cement roads and the milling of pavement jumps. It can realize the milling along edges and manhole
covers. It can realize the road crushing function if the optional hydraulic pickaxe is installed and realize the milling of
roadside rumble strips if the optional rumble wheel is installed.
Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and
good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.
Performance Characteristics:
* Traveling system: Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed
change, and high and low gears. The rear wheels adopt independently suspended support wheels. The right rear wheel can swing
inward to ease the milling along edges.
* Milling system: The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling. The imported milling
cutter heads guarantee the working life of milling cutter.
* Control of milling depth: The left and right rear outriggers can be vertically adjusted to allow the wedged milling. The rear
outriggers are installed with depth indicator to indicate the milling depth. This machine can be installed with optional automatic
leveling system.
* Steering system: The full-hydraulic single-front-wheel steering features small steering radius and flexible steering.
* Sprinkling system: The sector-shaped water spray nozzles spray water to the milling cutter heads to cool the milling cutter and
at the same time reduce the diffusion of dusts during milling. The high capacity water tank can realize the longer working time of
machine without interruption. The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.
XM503 road milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of
municipal roads and as the auxiliary construction implement for large milling machines.
It can realize the small-area digging and renovation of asphalt con- crete pavements, including highways, downtown roads,
airports, cargo yards, and parking lots, and can be used for the removal of road bulges, asphalt ripples, overlapping curves, and
tracks and for the scuffing of cement roads and the milling of pavement jumps. It can realize the milling along edges and manhole
covers. It can realize the road crushing function if the optional hydraulic pickaxe is installed and realize the milling of
roadside rumble strips if the optional rumble wheel is installed.
Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and
good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.
Performance Characteristics:
* Traveling system: Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed
change, and high and low gears. The rear wheels adopt independently suspended support wheels. The right rear wheel can swing
inward to ease the milling along edges.
* Milling system: The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling. The imported milling
cutter heads guarantee the working life of milling cutter.
* Control of milling depth: The left and right rear outriggers can be vertically adjusted to allow the wedged milling. The rear
outriggers are installed with depth indicator to indicate the milling depth. This machine can be installed with optional automatic
leveling system.
* Steering system: The full-hydraulic single-front-wheel steering features small steering radius and flexible steering.
* Sprinkling system: The sector-shaped water spray nozzles spray water to the milling cutter heads to cool the milling cutter and
at the same time reduce the diffusion of dusts during milling. The high capacity water tank can realize the longer working time of
machine without interruption. The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.
Performance Parameters
|
Item
|
Unit
|
XM503
|
|
Milling width
|
mm
|
500
|
|
Maximum milling depth
|
mm
|
180
|
|
Tool nose distance
|
mm
|
15
|
|
Number of tools
|
|
54
|
|
Rotor diameter with tool
|
|
660
|
|
engine model
|
|
SC4H-C125
|
|
Rated speed
|
rpm
|
2200
|
|
Rated power
|
Kw
|
92
|
|
Fuel tank
|
L
|
140
|
|
Water tank
|
L
|
300
|
|
Working speed
|
m/min
|
0-40
|
|
Walking speed
|
Km/h
|
0-6
|
|
Theoretical climbing ability
|
%
|
50
|
|
Discharge maximum height
|
mm
|
1200
|
|
Theoretical discharge capacity
|
m3/h
|
42
|
|
Total weight
|
Kg
|
≤7800/7300
|
|
Minimum milling radius
|
mm
|
350
|
|
Ground clearance
|
mm
|
180
|
