dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood
dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood

dpdt industrial 6gang mini waterproof latching push button switch 12mm rgb led for kitchen hood

FOB Reference Price: Get Latest Price
≥50 Pieces
US $2.1
≥500 Pieces
US $2
≥1000 Pieces
US $1.89
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
A4127.8116.28
IP level:
IP67
Function:
latching
Mounting hole diameter:
12mm
Head shape:
2#
Button color can be selected:
Yellow
Style:
Round
Packing:
500pcs/box

Quick Details

Protection Level:
IP67
Max. Current:
3A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
A4127.8116.28
IP level:
IP67
Function:
latching
Mounting hole diameter:
12mm
Head shape:
2#
Button color can be selected:
Yellow
Style:
Round
Packing:
500pcs/box
Products Description

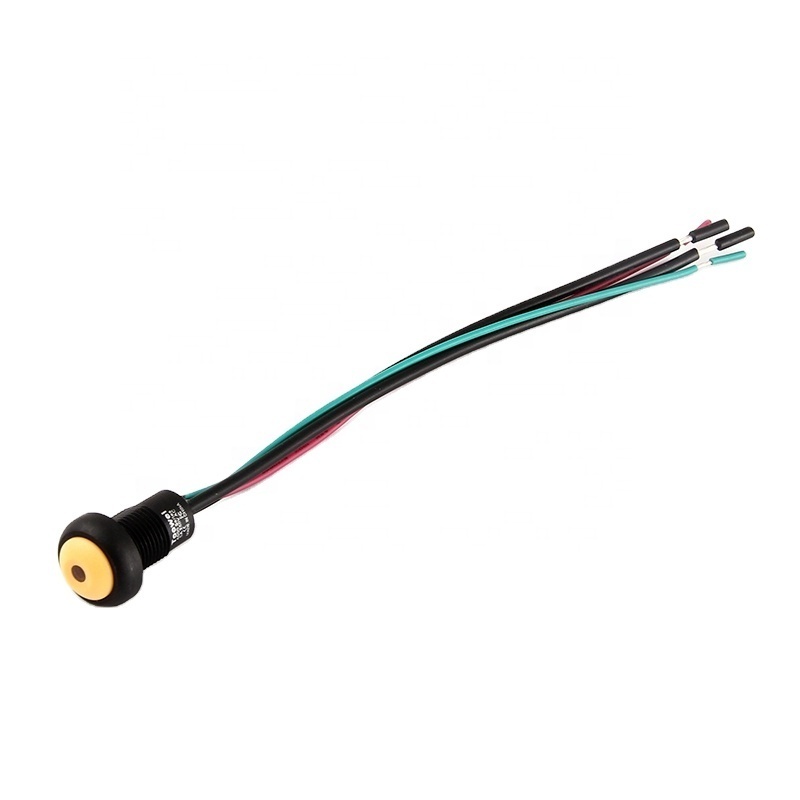

A4126 series waterproof push button switch, protection degree reach IP67, installation size is 12mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two differentkinds. If equip with LED light, colour can be customised based on the customer's request. It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.
Part Number
4127.8116.28
Function
latching
Dimension
12MM
Button Color
Yellow
Shell material
Black plastic
Details Images
Product Paramenters

Technical Paramenter

1. Operating force ≤6Nf, best range is 5Nf~6Nf, Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12.Latching， With light, Normally open
