Quick Details
-
Place of Origin:
-
Guangdong, China
-
Connector:
-
N-female
-
PIM (IM3):
-
<-155dBc @2x43dBm
-
Gain:
-
9dBi
-
VSWR:
-
≤2.0
-
Working Temperature:
-
-40~60 °c
Quick Details
-
Type:
-
Yagi Antenna
-
Brand Name:
-
ZD
-
Model Number:
-
ZD-GSM-BM5
-
Place of Origin:
-
Guangdong, China
-
Connector:
-
N-female
-
PIM (IM3):
-
<-155dBc @2x43dBm
-
Gain:
-
9dBi
-
VSWR:
-
≤2.0
-
Working Temperature:
-
-40~60 °c

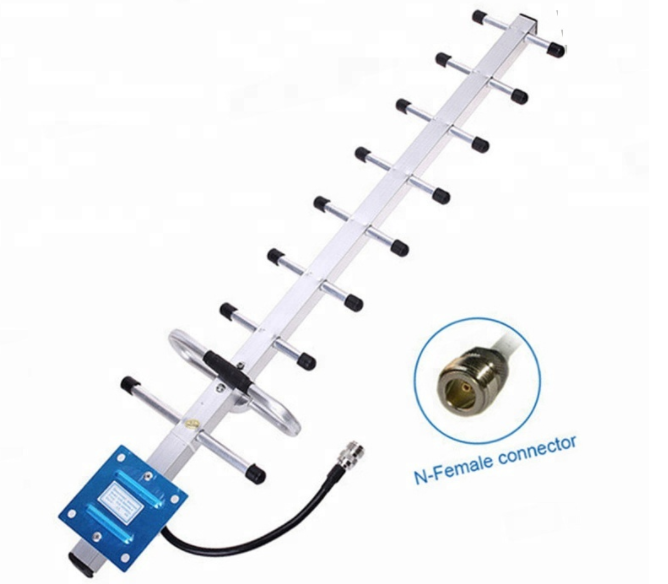

900-1800MHz Outdoor directional yagi antenna 5 elements 9dbi GSM antenna for signal booster repeater
ELECTRICAL SPECIFICATIONS
Frequency Range 900-1800Mhz
Gain 9dbi
V.S.W.R ≤1.5
Input Impedance 50ohm
Horizontal 3dB Beam Width
30
°
Vertical 3dB Beam Width
30
°
Maximum Power Input-watts 50W
Polarization vertical or horizontal
Lighting Protection DC Ground
Maximum wind speed 200m/s
MECHANICAL SPECIFICATIONS
Connector Type N-female
Net Weight 544g
Radiating Element Material Aluminum Alloy
Element 5 Units
Feature :
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal
Application :
CDMA,GSM system
Point-to-point,point-to-multipoint system
Wireless bridging,client termination antenna
|
Electrical Specifications |
|
| Frequency range ( MHz ) | 900-1800 |
| Bandwidth ( MHz ) | 154 |
| Gain ( dBi ) | 9 |
| Element | 5 |
| Half -power beam width ( ° ) | H : 68 V : 60 |
| Front-to-back ratio ( dB ) | ≥16 |
| VSWR | ≤1.5 |
| Input Impedance ( Ω ) | 50 |
| Polarization | Horizontal or Vertical |
| Maximum input power ( W ) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N female or others |
| Mechanical Specifications | |
| Dimensions(mm) | 350*190*54 |
| Cable length ( m ) | 0.25 |
| Antenna weight ( kg ) | 0.4 |
| Operating temperature ( °c ) | -40 ~ 60 |
| Rated Wind Velocity ( m/s ) | 60 |
| Clamp | U-shape |
| Mounting hardware ( mm ) | Φ35 ~ Φ50 |
