Quick Details
-
Dimensions:
-
40-160
-
Weight (KG):
-
110 KG
-
Power (kW):
-
2.65
-
Name:
-
hydraulic butt fusion welding machine
-
Size:
-
40mm-160mm
-
Color:
-
Red or customized
-
Keyword:
-
Electrofusion Pipe Welding Machine
-
Welding material:
-
PP HDPE PE PVC EVA
-
Frenquency:
-
50/60HZ
-
Package:
-
Wooden Box
-
Operation:
-
Simple
-
Application:
-
Pipe Welding
-
OEM:
-
Accepted
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Frequency:
-
50/60HZ
-
Dimensions:
-
40-160
-
Weight (KG):
-
110 KG
-
Power (kW):
-
2.65
-
Name:
-
hydraulic butt fusion welding machine
-
Size:
-
40mm-160mm
-
Color:
-
Red or customized
-
Keyword:
-
Electrofusion Pipe Welding Machine
-
Welding material:
-
PP HDPE PE PVC EVA
-
Frenquency:
-
50/60HZ
-
Package:
-
Wooden Box
-
Operation:
-
Simple
-
Application:
-
Pipe Welding
-
OEM:
-
Accepted
Trade Assurance order is available here.
You will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.
You will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.
Product Description
Hot melt welding machine is automatic butt joint, light, firm, easy to carry and other characteristics of butt joint machine, used for PE, PP and other plastic pipe and pipe welding, widely used in high-pressure water, gas, chemical and other liquid pipeline welding.
|
item
|
40-160
|
|
Pipe size(mm)
|
40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm
|
|
Heating plate Max.temp
|
270℃
|
|
Max. tolerance of welding jointing
|
0.3mm
|
|
Max. working pressure hydraulic station
|
6Mpa
|
|
Motor power/voltage of hydraulic station
|
0.75KW/220V
|
|
Power/voltage of heating plate
|
1.6KW/220V
|
|
Power/voltage of milling cutter
|
1KW/220V
|
|
Total Power
|
3.35KW
|
|
Net weight
|
90kg
|
|
Gross weight
|
110kg
|
Details
Application

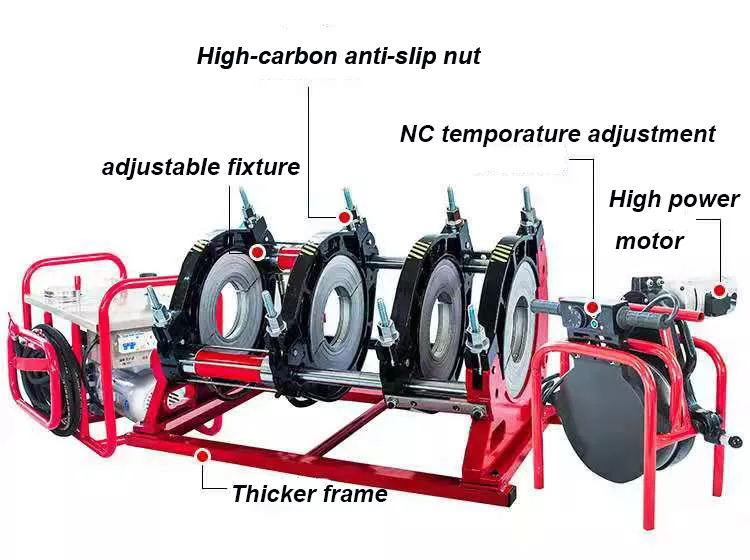

The main machine is equipped with two sides double clamping devices, its function is realized by two hydraulic cylinders, equipped
with a quick joint without leakage, the fuselage can be fixed by the displacement of the gusset plate, so as to realize the
welding of straight pipe and T-type pipe fitting on the welder. The hydraulic system is light and open structure, which makes it
easy to maintain.
