Quick Details
-
Support Layers::
-
Polypropylene
-
Inner core::
-
Polypropylene/SUS
-
Outer Cage, End caps::
-
Polypropylene
-
Seal Method::
-
Thermal Bonded, No Adhesives
-
O-rings/gaskets::
-
Silicone, Nitrile, EPDM, Viton, etc
-
Outer Diameter:
-
56mm
-
Length:
-
70mm (Including adapter) 125mm(Including adapter)
-
Filtration Area(m2):
-
0.12 m2(70mm length) 0.23 m2(132mm length)
-
Normal Operating Temperature::
-
Up to 60℃ (140℉)
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kosma
-
Filter Media::
-
PES/PP/PTFE/NYLON66/PVDF
-
Support Layers::
-
Polypropylene
-
Inner core::
-
Polypropylene/SUS
-
Outer Cage, End caps::
-
Polypropylene
-
Seal Method::
-
Thermal Bonded, No Adhesives
-
O-rings/gaskets::
-
Silicone, Nitrile, EPDM, Viton, etc
-
Outer Diameter:
-
56mm
-
Length:
-
70mm (Including adapter) 125mm(Including adapter)
-
Filtration Area(m2):
-
0.12 m2(70mm length) 0.23 m2(132mm length)
-
Normal Operating Temperature::
-
Up to 60℃ (140℉)

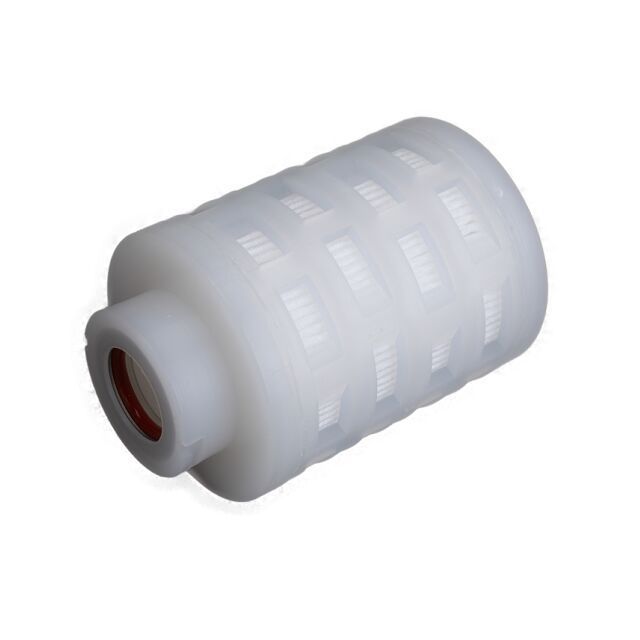

0.2 micron air filter cartridge PTFE Membrane Sartorius Mini Filter Cartridge
These cartridges are designed for critical filtration of compressed air/gas, vent air. Hydrophobic PP, PTFE, PVDF membranes are available for choice,
Each cartridge is individually tested using bubble point method before it is released from manufacture.
1. Naturally hydrophobic PTFE membrane with excellent porosity, high flow rate;
2. Absolute rating, filtration efficiency≥99.99%, Up to 0.01 micron in gas sterile filtration;
3. Low pressure drop and long service life;
4. High temperature endurance performance;
5. 100% integrity tested before final assembly;
| Materials Of Construction | Filter Media: | PP, PTFE, PVDF Membrane(Hydrophobic) | ||||
| Support Layers: | Polypropylene | |||||
| Inner core: | Polypropylene/SUS | |||||
| Outer Cage, End caps: | Polypropylene | |||||
| Seal Method: | Thermal Bonded, No Adhesives | |||||
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton | |||||
| Cartridge Dimensions | Outer Diameter | 56mm | ||||
| Length |
70mm (except end cap)
125mm(except end cap) |
|||||
| Filtration Area(m2) |
0.12 m
2
(70mm length)
0.23 m 2 (132mm length) |
|||||
| Operating Conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
| Max.Operating Temperature.: | 80℃ (176℉) at P≤1.0 bar (14psi) | |||||
| Max. Differential Pressure | ||||||
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) | |||||
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). | |||||
| PH Value compatibility: | 6-14 | |||||
| Sterilization: | Steam Sterilization for 30 minutes at 135℃(275℉) | |||||
| Cartridge Safety | Endotoxin: | <0.25 EU/ml | ||||
| Extractables: | 0.015g / 10" | |||||
ORDER INFORMATION
<
| GRADE | TYPE | FILTER MEDIA | MICRON | ADAPTER | LENGTH | O-RING / GASKET | |
| P- PHARMACEUTICAL | XF | IPS | 010-0.1um | 214 | 1-70mm | S-silicone; N-nitrile | |
| F-FOOD | DPP | 020-0.2um | 216 | 216-125mm | E-epdm ; V-Viton | ||
| E-ELECTRONIC | IPF | 045-0.45um | |||||
| DPNN | 065-0.65um | How to Order?- Example | |||||
| DHPV | 100-1um | Pharmaceutical grade; Filter Media:PES; Micron:0.1um; Length:70mm; ADAPTER: 214; O-ring: Silicone. Selection Code is: PXFIPS0102141S | |||||
| 500-5um | |||||||
| 1000-1um | |||||||
| 5000-5um | |||||||
