Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser device
-
size:
-
self-design
-
Product name:
-
Laser Engraving Equipment
-
Keywords:
-
Co2 Laser Cuting Machine
-
Color:
-
Blue-white
-
Laser power:
-
10w 20w 30w 50w
-
Function:
-
Metal Marker
-
After-sales Service Provided:
-
Online support
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
-
Laser head:
-
Sino-Galvo Scanning Head
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
PLT, DXF, BMP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser device
-
size:
-
self-design
-
Product name:
-
Laser Engraving Equipment
-
Keywords:
-
Co2 Laser Cuting Machine
-
Color:
-
Blue-white
-
Laser power:
-
10w 20w 30w 50w
-
Function:
-
Metal Marker
-
After-sales Service Provided:
-
Online support
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
-
Laser head:
-
Sino-Galvo Scanning Head
|

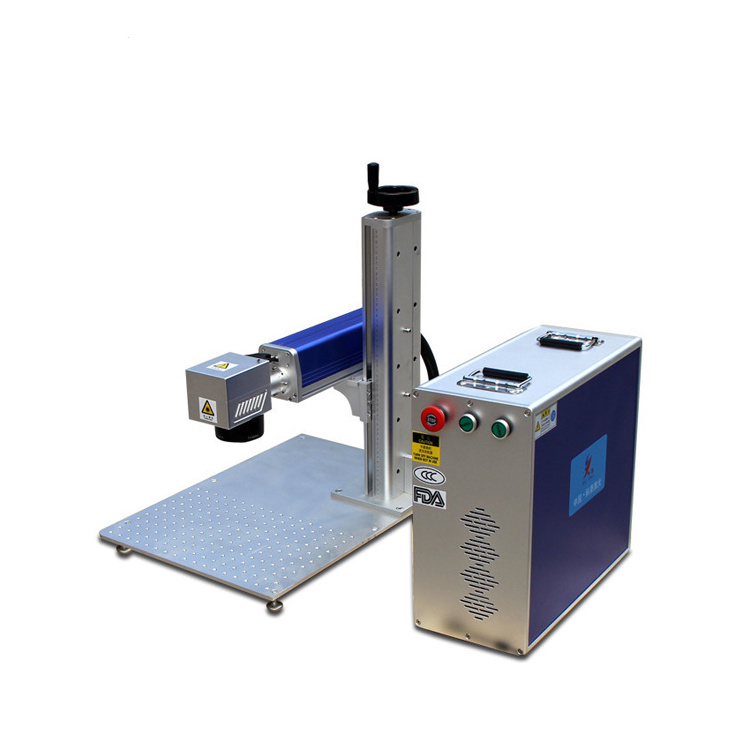

Product Specifications |
|
|
Product |
fiber marking machine |
|
Purpose |
Marking or engraving |
|
Laser |
fiber |
|
Laser Wavelength |
1000-1100nm |
|
Laser Output Power |
20W 10w 30w |
|
typical Laser Life Span |
100,000hrs |
|
Modulation frequency |
20-100kHz |
|
Max. Working Speed |
7000mm/s |
|
Galvanometer |
Yes |
|
Lens |
F-Theta Lens |
|
Working Area |
110x110mm 220x220mm, 300x300mm |
|
Beam Diameter/Quality |
M2<1.2 |
|
Working Area |
70x70mm, 110x110mm, 160x160mm, 250x250mm |
|
Repeatability |
0.01mm |
|
Positioning accuracy |
0.01mm |
|
Min Line Width |
0.01mm |
|
Marking/Cutting Depth |
0.01-0.2mm (depending on material) |
|
Control |
Ezcad2 |
|
Cooling |
Air cooled |
|
No. Axis |
2 Axis (Manual) |
|
Rotation |
Optional(Automatic only) |
|
Power supply |
AC220V, 50/60Hz, 1kVA (110-120V Optional) |
|
Controller |
Computer with marking software |
|
USB 2.0 Compatible |
YES |
|
File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
|
Max. Operating Time |
24hrs (recommend 1hr cool-down period) |
|
Dimensions |
70x55x22mm |
|
Weight (kg) |
45kg |
|
Guarantee: |
(see Ts&Cs on support page) |
|
General Guarantee |
12 Months from date of arrival at destination |
|
Laser Source |
2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series) |
|
|
20,000hrs/18 months - Smart Series |
|
|
10,000hrs/12 months - Diode Pumped |
|
|
100,000hrs/2 years - Fiber LASER |
Standard Ply-wooden case for exporting, non fumigation 2.Express and transport (or by customers' demand)
