Automatic Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of
required size,it's the first stage in the production line.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUZHOU FIRST Machinery
-
Dimension(L*W*H):
-
11500x2100x2300mm
-
Weight:
-
8500 KG
-
Capacity:
-
10-20cans/min
-
Diameter range:
-
65~180mm
-
Height:
-
70~315mm
-
Thickness:
-
0.18~0.28mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Application:
-
Chemical, Food
-
Packaging Material:
-
Metal
-
Applicable Industries:
-
Metal Packaging
-
Voltage:
-
380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUZHOU FIRST Machinery
-
Dimension(L*W*H):
-
11500x2100x2300mm
-
Weight:
-
8500 KG
-
Capacity:
-
10-20cans/min
-
Diameter range:
-
65~180mm
-
Height:
-
70~315mm
-
Thickness:
-
0.18~0.28mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Product Name:

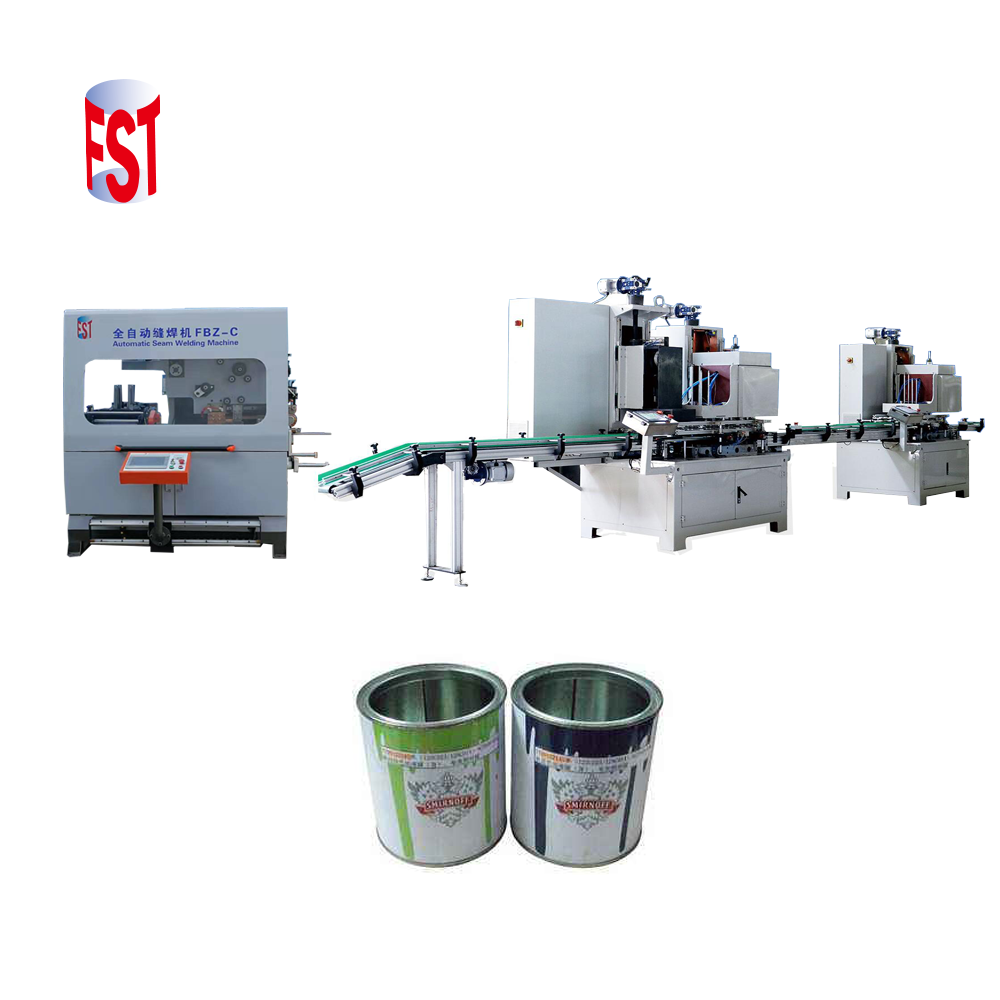

3.75L Paint Metal Pail Barrel Tin Can Making Machine Production Line
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.
The follow is 1~5liter full automatic tin can production line with productivity of 60cans/min
The follow is 1~5liter full automatic tin can production line with productivity of 60cans/min
Product Paramenters
|
Name
|
Automatic Duplex Slitting Machine
|
|
Model
|
GT-A10
|
|
Max Thickness
|
0.4mm
|
|
Max Width
|
1200x1200mm
|
|
Min Width
|
600x600mm
|
|
Power
|
15kw
|
|
First Strip
|
5 pieces
|
|
Second Strip
|
15 pieces
|
|
Net Weight
|
2000kg
|
|
Dimension
|
2500x2000x1200mm
|
Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.
|
Name
|
Automatic Can Welding Machine
|
|
Model
|
FBZ-B-60
|
|
Input Power
|
3N380V/50HZ 40KVA
|
|
Welding Speed
|
5~15m/min
|
|
Productivity
|
60cans/min
|
|
Diameter Range
|
Φ120~Φ180mm
|
|
Height Range
|
400mm
|
|
Welding Thickness
|
0.2~0.38mm
|
|
Overlap
|
0.6~0.8mm
|
|
Net Weight
|
2500kg
|
|
Dimension
|
2200x2700x2000mm
|
Chiller is use to connect with automatic canbody welder,e
xtended welding wheel service life
|
Name
|
Water Chiller
|
|
Model
|
AC-02
|
|
Cooling Capacity
|
5332kcal/h
|
|
Power
|
220V 50HZ/2025kw
|
|
Net Weight
|
100kg
|
|
Dimension
|
650x500x830
|
Automatic Bodyformers is use to given the canbody into final shape and prepared for the endseaming process.it's combine all the necessary functionsin a single machine: flanging,and seaming the bottom or top end.
|
Name
|
Automatic Sealing Machine
|
|
Model
|
RA-180
|
|
Diameter Range
|
52~180mm
|
|
Height Range
|
70~250mm
|
|
Capacity
|
60cans/min
|
|
Thickness
|
0.2~0.28mm
|
|
Air Pressure
|
0.3~0.5Mpa
|
|
Power
|
2.2kw
|
|
Net Weight
|
1300kg
|
|
Dimension
|
1800x850x1800mm
|
Our Advantages
1/ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
2/ OMRON Sensor and photoelectric switch form Japan.
3/ SMC Waterway detected flow switch from Japan.
4/ SKF bearings from Sweden.
5/ SCHNEIDER electrical appliance components from France.
6/ LG air switch,contactor and circuit breaker from South Korea.
7/ SEMIKRON & SIEMENS control thyristors from Germany.
2/ OMRON Sensor and photoelectric switch form Japan.
3/ SMC Waterway detected flow switch from Japan.
4/ SKF bearings from Sweden.
5/ SCHNEIDER electrical appliance components from France.
6/ LG air switch,contactor and circuit breaker from South Korea.
7/ SEMIKRON & SIEMENS control thyristors from Germany.
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
