Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT250V
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
125 KG
-
Marketing Type:
-
New Product 2022
-
Swing over cross slide:
-
150mm
-
Spindle taper:
-
MT4
-
Chuck diameter:
-
125 mm
-
Range of metric thread:
-
0.2-3.5mm
-
Top slide travel:
-
65mm
-
Cross slide travel:
-
115mm
-
Taper of tailstock quill:
-
MT2
Quick Details
-
Max. Length of Workpiece (mm):
-
550 mm OR 750mm
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
26
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
BT250V
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
125 KG
-
Marketing Type:
-
New Product 2022
-
Swing over cross slide:
-
150mm
-
Spindle taper:
-
MT4
-
Chuck diameter:
-
125 mm
-
Range of metric thread:
-
0.2-3.5mm
-
Top slide travel:
-
65mm
-
Cross slide travel:
-
115mm
-
Taper of tailstock quill:
-
MT2
|

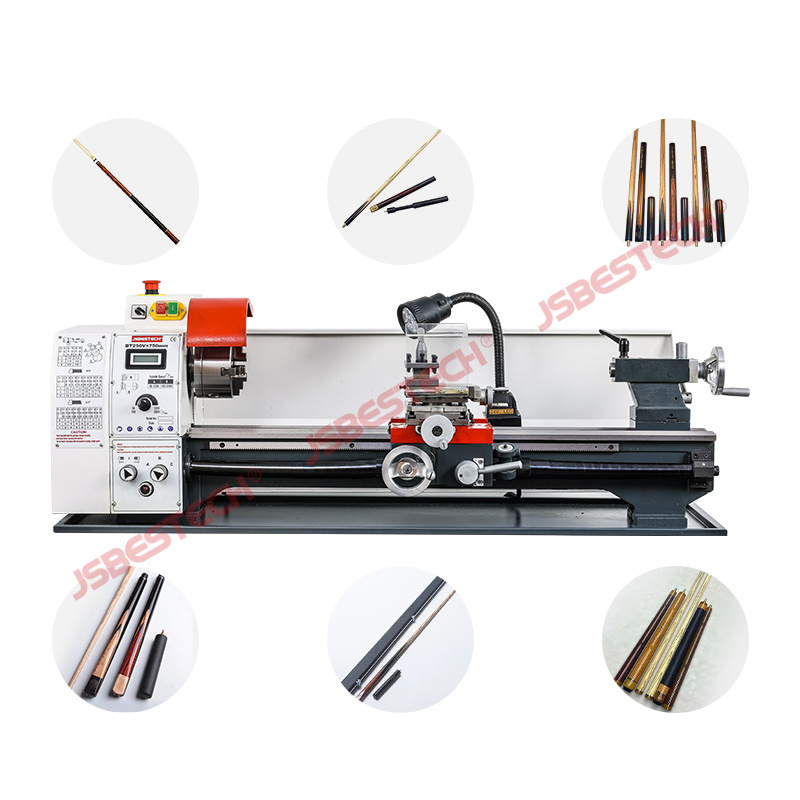

BT250V Bench Lathe Machine Technical Date
|
|
|
||
|
Machine Dates
|
Electrical Connection
|
110V--230V / 50--60Hz
|
||
|
|
Motor Power
|
750W
|
||
|
Working Areas
|
Centre Height
|
125mm
|
||
|
|
Turning Diameter (Max.)
|
250mm
|
||
|
|
Bed Width
|
135mm
|
||
|
|
Distance Between Centers
|
550mm/750mm(Optional)
|
||
|
Speeds
|
Electronically adjustable speed
|
50--2500 r.p.m
|
||
|
Headstock
|
Spindle Taper
|
MT 3
|
||
|
|
Spindle Drilling
|
Φ26mm
|
||
|
Slide
|
Travel Top Slide
|
65mm
|
||
|
|
Travel Cross Slide
|
115mm
|
||
|
|
Range Of Metric Threads
|
0.2-3.5mm
|
||
|
|
Range Of Inch Threads
|
8-56T.P.l
|
||
|
|
Tool Holder Seat Height
|
MAX.12mmX12mm
|
||
|
Tailstock
|
Tailstock Taper
|
MT 2
|
||
|
|
Tailstock Sleeve Travel
|
60mm
|
||
Jiangsu Bestech Industrial Co, Ltd. is a professional machine tool supplier with 15 years experience.We are concentrated in
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, Milling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, Milling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
