Quick Details
-
Size:
-
13000mm*2500mm*3800mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Fuel Tanker Semi Trailer
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
2/3/4*13/16T FUWA/BPW
-
King pin:
-
#50(2")/#90(3.5"), JOST/Other Brand
-
Brake System:
-
Dual Line Braking System
-
Landing Gear:
-
Standard 28Ton, JOST
-
Function:
-
Transport gasoline, diesel, crude oil, lubricating oil and coal tar
-
Tire:
-
11.00r20 12r22.5 315 385
-
Color:
-
Customers Optional
-
Rim:
-
8.0/9.0*8/12/16 pieces, steel/aluminum
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
Open Ocean
-
Size:
-
13000mm*2500mm*3800mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Fuel Tanker Semi Trailer
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
2/3/4*13/16T FUWA/BPW
-
King pin:
-
#50(2")/#90(3.5"), JOST/Other Brand
-
Brake System:
-
Dual Line Braking System
-
Landing Gear:
-
Standard 28Ton, JOST
-
Function:
-
Transport gasoline, diesel, crude oil, lubricating oil and coal tar
-
Tire:
-
11.00r20 12r22.5 315 385
-
Color:
-
Customers Optional
-
Rim:
-
8.0/9.0*8/12/16 pieces, steel/aluminum

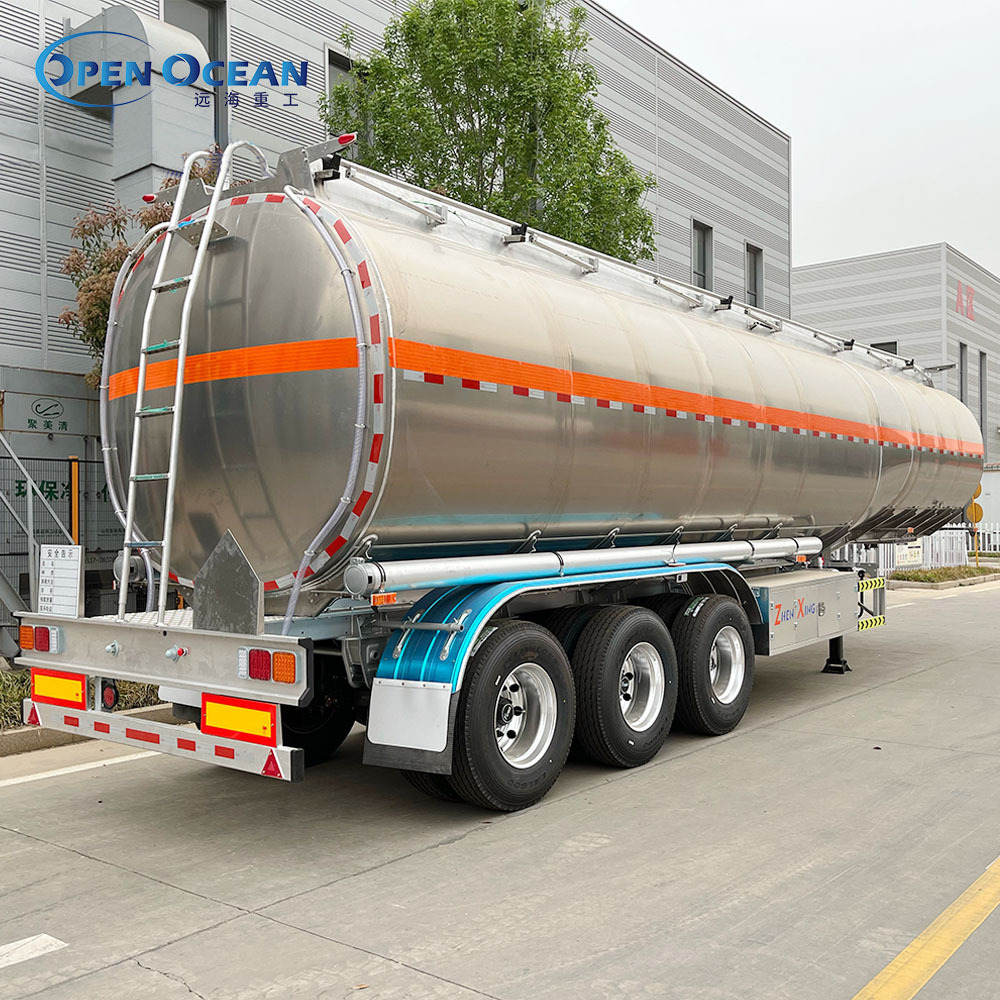

Fuel Tanker
Semi Trailer
Tanker trailer is also known as tanker, highway tanker, etc. It is mainly used for transportation and storage of oil products such as petroleum derivatives, gasoline, diesel, crude oil, lubricating oil and coal tar. Tanker trailers are widely used in oil depots, gas stations, oil fields, chemical plants, food plants, asphalt plants, etc.
The tank body of fuel tanker trailer can be made of different materials such as aluminum, carbon steel, and stainless steel. The tank is built with multi-channel reinforced anti wave baffle plate, and the lower end of the baffle plate is designed with through holes to reduce the impact of fuel in the tank and improve the strength of the tank.
The combined tank opening is located at the top of the tank body. A self-locking small cover is arranged on the large cover, and a breathing valve is installed on top of the large cover to ensure the consistency of atmospheric pressure inside and outside the tank. There is also the electrostatic grounding wire. Installed fuel pump system allows the fuel tanker trailer to self-prime and self-drain. Two separate pumping pipes are included along with a suction lift, two fire extinguishers, and tools.
Capacity: 20m3, 30m3, 40m3, 45m3, 50m3, 55m3
Number of Axles: 2 axles, 3 axles, 4 axles
Number of Axles: 2 axles, 3 axles, 4 axles
More Products
Specification
|
Type
|
Tanker semi-trailer
|
|
|
||
|
Specifications
|
Loading capacity
|
Axle
|
Number of tires
|
||
|
10000-30000L 10-30CBM
|
10-30CBM 40 ton
|
2 Axle
|
8
|
||
|
30000-50000L 60CBM
|
46CBM 60ton
|
3 Axle
|
12
|
||
|
More than 60000 60CBM
|
60CBM 80 ton
|
4 Axle
|
16
|
||
|
Total height
|
3850mm
|
|
Body material
|
3-6mm Q235 Carbon steel, aluminum, stainless steel
|
|
Dimensions(LxWxH)
|
6500 to 17500mm x 2500mm-2550 x 3990mm (Optional)
|
|
Air compressor
|
Bohai air compressor (with diesel engine)
|
|
Manhole cover
|
Carbon steel, aluminum alloy API Manhole cover
|
|
Bottom valve
|
Aluminum, API pneumatic bottom valve
|
|
Discharge valve
|
3 / 4 inch diameter
|
|
Ways of use
|
Cement powder, fly ash transportation
|
|
Axle and Brand
|
13T/16T/18T Leitewei , (2/4 axle,fuhua/BPW to choose)
|
|
Tire brand
|
12r22.5 (Chengshan, Zhaoyang and other 3-Pack tires)
|
|
Axle spacing
|
1310mm
|
|
Tare weight
|
4tons to 12 tons
|
|
Rims
|
8.5-20, 9.0-20
|
|
Brake System
|
Double line pneumatic braking system with WABCO emergency relay valve
|
|
Front axle lifting
|
Front axle lifting optional
|
|
Plate spring
|
Ten pieces 13mm(widen)
|
|
Suspension System
|
Heavy machinery suspension / air suspension
|
|
Main Beam
|
Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional)
|
|
Up and down the wing
|
Upper14mm,lower16mm ,Middle web10mm(Optional)
|
|
Kingpin
|
2' or 3.5' interchangeable,(50.mm-90mm interchangeable)
|
|
Landing Gear
|
28 Tons ,Two speed manual (Yost or fuhua Can be choose)
|
|
Electrical System
|
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
|
|
Lights and Reflectors
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
|
|
Painting
|
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm; Any color will be available
|
|
Tool Box
|
One tool box with a set of standard trailer tools
|
|
Spare Tyre Carrier
|
One piece or two pieces
|
|
Packing
|
Polish with wax before shipping
|
|
Color
|
All colors can be customized
|
Details Images
Rational Analysis Design
Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.
Polyurethane Combination Painting
Tankers are subjected to shot blasting process: base paint once, and Polyurethane combination painting for the second time; high oxidation resistance and stronger adhesion.
National Welding Standard
All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results.
European System
Reliable European system provides explosion-proof manhole with anti-overflow, anti-overflow, and oil and gas recovery functionality, as well as bottom loading.
X-Ray Examination
China Market very first Tanker Examination Method. The entire tanker trailer is tested for the overall welding effect in an X-ray room. Any welding imperfections will be spotted and corrected during this process. Maximum safety of tanker is ensured.
Anti-Tire Abrasion Suspension
Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.
Advanced Axle Performance
Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.
Landing Gear
JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30ºC to 120 ºC.
Tires
High quality tire brands such as Double Coin/Linglong/Triangle can be optioned for the best performance.
Packing & Shipping
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
