Quick Details
-
Max. Spindle Speed (r.p.m):
-
3500 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
560 mm
-
Place of Origin:
-
shandong
-
Dimension(L*W*H):
-
2750*2000*1900
-
Brand Name:
-
ACR Machine
-
Model Number:
-
TCK56ADY/500
-
Voltage:
-
220V/380V
-
Weight (KG):
-
4800
-
Marketing Type:
-
Hot Product 2023
-

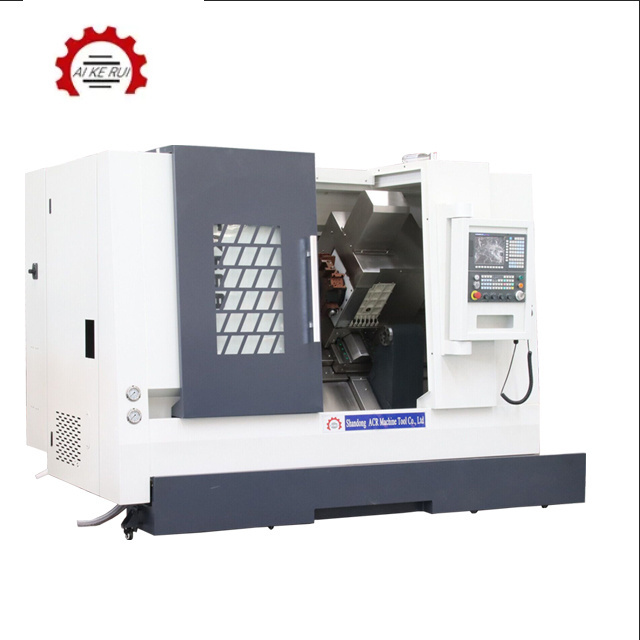

Product name:
-
Turning Center Machine
-
Keyword:
-
cnc lathe milling machine combination
-
Spindle speed:
-
3500rpm
-
X-Axis:
-
210mm
-
Z-Axis:
-
560mm
-
Y-Axis:
-
±50mm
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
500
-
Year:
-
2024
-
Max. Spindle Speed (r.p.m):
-
3500 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
560 mm
-
Place of Origin:
-
shandong
-
Dimension(L*W*H):
-
2750*2000*1900
-
Brand Name:
-
ACR Machine
-
Model Number:
-
TCK56ADY/500
-
Voltage:
-
220V/380V
-
Weight (KG):
-
4800
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Turning Center Machine
-
Keyword:
-
cnc lathe milling machine combination
-
Spindle speed:
-
3500rpm
-
X-Axis:
-
210mm
-
Z-Axis:
-
560mm
-
Y-Axis:
-
±50mm
|
Specifications
|
Units
|
TCK56ADY
|
|
Swing over bed
|
mm
|
560
|
|
Swing over cross slide
|
mm
|
300
|
|
Guide width
|
mm
|
400
|
|
Max.Work piece Length
|
mm
|
500
|
|
Spindle bore
|
mm
|
65
|
|
Spindle bore taper
|
|
A2-6
|
|
Spindle speed steps
|
-
|
Stepless
|
|
Spindle speed range
|
rpm
|
3500
|
|
Turret/tool type
|
-
|
Horizontal 8/12 station
|
|
Tool size
|
mm
|
25*25
|
|
X axis travel
|
mm
|
200
|
|
Z axis travel
|
mm
|
560
|
|
Y axis travel
|
mm
|
±50
|
|
X axis rapid traverse
|
mm/min
|
24000
|
|
Z axis rapid traverse
|
mm/min
|
24000
|
|
Tailstock quill diameter
|
mm
|
74
|
|
Tailstock quill taper
|
-
|
MT5
|
|
Tailstock quill travel
|
mm
|
450
|
|
Main spindle motor
|
kw
|
11
|
|
Machining accuracy
|
|
IT6
|
|
The roundness of the workpiece is
|
mm
|
0.0025/ diameter 75
|
|
Machining workpiece cylindricity
|
mm
|
0.010 / 150
|
|
The flatness of the workpiece
|
mm
|
0.010/ 200
|
|
Positioning accuracy
|
mm
|
0.008
|
|
Repeated positioning fineness
|
mm
|
0.004
|
|
Weight
|
kg
|
4000
|
|
Dimension
|
mm
|
2750×2000×1900
|
FAQ
Title goes here.
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
