Quick Details
-
Brand Name:
-
LongTime
-
Model Number:
-
15-38-23-50mm
-
Surface Treatment:
-
smooth, gritted
-
Product name:
-
FRP Pultruded Grating
-
Material:
-
Fiberglass Reinforced Plastic
-
Color:
-
Black\gray\white\yellow\red\green
-
Shape:
-
Square, Rectangular
-
Size:
-
Customised Size
-
Thickness:
-
15/25/30/38/40/50mm
-
Packing:
-
Pallet, wooden case
-
MOQ:
-
100 square meter
-
Selling point:
-
High quality, good price
-
Feature:
-
High strength, anti slip, anti corrosion
Quick Details
-
Application:
-
Walkway, platform, floor
-
Technique:
-
pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LongTime
-
Model Number:
-
15-38-23-50mm
-
Surface Treatment:
-
smooth, gritted
-
Product name:
-
FRP Pultruded Grating
-
Material:
-
Fiberglass Reinforced Plastic
-
Color:
-
Black\gray\white\yellow\red\green
-
Shape:
-
Square, Rectangular
-
Size:
-
Customised Size
-
Thickness:
-
15/25/30/38/40/50mm
-
Packing:
-
Pallet, wooden case
-
MOQ:
-
100 square meter
-
Selling point:
-
High quality, good price
-
Feature:
-
High strength, anti slip, anti corrosion

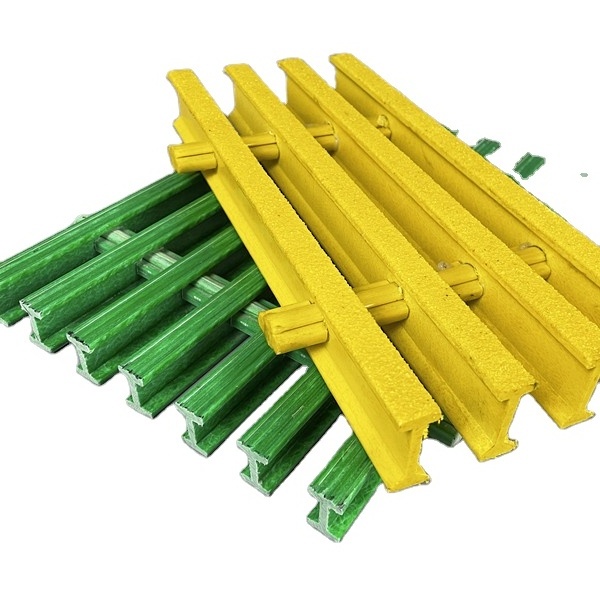

Wholesale High Strength Heavy Duty Walkway Platform Fiberglass FRP GRP Pultrusion Grating
We offer a wide range of anti slip FRP pultruded grating, including a variety of thicknesses, open areas, cross bar spacing, surfaces, and resins. Pultruded grating is often used where spans are longer than molded grating can allow, and chemical resistance requirements aren't as high.
Standard FRP pultruded gratings are made of a matrix of polyester resin. The reinforcement is achieved by a combination of fibreglass mats and rovings with a glass content of approx. 65%. Standard colours are grey or yellow, but all other colors are possible.
The most important feature of FRP pultruded grating consists of the fact that the glass to resin ratio is higher in the bearing bar direction, therefore the span capacity of FRP pultruded grating is higher compared to that of the molded grating. This reflects in a reduction of support structures and lower cost.
* Many types of fiberglass grating are available, such as molded fiberglass grating, pultruded fiberglass grating, and fiberglass covered grating.
* Surface: Meniscus top for normal application. Gritted top for application where maximum wear resistance and skid resistance is required.
* Color: Gray & yellow are common color. Customization color is accepted to satisfy your demand.
* Resin: It could be tailored to your corrosion resistance need.
|
Advantage
|
|
|
|
|||
|
Light Weight / High Strength
|
Low Density (about 1.8), 1/4 of steel, 2/3 of aluminum. High strength.
|
|
|
|||
|
Anti-Fire / Safety
|
Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
|
|
|
|||
|
Anti-Corrosion
|
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
|
|
|
|||
|
Anti-skid
|
Different process mode on surface, concave, gritted, increase friction factor.
|
|
|
|||
|
Anti-aging
|
With more than 20 years effective service life under normal outdoor working condition.
|
|
|
|||
|
Anti-fatigue
|
Moderate flexibility reduces the workers` pressure on legs and waist.
|
|
|
|||
|
Easy maintenance
|
have alternative and bright colors. Non-fading. Easily for clean.
|
|
|
|||
|
Excellent economic benifits
|
Excellent comprehensive economic benefits.
|
|
|
|||
Features
1 Corrosion resistant
2 Light weight and high strength
3 Anti-ageing
4 Easy maintenance
5 Excellent electromagnetism property
6 Excellent insulation property
2 Light weight and high strength
3 Anti-ageing
4 Easy maintenance
5 Excellent electromagnetism property
6 Excellent insulation property
Application
FRP pultruded grating is assembled from pultruded fiberglass profiles with light weight, high strength, corrosion resistance, non-slip, anti-aging, shock, drilling, cutting easy and not scattered and other characteristics, widely used in petroleum, chemical, electricity, electroplating and other industries working platforms, equipment platforms, stair treads, trench cover, bridge walkway, is corrosive environment ideal replacement for traditional metal grille.
Pultrusion fiberglass gratings are packed by pallet or wooden case.
