Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHHB
-
Model Number:
-
LA160A16
-
Product name:
-
plastic push button switch
-
Material:
-
Plastic
-
Operation type:
-
Self-locking/Self-reset
-
Certificate:
-
CQC CCC
-
LED color:
-
Red Green Yellow Blue White
-
Size:
-
16mm
-
Head shape:
-
Round/square/rectangle
-
LED voltage:
-
3-220V
Quick Details
-
Protection Level:
-
IP60
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHHB
-
Model Number:
-
LA160A16
-
Product name:
-
plastic push button switch
-
Material:
-
Plastic
-
Operation type:
-
Self-locking/Self-reset
-
Certificate:
-
CQC CCC
-
LED color:
-
Red Green Yellow Blue White
-
Size:
-
16mm
-
Head shape:
-
Round/square/rectangle
-
LED voltage:
-
3-220V
Prpduct Description
Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:
|
Product Name
|

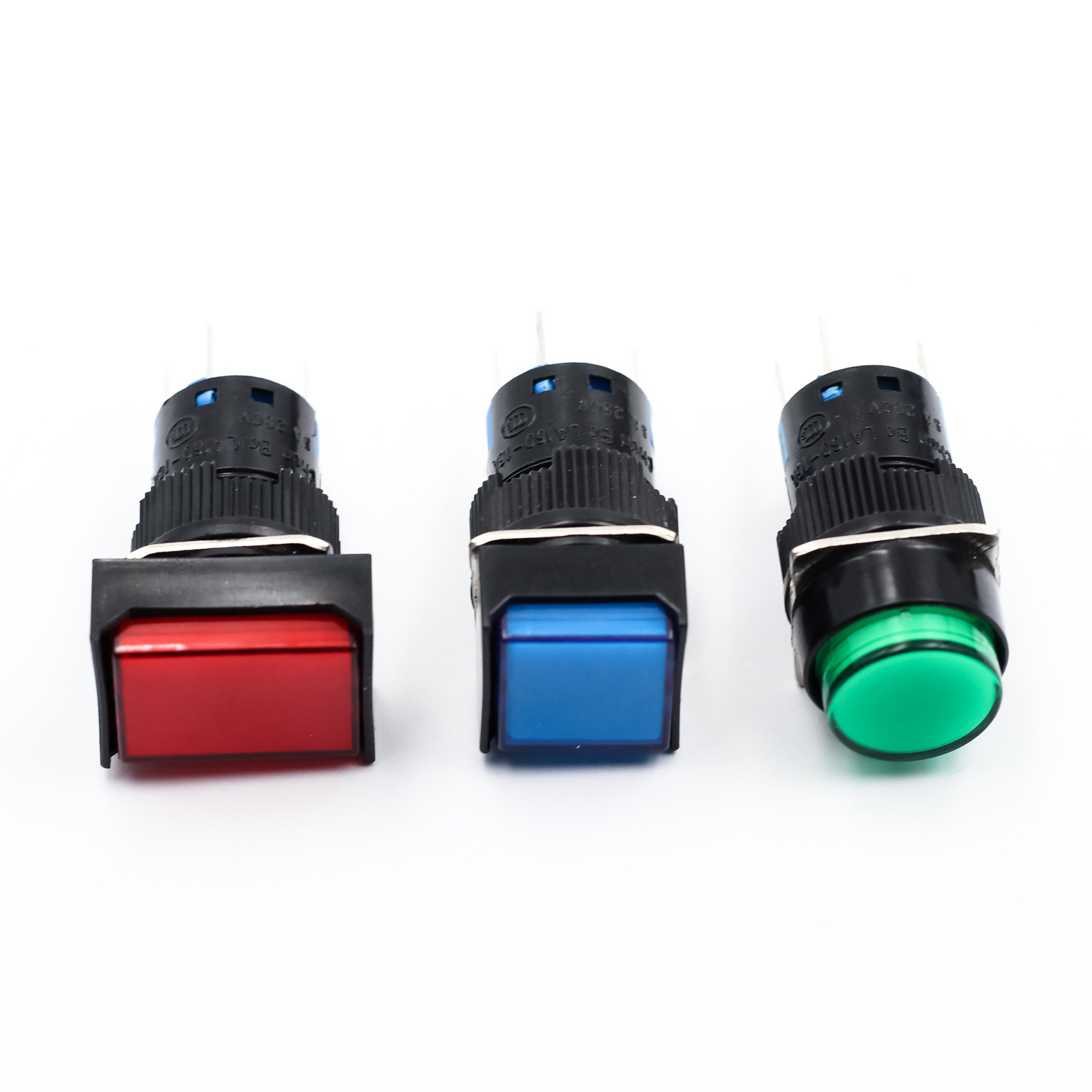

16mm 5-pin LED lamp plastic push button switch
|
|
Rating
|
5A 250VAC
|
|
Contact Resistance
|
50mΩ Max
|
|
Insulation Resistance
|
1000mΩ Min
|
|
Dielectric Strength
|
1000VAC
|
|
Operating Temperature
|
|
|
Electrical Life
|
500,000 Cycles
|
|
Waterproof level
|
IP60
|
