Quick Details
-
Brand Name:
-
zhuochuan
-
Model Number:
-
T3-1--3
-
Product Name:
-

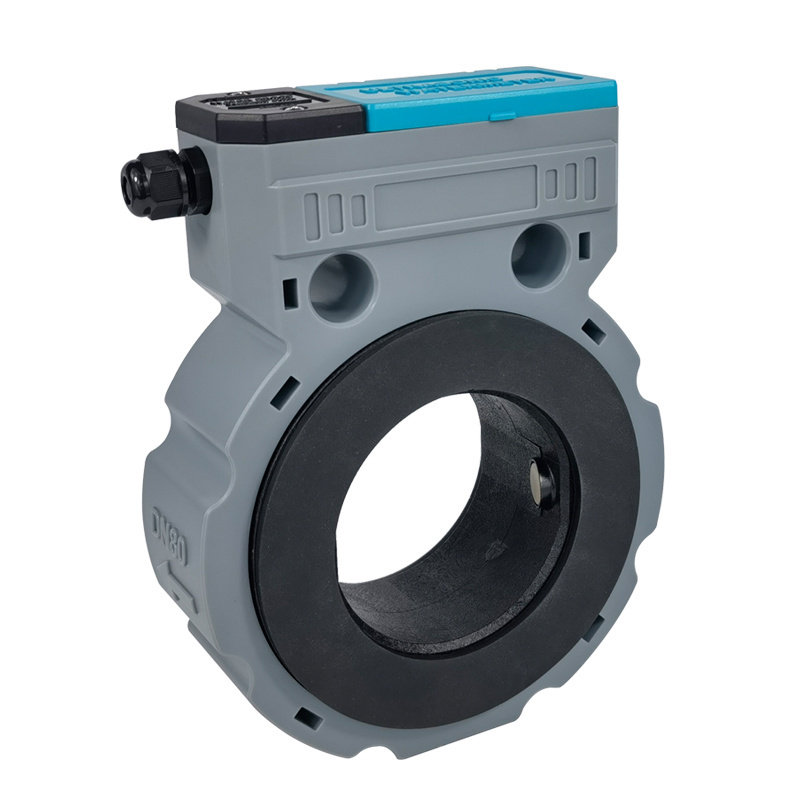

Intelligent water meter
-
Structural form:
-
Direct reading water meter
-
Medium:
-
liquid
-
Caliber:
-
DN50~150/customized
-
Pressure:
-
1.6(MPa)
-
Protection level:
-
IP68
-
Accuracy class:
-
B
-
Power supply:
-
Battery/24V
-
power waste:
-
Battery life More than ten years
-
Application industry:
-
Water resources management, agricultural irrigation, etc
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Ultrasonic meters
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
zhuochuan
-
Model Number:
-
T3-1--3
-
Product Name:
-
Intelligent water meter
-
Structural form:
-
Direct reading water meter
-
Medium:
-
liquid
-
Caliber:
-
DN50~150/customized
-
Pressure:
-
1.6(MPa)
-
Protection level:
-
IP68
-
Accuracy class:
-
B
-
Power supply:
-
Battery/24V
-
power waste:
-
Battery life More than ten years
-
Application industry:
-
Water resources management, agricultural irrigation, etc
|
project
|
parameter
|
|
Execution standard
|
ISo4064-2014、GBT778-2018
|
|
The fluid temperature
|
0.1-30 ℃
|
|
The work environment
|
Temperature: - 30 to 45 ℃; Humidity 100%(RH)
|
|
Under pressure
|
1.6 MPa
|
|
The pressure loss
|
There is no loss of pressure
|
|
Communication interface
|
RS485/USART/ infrared, optional M-BUS; Nb-iot wireless transmission
|
|
The output signal
|
Optional OCT
|
|
Power supply
|
Built-in lithium battery (3.6V,4Ah)/ external DC8-24V DC power supply
|
|
Protection grade
|
IP68
|
|
Measure the fluid
|
Water, sewage, sea water (other liquids to be customized) and filled with pipes
|
|
Sensitivity level of upstream flow field
|
u5
|
|
Sensitivity level of downstream flow field
|
D3
|
|
Climate and mechanical environmental safety rating
|
level
|
|
Electromagnetic compatibility class
|
E2 level
|
|
According to local
|
The two-line display includes a 9-bit cumulant, a 6-bit instantaneous flow, and a variety of status prompts and units
|
|
Data is stored
|
Ferroelectric storage parameters are used to automatically record the cumulative flow of the first 31 days of the first 32 months
|
|
Current cycle
|
Measurement state :1 time/second (adjustable); Check status :4 times/second
|
|
Power consumption
|
Standard condition < 30uA, one battery can work continuously for more than 15 years
|
|
Material
|
Measuring tube body: nylon + glass fiber; Sensors: PEEK; Shell: UV resistant ABS
|
