Quick Details
-
Mounting Type:
-
wall install
-
Description:
-
Photoeletric sensors, Photoelectric Sensors
-
Model Number:
-
FC20-28L20/FC20-32L20
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUTAI
-
Theory:
-
infrared light
-
Output:
-
NPN
-
Application:
-
Industrial Automatic/Protection
-
Operating Temperature:
-
-20 ~60℃
-
Response Time:
-
less than 45ms
-
Max speed door closing/opening:
-
3m/s
-
Sensing distance:
-
15m/590inch
-
Supply voltage:
-
12-24VAC/DC
-
Beams:
-
28-beams/32-beams
-
Height:
-
2.2m/86inch(optional)
-
Safety output:
-
max 350mA@40VDC
-
Waterproof:
-
IP65
Quick Details
-
Use:
-
Industrial automation
-
Series:
-
infrared light sensor
-
Features:
-
waterproof
-
Mounting Type:
-
wall install
-
Description:
-
Photoeletric sensors, Photoelectric Sensors
-
Model Number:
-
FC20-28L20/FC20-32L20
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUTAI
-
Theory:
-
infrared light
-
Output:
-
NPN
-
Application:
-
Industrial Automatic/Protection
-
Operating Temperature:
-
-20 ~60℃
-
Response Time:
-
less than 45ms
-
Max speed door closing/opening:
-
3m/s
-
Sensing distance:
-
15m/590inch
-
Supply voltage:
-
12-24VAC/DC
-
Beams:
-
28-beams/32-beams
-
Height:
-
2.2m/86inch(optional)
-
Safety output:
-
max 350mA@40VDC
-
Waterproof:
-
IP65
Product Description
Product Description

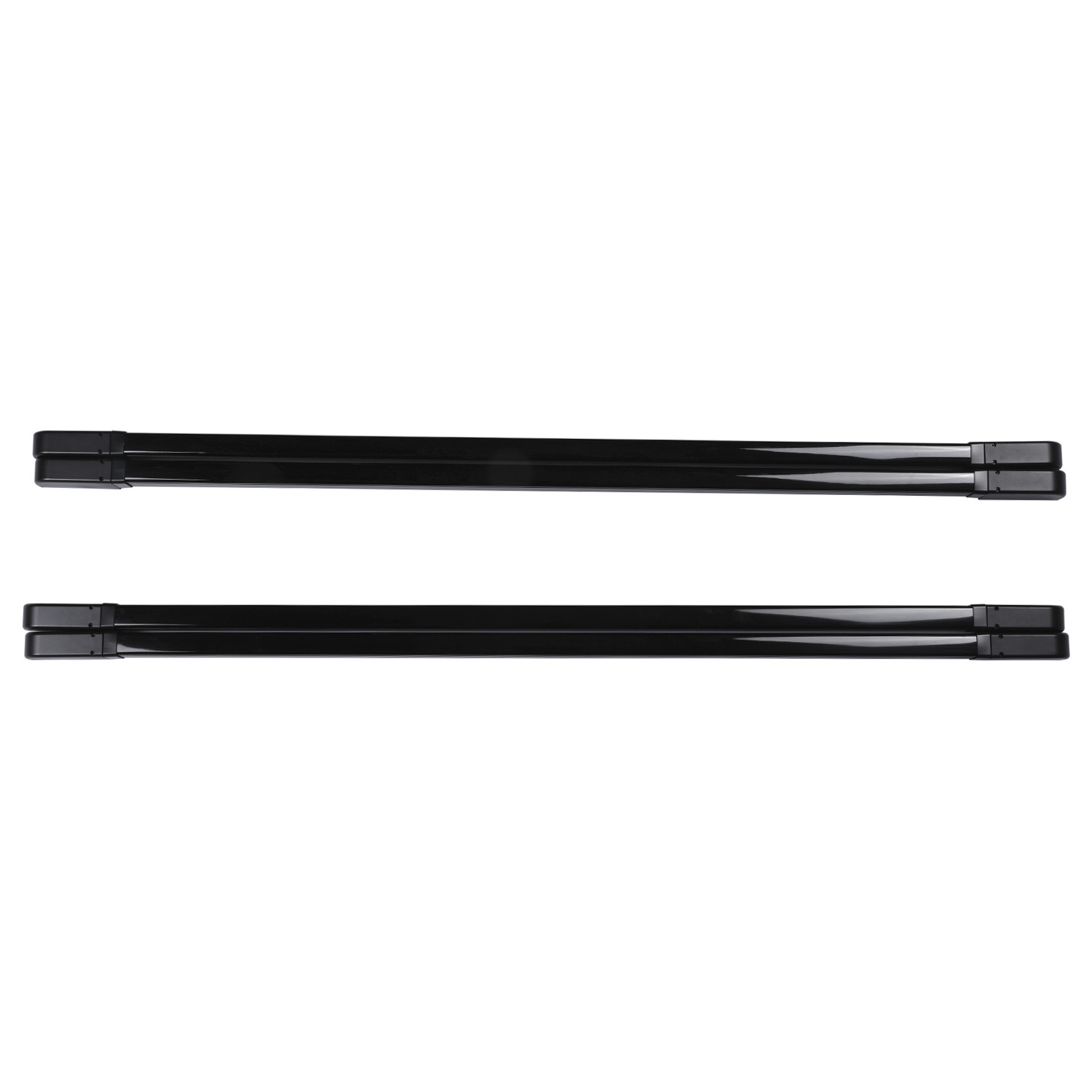

Blanking safety light curtains
1. The FC20-28L20 series safety device is composed of N transmitter units and receiver units, both contained within sturdy aluminum profles. Beams of infrared rays are generated capable of detecting the presence of people and / or objects when interrupted.The communication between the transmitter unit and the receiver unit is carried out optically and, therefore, no electrical connection between the two units is necessary.
2. To avoid reflections and / or reception errors, a unique identification code is set for each infrared beam. Whenan object, limb or body of a person interrupts the beam of rays emitted by the transmission unit, the output is immediately opened by the receiver unit, with consequent blocking of the automation. The system is only safe when the TEST system is used, this allows you to check the correct functioning of the barrier(See par. safety test).
2. To avoid reflections and / or reception errors, a unique identification code is set for each infrared beam. Whenan object, limb or body of a person interrupts the beam of rays emitted by the transmission unit, the output is immediately opened by the receiver unit, with consequent blocking of the automation. The system is only safe when the TEST system is used, this allows you to check the correct functioning of the barrier(See par. safety test).
3. Typical applications of the system include detection of people or material obstacles near access gates suchas: 1.High-speed folding doors and sectional doors. 2.Sliding doors and gates.
Specification
Specification
Diagram Connection
Diagram Connection
Applications
Applications
Installation for door
lt is possible to use the FC20-28L20 series barrier, on sectional doors (DIP 2A ON) or rapid doors (DIP 2A OFF),it is necessary to install them out of parallax as shown in the figure. In this way the barrier recognizes whether the interruption of the infrared rays is due to the passage of a person, the presence of an object or if the dooris closed.(Gradual shut down)
Installation for gate
In the case of installation on sliding gates, DIP 1A must be set to ON. lt is recommended to install them on the same side, either internally or externally.
Details Images
Details Images
FC20-28L20
series light curtain is composed of one BASIS set which are connected all other set with 8 rays each.The number of set hang on the choose version.
