Quick Details
-
Product name:
-
HDMI 4 Port Extender by Single CAT
-
Length of CAT-6 cable between Rx and TX:
-
up to 60m
-
OEM Mini QTY:
-
100
-
Channels:
-
HDMI Extender
-
Color:
-
Black hdmi Box
-
audio format output:
-
LPCM7.1/DTS/AC3/DSD
-
audio format input:
-
DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
-
Dimension (TX):
-
205x74x26(mm)
-
Dimension (RX):
-
(82X44X22) (mm) X4pcs
-
Certifications:
-
CE FCC ROHS SGS ISO9001
Quick Details
-
Model Number:
-
HDEX004M1
-
Brand Name:
-
ASK
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI 4 Port Extender by Single CAT
-
Length of CAT-6 cable between Rx and TX:
-
up to 60m
-
OEM Mini QTY:
-
100
-
Channels:
-
HDMI Extender
-
Color:
-
Black hdmi Box
-
audio format output:
-
LPCM7.1/DTS/AC3/DSD
-
audio format input:
-
DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
-
Dimension (TX):
-
205x74x26(mm)
-
Dimension (RX):
-
(82X44X22) (mm) X4pcs
-
Certifications:
-
CE FCC ROHS SGS ISO9001

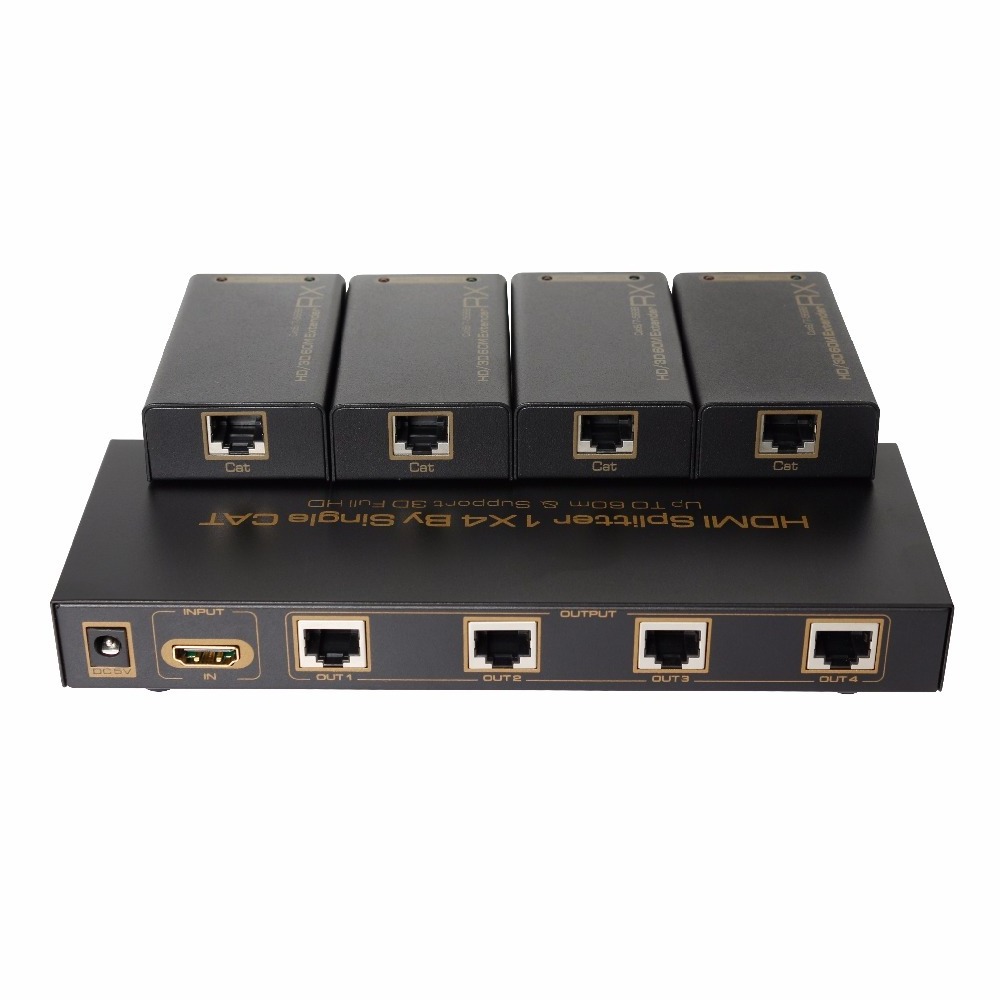

1*4 Hdmi Splitter Extender Over Single Cat 5e/6 Up To 60 Meters Hdmi Switcher With Ir Remote Control Support 3d Full Hd 1080p
This extender can extend and connect one HD Source to four HD Displays or Projectors by
four pieces of cat6/7 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.
FEATURES
l One HDMI input distribute and extend to found Display by four cat6/7 cable. The extend distance can be up to 60m.
l Support 3D
l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l LED Status Light: the related led light will go bright.
l The extend distance can be up to 60m.
l Support signal retiming
l No loss of quality
l Installs in minutes
l TX uses the DC5V/3A power adaptor.
l Four RX: each one uses 5V/1A power adaptor
Operating and Connecting :
The acce The accssories with the machines lists as picture:
1, 5V /3A Power Adapter 1 pcs
2, 5V /1A Power Adapter 4pcs
3 ,one pc of Manual 1 pcs
Physical Connection Showing Picture :
Figure 1.0 Front Panel Showing Picture
Figure 1.1 rear panel showing picture
Figure 1. 2 Front Panel Showing Picture
To use four cat6/7 cables to connect the TX Out port with the CAT input port of the RX.
Figure 1. 3 the rear and side board showing picture
HDMI OUT : Receiver to connect the HDTV or other display.
DC 5V: 5V DC-DC Power Adaptor Interface.
SPECIFICATIONS: HDEX004M1
|
Length of CAT-6 cable between Rx and TX |
up to 60m |
|
HDMI Input |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format input |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
HDMI Output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format output |
LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225 MHz |
|
Max baud rate |
6.75 Gbps |
|
Input Video signal |
0.5~1.5Volts p-p |
|
Output DDC signal |
5Volts p-p (TT1L) |
|
Input HDMI cable distance |
≤15m AWG26 HDMI standard cable |
|
Output HDMI cable distance |
≤2 0 m AWG26 HDMI standard cable |
|
Max working current (TX) |
2 0 00 mA |
|
Max working current (RX) |
600 mA |
|
Power adapter format (TX) |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/ 3 A |
|
Power adapter format (RX) |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/ 1 A |
|
Operating Temperature range |
( 0 to + 40 ℃ ) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension ( TX ) |
205x74x26 (mm) |
|
Dimension ( RX ) |
(82X44X22) (mm) X4pcs |
|
Weight |
750 g |
