Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7203x2484x3206mm
-
Warranty:
-
1 year or 2200 hrs
-
Machine Weight:
-
10500 kg
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
standard:
-
iso9001
-
Bucket capacity:
-
1.7-2.2m3
-
Rated load:
-
3 t
-
Dump height:
-
3057mm-3200mm
-
Fuel tank volume:
-
160l
-
Service brake:
-
Air over oil caliper disc brake
-
Rated power:
-
92kw
-
Max. travel speed:
-
35km/h
-
Dimension:
-
7203x2484x3206
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
92 KW
-
Brand Name:
-
DeGong
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7203x2484x3206mm
-
Warranty:
-
1 year or 2200 hrs
-
Machine Weight:
-
10500 kg
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
standard:
-
iso9001
-
Bucket capacity:
-
1.7-2.2m3
-
Rated load:
-
3 t
-
Dump height:
-
3057mm-3200mm
-
Fuel tank volume:
-
160l
-
Service brake:
-
Air over oil caliper disc brake
-
Rated power:
-
92kw
-
Max. travel speed:
-
35km/h
-
Dimension:
-
7203x2484x3206

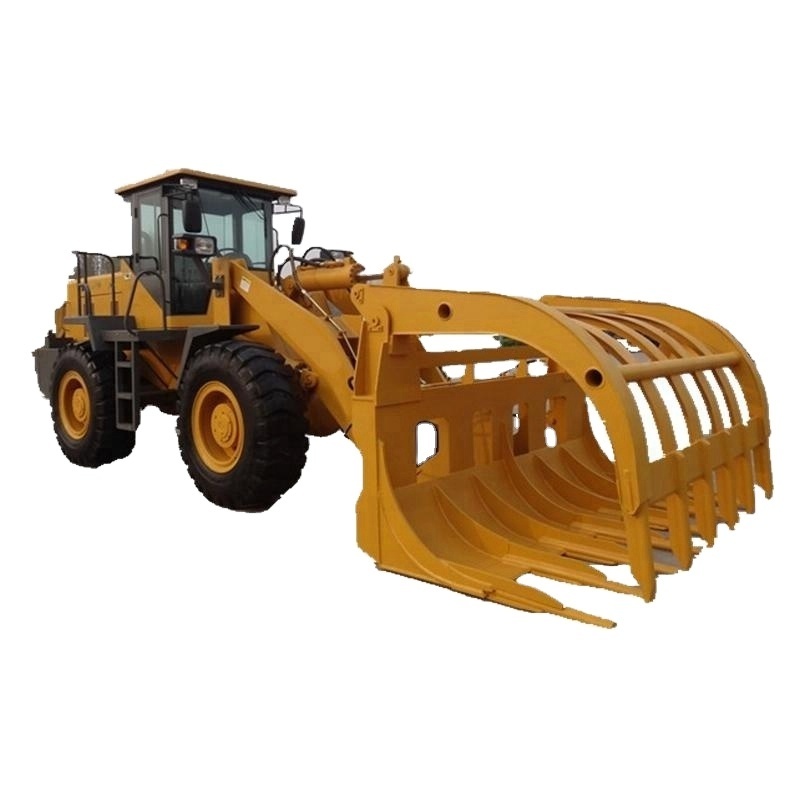

DEGONG DG938 Wheel Loader
- Xichai and Deutz Engine are optional, featuring low fuel consumption, big torque, low noise and superior performance.
- Power shift transmission, full hydraulic steering, convenient and flexible operation, and higher stability.
- The optimal design of Z-type reverse bucket tipping mechanism contributes to large breakout force and high work efficiency.
- Structural parts made of high quality manganese steel and reinforced boom contributes to more reliable quality.
- The automatic bucket leveling function reduces the driver’s work intensity.
- With optimally designed drive system and hydraulic system, it has higher travel speed and work efficiency.
- Heavy weight and long axle base make it more stable during operation.
- Equipped with articulated frame, it has small turning radius.
- It adopts air over hydraulic caliper disc single pipeline brake system, with high quality polyurethane high pressure hose, which is more safe and reliable.
- The pin shafts for the working device are all mounted with anti-dust device, which prolongs the service life.
- The ergonomically designed cab has wide view and comfortable vibration absorption seat, which is more safe and reliable.
- With multiple working devices like log grasper, grass grasper, coal bucket, rock bucket, high dump device, breaker, etc. the machine can handle various kinds of work.
|
Parameters |
Value |
Parameters |
Value |
||
|
Bucket capacity |
Standard bucket |
1.7m 3 |
Rated load |
3.0t |
|
|
Coal bucket |
2.2m 3 |
Max. breakout force |
96 KN |
||
|
Travel speed |
Forward |
I Gear 5.8 km/h |
Max. travel speed |
35km/h |
|
|
II Gear 10.8 km/h |
Fuel tank volume |
160L |
|||
|
III Gear 18.4 km/h |
Operating weight |
10.5t |
|||
|
IV Gear 35 km/h |
Max. traction force |
95KN |
|||
|
Reverse |
I Gear 7.8 km/h |
Automatic bucket leveling |
Available |
||
|
II Gear 27 km/h |
Service brake |
Air over oil caliper disc brake |
|||
|
Engine |
Model |
CA6DF1D-12GAG2 |
Dump height |
Extended boom |
3057mm |
|
Rated power |
92kW |
Long reach |
3200mm |
||
|
Rated revs |
2200r/min |
Dump distance |
Extended boom |
906mm |
|
|
Max. torque |
520N.M |
Long reach |
886mm |
||
|
Work cycle time |
5.5+3.0+1.0=9.5s |
Dimension (L×W×H) |
7203×2484×3206mm |
||
DG938
DG938
DG938
