Quick Details
-
Supplier Type:
-
Customized
-
Product name:
-
180 °sinusoidal DC inverter driver
-
Application:
-
Compressor
-
Rated input voltage:
-
220V 50/60Hz
-
Input maximum power:
-
3.5KW 220VAC
-
Input maximum current:
-
16A
-
Communication interface:
-
RS485
-
Service:
-
24Hours Technical Services
-
PCBA service:
-
Support Customization
-
Surface Finishing:
-
HASL
Quick Details
-
Model Number:
-
S16A01
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELECHICO
-
Supplier Type:
-
Customized
-
Product name:
-
180 °sinusoidal DC inverter driver
-
Application:
-
Compressor
-
Rated input voltage:
-
220V 50/60Hz
-
Input maximum power:
-
3.5KW 220VAC
-
Input maximum current:
-
16A
-
Communication interface:
-
RS485
-
Service:
-
24Hours Technical Services
-
PCBA service:
-
Support Customization
-
Surface Finishing:
-
HASL
Product Introduction

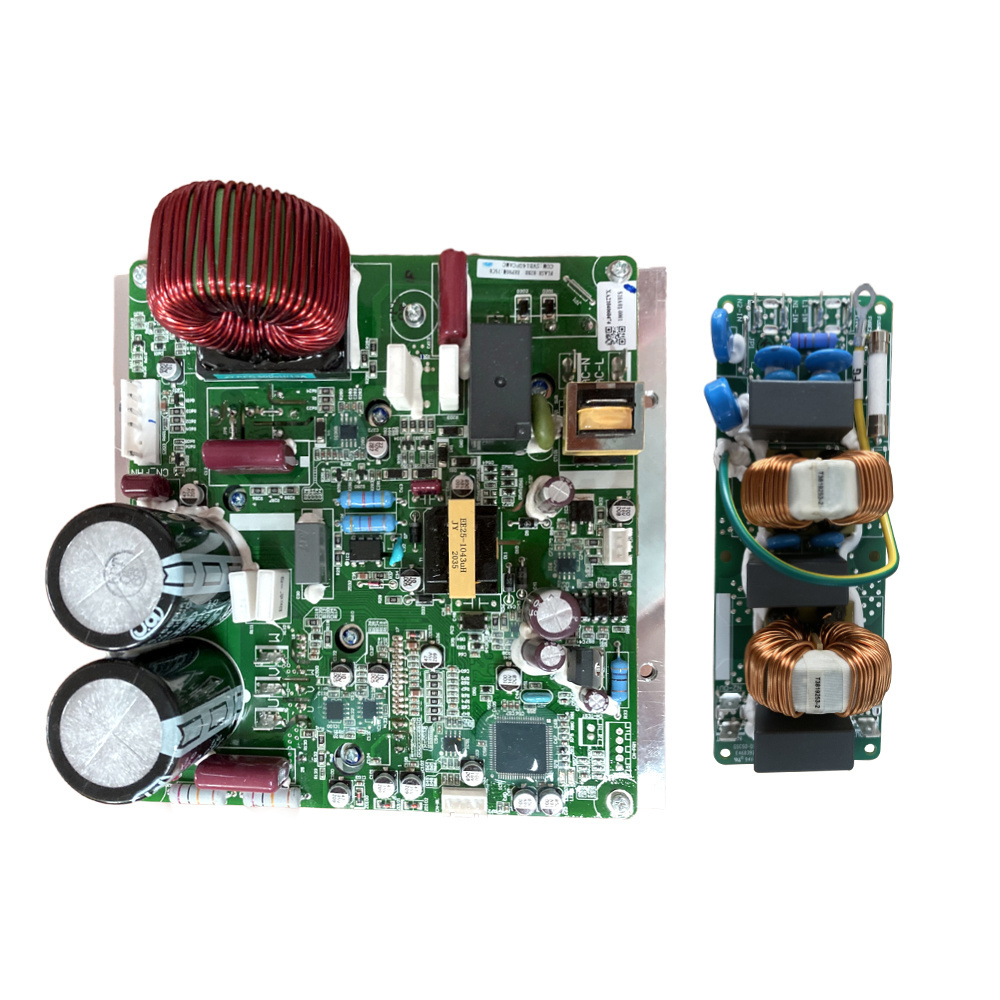

S16A01 Single Phase Inverter Compressor Driver PCBA
S16A01
is designed for driving DC frequency inverter compressor. This module can be used for DC365V and VSP signal control DC fan. ELECHICO compressor driver module integrates switching power supply, IPM module, communication circuit with the advantages of low harmonic and high efficiency.
The biggest advantage
of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. Because we have experience in R&D and manufacture of heat pump controller for more than 20 years. Therfore, we are mainly exporting
OEM/ODM
services.
Different DC frequency inverter compressor need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.
Technical Data
|
Type
|
180 °sinusoidal DC inverter driver
|
|
Rated input voltage
|
Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V
|
|
Input maximum power
|
3.5KW 220V AC
|
|
Input maximum current
|
16A
|
|
PFC
|
PF value (0.90-0.99)
|
|
Carrier frequency
|
5.0k Hz (adjustable according to compressor noise)
|
|
Output mechanical frequency
|
15-120Hz (ultimately according to the specification of the compressor)
|
|
Control type
|
180-degree sinusoidal vector driving
|
|
Communication interface
|
RS485
|
|
Communication protocol
|
Standard Modbus RTU Baud rate 1200 bps
|
|
Operating temperature range
|
-20 To 60℃
|
|
Operating humidity range
|
<95% and noncondensing
|
Failure Alarm
|
Over current protection of compressor
|
IPM over current protection
|
|
Communication failures
|
IPM over temperature protection
|
|
Compressor drive protection
|
Abnormal AC phase or CT
|
|
DC bus overvoltage or undervoltage protection
|
AC over current protection
|
|
Over power protection of compressor
|
EPPROM fault
|
