Quick Details
-
Brand Name:
-
HUAQIZHENGBANG
-
Model Number:
-
ZB3245T
-
Product name:
-
pick and place machine
-
Normal mounting speed:
-
5000pcs/h
-
PCB maximum size:
-
320*450mm
-
Power Supply:
-
AC220V 50Hz
-
Compatible file format:
-
CSV, TXT format
-
Feeder:
-
8mm, 12mm, 16mm, 24mm,32mm
-
Mounting precision:
-
0.025 mm
-
Applicable Components:
-
RC:0402,0603,0805,1206 Led lamp beads:3014,5050 Chips:SOT,SOP,QFN,BGA
-
Gross weight:
-
83kg
Quick Details
-
Weight (KG):
-
83
-
Marketing Type:
-
High Precise
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUAQIZHENGBANG
-
Model Number:
-
ZB3245T
-
Product name:
-
pick and place machine
-
Normal mounting speed:
-
5000pcs/h
-
PCB maximum size:
-
320*450mm
-
Power Supply:
-
AC220V 50Hz
-
Compatible file format:
-
CSV, TXT format
-
Feeder:
-
8mm, 12mm, 16mm, 24mm,32mm
-
Mounting precision:
-
0.025 mm
-
Applicable Components:
-
RC:0402,0603,0805,1206 Led lamp beads:3014,5050 Chips:SOT,SOP,QFN,BGA
-
Gross weight:
-
83kg
Product Details
Product Description

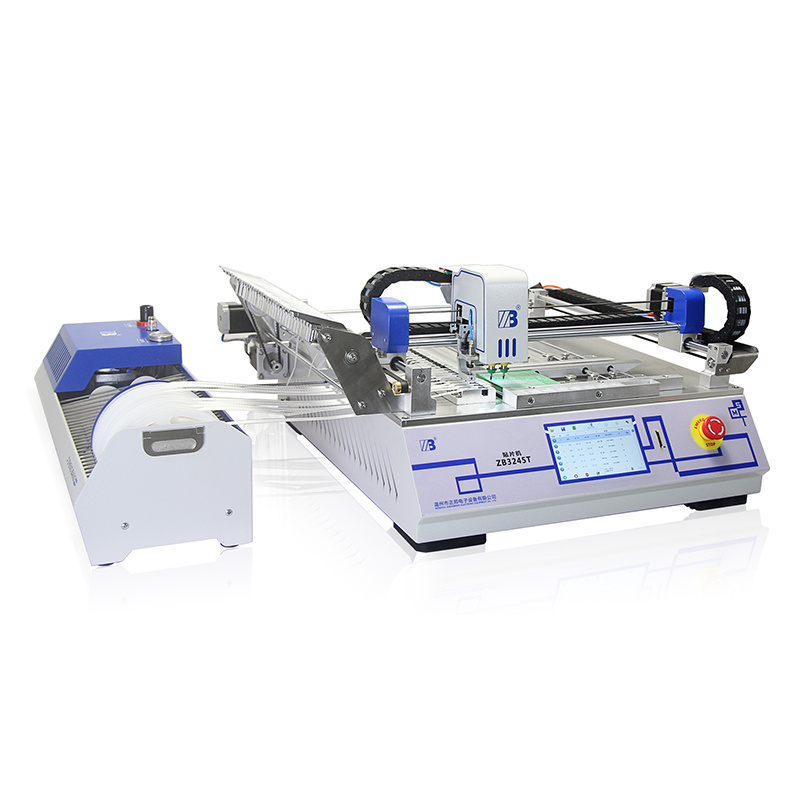

ZB3245T High Speed Pick And Place Machine Feature
1. Closed-loop control, Step servo motor with the professional flexible.
2. Pcb size: Max: 320x450mm (without tray). 320x250 (put tray).
3. The smallest component can be attached 0402. The largest: 20x20mm.
4. Industrial control computer: Install WIN7 system, the operation is simpler, can be networked, support remote assistance debugging.
5. Independent research and development system.
6. 27 kinds of plated materials.
7. S deceleration, performance as same as general servo motor.
8. With HD CCD Camera, accuracy and quick.
9. With 2 pick and place heads, types of high-precision nozzles, compatibility as Juki.
|
Product Specification
|
|
|
|
|
||||
|
System
|
Project
|
Content
|
|
|
||||
|
Mounting system
|
Mounting numbers
|
2 pcs
|
|
|
||||
|
|
Precision
|
0.025mm
|
|
|
||||
|
|
Theoretical speed
|
6500 pcs/h
|
|
|
||||
|
|
Normal speed
|
5000 pcs/h
|
|
|
||||
|
|
Visual speed
|
3500 pcs/h
|
|
|
||||
|
|
Applicable element
|
RC( 0402 , 0603 , 0805 , 1206 etc)
|
|
|
||||
|
|
|
LED lamp beads (0603,0805,3014,5050 etc)
|
|
|
||||
|
|
|
Chip ( SOT , SOP , QFN , BGA etc)
|
|
|
||||
|
PCB
|
Minimal Size
|
10 x 10 mm
|
|
|
||||
|
|
maximum size
|
320 x 450 mm (no try)
|
|
|
||||
|
|
|
320 x 220 mm( with try)
|
|
|
||||
|
|
Thickness
|
≤ 1 mm
|
|
|
||||
|
|
Wraping allowable value
|
≤ 2 mm
|
|
|
||||
|
Feeder
|
Quantity
|
27 pcs
|
|
|
||||
|
|
8 mm
|
20 pcs
|
|
|
||||
|
|
12mm
|
4 pcs
|
|
|
||||
|
|
16 mm
|
2 pcs
|
|
|
||||
|
|
24 mm
|
1 pcs
|
|
|
||||
|
|
Preposition IC
|
8 pcs
|
|
|
||||
|
|
Tubular material feeder
|
Zhengbang dedicated five tubular materials feeder one(optional)
|
|
|
||||
|
X / Y / Z axis
|
X/Y axis moving range
|
410 x 490 mm
|
|
|
||||
|
|
Z axis moving range
|
10 mm
|
|
|
||||
|
Visual Camera
|
Quantity
|
2 pcs ( parts camera, PCB camera)
|
|
|
||||
|
|
Recognition capability
|
MAX 20 x 20mm
|
|
|
||||
|
Control system
|
Syetem
|
Microsoft WIN7
|
|
|
||||
|
|
file format
|
CSV, TXT
|
|
|
||||
|
|
Air pressure
|
0.4 Mpa
|
|
|
||||
|
Basic parameter
|
Power
|
150W
|
|
|
||||
|
|
Power supply
|
AC220V±10% 50Hz
|
|
|
||||
|
|
Main engine outline size
|
L 800 x W 780 x H380mm
|
|
|
||||
|
|
Feeder outline size
|
L 235 x W 700 x H245 mm
|
|
|
||||
|
|
Net weight
|
56 kg
|
|
|
||||
|
|
Gross weight
|
83 kg
|
|
|
||||
