Quick Details
-
Production Capacity:
-
8-10m/min
-
Power:
-
7.5 KW + 3 KW, 3+7.5kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youxintong
-
Dimension(L*W*H):
-
L*1800*720mm
-
Product Name:
-
Concrete Roller Pvaer
-
Lenght:
-
4-12 m
-
Voltage:
-
380V three-phase 50Hz
-
Roller Diameter:
-
168mm, 219mm
-
Vibration frequency:
-
32HZ
-
Impact force:
-
5.5kN
-
Move speed:
-
8-10m/min
-
Paving thickness:
-
300mm
-
Certification:
-
ISO9001 CE
Quick Details
-
Max. Paving Thickness:
-
300mm
-
Weight:
-
800 kg
-
Engine Brand:
-
FPT
-
Production Capacity:
-
8-10m/min
-
Power:
-
7.5 KW + 3 KW, 3+7.5kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
youxintong
-
Dimension(L*W*H):
-
L*1800*720mm
-
Product Name:
-
Concrete Roller Pvaer
-
Lenght:
-
4-12 m
-
Voltage:
-
380V three-phase 50Hz
-
Roller Diameter:
-
168mm, 219mm
-
Vibration frequency:
-
32HZ
-
Impact force:
-
5.5kN
-
Move speed:
-
8-10m/min
-
Paving thickness:
-
300mm
-
Certification:
-
ISO9001 CE
Product Description
Specification
|

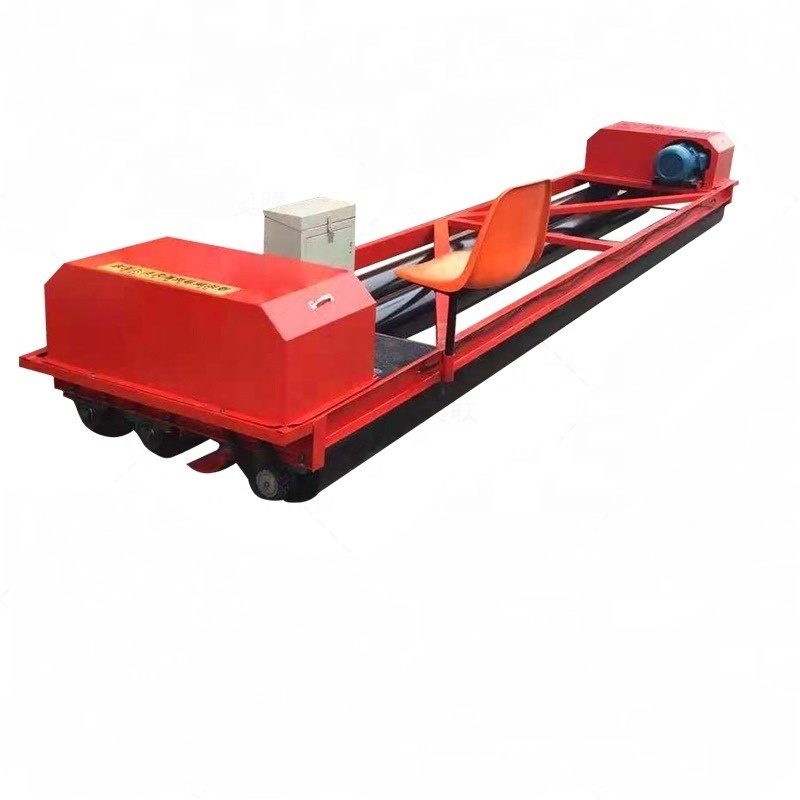

Concrete Roller Paver (three-roller)
|
|
|
|
Model
|
Yxt-219
|
|
|
Paving Width (m)
|
3--10
|
|
|
Vibrating Frequency (Hz)
|
40
|
|
|
Excitation Force (Kn)
|
5.52
|
|
|
Travel Speed (m/min)
|
8.4
|
|
|
Roller Diameter-3Rollers (mm)
|
219 each
|
|
|
Paving Thickness (mm)
|
300
|
|
|
Auger Rotation Speed (mm)
|
200
|
|
|
Strike Tube Rotation Speed Max (rpm)
|
300
|
|
|
Drive Tube Motor Rating (Kw)
|
7.5
|
|
|
Strike Tube Motor Rating (Kw)
|
3
|
|
|
Operating Weight (Kg)
|
1600
|
|
|
Dimensions (LxWxH mm)
|
Lx1803x815
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
