1.Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JORI
-
Dimension(L*W*H):
-
6400x965 x 1700mm
-
Weight:
-
1200 KG
-
Certification:
-
CE Certificate
-
Marketing Type:
-
New Product
-
Product name:
-
Semi Automatic Single Toilet Roll Wrapping Machine
-
Keyword:
-
toilet roll wrapping machine
-
Film material:
-
double heat-seal film bopp,spp
-
Film thickness::
-
0.018-0.03mm
-
Max film reel diameter::
-
380mm
-
Max film reel width::
-
430mm
-
Supply Power::
-
220V/50HZ
-
Mould::
-
2 sets matched
-
Scope of application::
-
Single roll for both core and non-core style
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JORI
-
Dimension(L*W*H):
-
6400x965 x 1700mm
-
Weight:
-
1200 KG
-
Certification:
-
CE Certificate
-
Marketing Type:
-
New Product
-
Product name:
-
Semi Automatic Single Toilet Roll Wrapping Machine
-
Keyword:
-
toilet roll wrapping machine
-
Film material:
-
double heat-seal film bopp,spp
-
Film thickness::
-
0.018-0.03mm
-
Max film reel diameter::
-
380mm
-
Max film reel width::
-
430mm
-
Supply Power::
-
220V/50HZ
-
Mould::
-
2 sets matched
-
Scope of application::
-
Single roll for both core and non-core style
Products Description

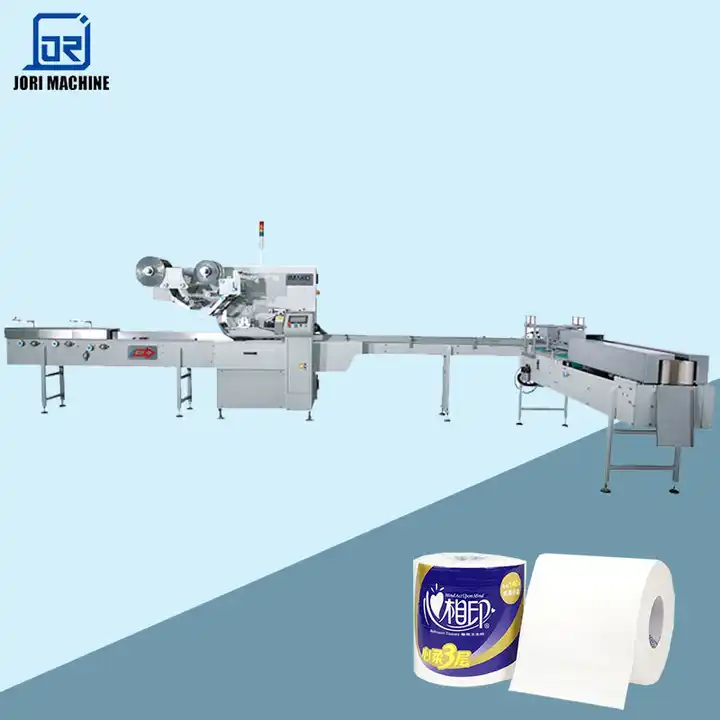

Full automatic single roll toilet tissue paper wrapping machine paper roll wrapping machine for small business
Function and structure characteristics:
1. Automatic single toilet roil packing machine features adopt to kitchen towel and toilet paper with core and without core
package .
2.Toile rolls feeding.put the packing film,vertical sealing,coreless rolis air exhaust,recersing all action control by servo
motor,have completely all function,high efficiency,simple operation,sprcifications to adapt to a wide range.the quick changeover
specifications,the advantages of convenient maintenance and low use cost.
3.Stable speed with core the maximum speed is 200rolls/min.
4.Stable speed without core the maximum speed is 150rolls/min.
5.It is adjustable the tissue length from 80mm-195mmomly set by electronic.
|
Model
|
JR220D
|
|
Scope of application:
|
Single roll for both core and non-core style
|
|
In-feed pattern:
|
ASF full automatic
|
|
Design speed:
|
35-240 rolls/min
|
|
Max stable operation speed(core roll):
|
180rolls/min
|
|
Max stable operation speed(non-core roll):
|
120rolls/min
|
|
Film installation structure:
|
double film support
|
|
Roll diameter:
|
90mm-120mm
|
|
Core roll length:
|
90-150mm
|
|
Non-coreroll length:
|
90-170nn
|
|
Mould:
|
2 sets matched
|
|
Machine dimension:
|
6645mm*2839mm*1680mm(L*W*H)
|
|
Machine weight:
|
about 1700kg
|
|
Film materials:
|
double heat-seal film bopp、spp
|
|
Film thickness:
|
0.018-0.03mm
|
|
Max film reel diameter:
|
380mm
|
|
Compressed air:
|
Pressure>5mpa; Rate of flow>150 L/min
|
|
Supply Power:
|
220V/50HZ
|
|
Total power:
|
2.885kw
|
Z450- -Function and structure characteristics:
1.Adopt PLC controlling, Low in system trouble,Stable in running.
2.Speed controller with inverter, It's easy to change packing speed by rotarying knob.
3.Digital-display function, It can display length of bag, packing speed, sealing temperature, capacity,etc.
4.Double-ways photoelectric tracking system, It can ensure the packing film to be cut in right place and accurate in cutting
point.
5.Equipped with leakage electricity protection switch, It can ensure security for operator and machine.
6.Installed with emergency-stop switch and cover before cutting. It can protect operator's hand to be hurted in wrong operation.
2.Speed controller with inverter, It's easy to change packing speed by rotarying knob.
3.Digital-display function, It can display length of bag, packing speed, sealing temperature, capacity,etc.
4.Double-ways photoelectric tracking system, It can ensure the packing film to be cut in right place and accurate in cutting
point.
5.Equipped with leakage electricity protection switch, It can ensure security for operator and machine.
6.Installed with emergency-stop switch and cover before cutting. It can protect operator's hand to be hurted in wrong operation.
|
Model
|
|
Z450
|
|
|
Packing speed
|
|
50-80bags/min
|
|
|
Film width range
|
|
300 -400mm
|
|
|
Finished bag size
|
Dia. of paper roll
|
100 -130mm
|
|
|
|
Bag length
|
70 -400mm (adjustable)
|
|
|
General power
|
|
3.75kw
|
|
|
Motor power
|
|
1.0;0.75kw
|
|
|
Machine weight
|
|
1200kg
|
|
|
Outer dimensions
|
|
6400x965 x 1700mm
|
|
|
Power supply type
|
|
220V 50Hz
|
|
|
Packing film
|
|
CPP, OPP,etc.
|
|
Function and structure characteristics:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and films.
2. Interface feature easy and quick setting and operation.
3. Self failure diagnosis and clear failure display.
4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, it is more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting time.
7. Use simple driving system, reliable working, and convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
Application:
Packaging various kinds of regular objects like biscuits,pies,chocolates,,bread,Instant noodles,moon-cakes,
drugs,daily appliances, industrial parts,paper boxes,plates,etc.
2. Interface feature easy and quick setting and operation.
3. Self failure diagnosis and clear failure display.
4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, it is more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting time.
7. Use simple driving system, reliable working, and convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
Application:
Packaging various kinds of regular objects like biscuits,pies,chocolates,,bread,Instant noodles,moon-cakes,
drugs,daily appliances, industrial parts,paper boxes,plates,etc.
|
Model
|
T-450D
|
|
Film width
|
Max.450mm
|
|
Bag length
|
100～450mm
|
|
Bag width
|
50-210mm
|
|
Product height
|
Max.80mm
|
|
Film roll diameter
|
Max.320mm
|
|
Packaging rate
|
30～150bags/min
|
|
Power
|
220V,50/60HZ,2.6kw
|
|
Machine size
|
(L)3990mm×(W)900mm×(H)1468mm
|
|
Machine weight
|
900kg
|
