Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
Nano N3061
-
Power:
-
15W
-
Chipset Type:
-
intel
-
Model:
-
Nano N3061
-
Color:
-
Metal gray
-
Processor:
-
Intel Core i3 10110U
-
RAM:
-
2*DDR4 2666MHz RAM slot,Max. 64GB
-
Storage:
-
1*M.2,1*2.5''SSD/HDD,support RAID 0/
-
LAN:
-
6*intel i225-v 2.5G Lans
-
Power supply:
-
DC-IN 12V
-
Display Port:
-
1*DP+1*HD
-
Certification:
-
FCC,CE,RoHS
-
key word:
-
Mini Box PC for Industrial control
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
GDDR4
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
Nano N3061
-
Power:
-
15W
-
Chipset Type:
-
intel
-
Model:
-
Nano N3061
-
Color:
-
Metal gray
-
Processor:
-
Intel Core i3 10110U
-
RAM:
-
2*DDR4 2666MHz RAM slot,Max. 64GB
-
Storage:
-
1*M.2,1*2.5''SSD/HDD,support RAID 0/
-
LAN:
-
6*intel i225-v 2.5G Lans
-
Power supply:
-
DC-IN 12V
-
Display Port:
-
1*DP+1*HD
-
Certification:
-
FCC,CE,RoHS
-
key word:
-
Mini Box PC for Industrial control
Notice:
This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

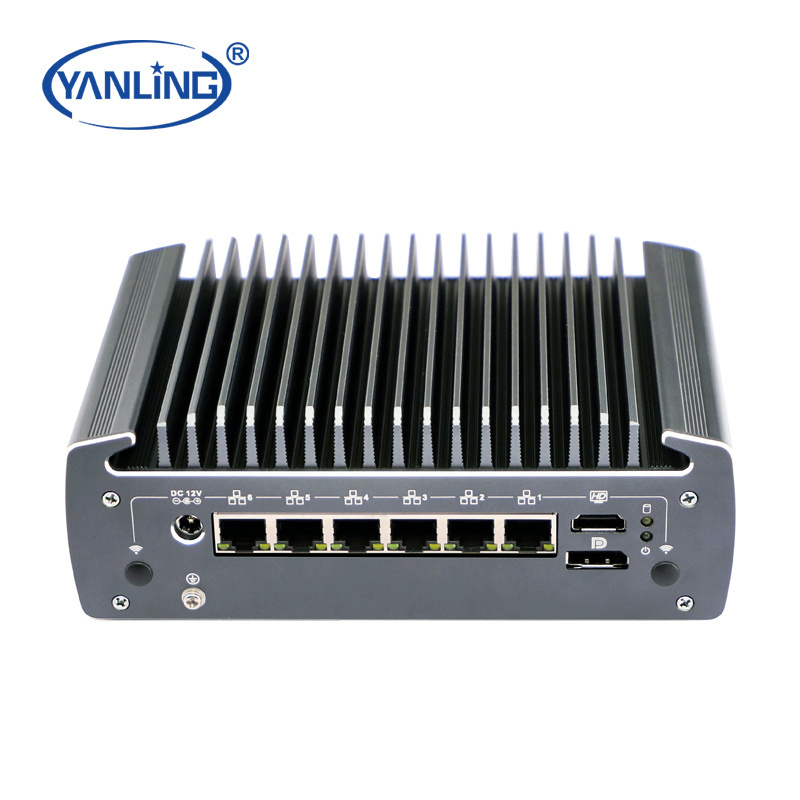

Yanling Fanless Mini PC i3/i5 10th IPC Industrial Computer with 2*POE optional Mini Box PC for Industrial control
email /skype : luckycai@ylgkdn.cn
Phone/Wechat/Whatsapp:
+86-15779748091
Specifications
|
Model
|
Nano N3061
|
|
Color
|
Metal gray (any color is optional)
|
|
Material
|
High-quality all aluminum,surface hard anodized
|
|
Processor
|
Intel Core
i3 10110U
(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz)
|
|
|
Intel Core
i5 10210U
(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz)
|
|
|
Intel Core
i7 10810U
(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz)
|
|
CPU Architecture
|
Elkhart Lake
|
|
Memory
|
2*DDR4 2666MHz SOIMM RAM slot,
Max. 64GB
|
|
BIOS
|
AMI UEFI BIOS
|
|
Chipset
|
Intel UHD Graphics
|
|
Display Port
|
1*DP,1*HD(Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz)
|
|
Front I/O
|
3*USB3.0,3*USB2.0,1*Power Switch,1*RJ45 COM(Support Console)
|
|
Rear I/O
|
6* RJ45 1000M Lan,1*DC,1*DP,1*HD
|
|
Expansion Slot
|
1*M.1 2280 M-Key slot(Support SATA protocol and NVME protocol)
|
|
|
1*M.2 3052 B-Key slot(Support USB3.0 protocol,support 4G/5G) ,1* Nano-SIM slot on the plate
|
|
|
1*M.2 2230 E-Key slot(Support WIFI/BT)
|
|
Network
|
6*intel i225-v 2.5G Lans
,LAN3-6 can be 802.3af standard POE lan(option)
|
|
Storage
|
1*M.2,1*2.5’’SSD/HDD,support RAID 0/1
|
|
Power Supply
|
DC 12V
|
|
Other Function
|
Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot, watchdog (level 0-255)
|
|
Work Temp
|
- 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow
|
|
Work Humidity
|
0% ～ 95% non-condensing
|
|
Dimension
|
186 * 126.5 * 66 mm
|
|
Weight
|
1.3 kg
|
|
Application
|
Firewall,VPN,Network server,Network security,Router etc.
|
Details Images
Packaging & Shipping
1.
Delivery Time:
1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2. Packaging Ways: Each pc for one neutral box;
3. Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
2. Packaging Ways: Each pc for one neutral box;
3. Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1. As a professional manufacturer and supplier of mini pc over 15 years,we win our customers with good quality,best service and competitive price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team serve for you diligently
4.Sample order is welcomed and will be delivered within 3 days.
5.We are Alibaba assessed 11 years Gold Supplier and more than 15 years industrial experience.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM service according to your requirements.
8.We provide 3 Years warranty for our products.
About us
Y
ANLING Industrial Computer Technology (Shenzhen) Co., Ltd
established in 2000, is headquartered in Shenzhen —a special economic zone at the forefront of China's reform and opening up.
YANLING is a new type of IT High-Tech enterprise approved and registered by relevant state departments, and it is also a integrated trade and production, resource-based enterprise including R&D, design, production, manufacturing, and sales.
YANLING is a new type of IT High-Tech enterprise approved and registered by relevant state departments, and it is also a integrated trade and production, resource-based enterprise including R&D, design, production, manufacturing, and sales.
YANLING
focuses on the R&D and manufacturing of fanless industrial pc, industrial touch panel pc, embedded fanless computer, mini pc, network server, motherboard, aluminum chassis and etc, and also provides OEM&ODM services.
Products have been widely used in many fields such as energy, medical, education, telecommunications, multimedia, network security, transportation, finance, electric power, environmental protection, automation equipment, etc.
Products have been widely used in many fields such as energy, medical, education, telecommunications, multimedia, network security, transportation, finance, electric power, environmental protection, automation equipment, etc.
YANLING
has obtained a number of utility model patents and appearance design patents, and has passed ISO9001, CCC, CE, FCC, ROHS,TUV, certifications and other qualification certifications.
YANLING also has many brands such as YANLING, Iwill, minisys, and XSK.
We have established long-term cooperative relations with many well-known companies with strong strength, reasonable prices,excellent services, and rich experience in R&D and manufacturing. The products are sold all over the world, and the OEM & ODM business has involved Southeast Asia, the Middle East, Europe, America, South Africa and other overseas countries and regions.
We have established long-term cooperative relations with many well-known companies with strong strength, reasonable prices,excellent services, and rich experience in R&D and manufacturing. The products are sold all over the world, and the OEM & ODM business has involved Southeast Asia, the Middle East, Europe, America, South Africa and other overseas countries and regions.
Our Services & Strength
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to
change.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to
change.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
