Quick Details
-
Brand Name:
-
KOOEN
-
Voltage:
-
According to customer
-
Dimension(L*W*H):
-
Different
-
Power (kW):
-
55
-
Weight (T):
-
5
-
Name:
-
Plastic Shredder
-
Application:
-
Recycle polyurethane foam /plastic
-
Usage:
-
recycling polyurethane foam /plastic shredder
-
Type:
-
Powerful Plastic Shredder
-
Color:
-
Client's Requirements
-
Product name:
-
plastic recycling Shredder Machine
-
Efficiency:
-
High Production Capacity Shredder
-
Keyword:
-
Twin Shaft polyurethane foam /plastic Shredder
-
Other name:
-
Single Shaft polyurethane foam /plastic Shredder
-
Product keywords:
-
shredder for polyurethane foam /plastic
Quick Details
-
Max.Production Capacity (kg/h):
-
10000
-
Place of Origin:
-
Jiangsu, China (Mainland)
-
Production Capacity (kg/h):
-
300 - 10000 kg/h
-
Brand Name:
-
KOOEN
-
Voltage:
-
According to customer
-
Dimension(L*W*H):
-
Different
-
Power (kW):
-
55
-
Weight (T):
-
5
-
Name:
-
Plastic Shredder
-
Application:
-
Recycle polyurethane foam /plastic
-
Usage:
-
recycling polyurethane foam /plastic shredder
-
Type:
-
Powerful Plastic Shredder
-
Color:
-
Client's Requirements
-
Product name:
-
plastic recycling Shredder Machine
-
Efficiency:
-
High Production Capacity Shredder
-
Keyword:
-
Twin Shaft polyurethane foam /plastic Shredder
-
Other name:
-
Single Shaft polyurethane foam /plastic Shredder
-
Product keywords:
-
shredder for polyurethane foam /plastic

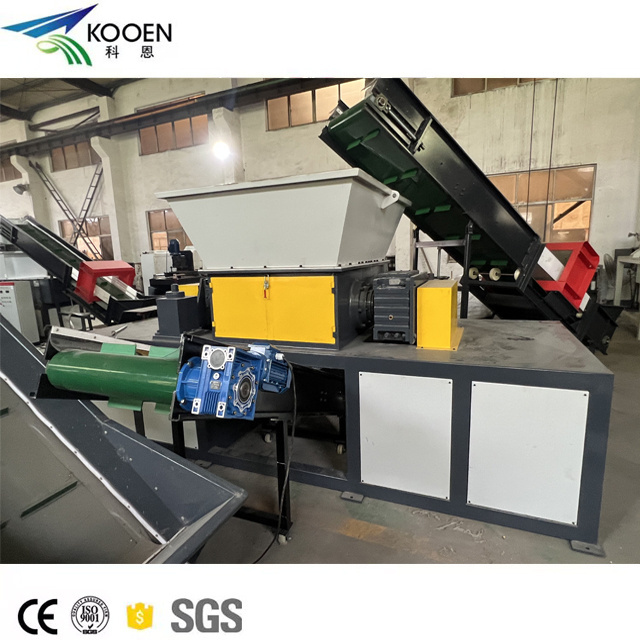

KOOEN machine single shaft Customizable shredder/polyurethane foam shredder/plastic mini shredder
KES/KESB series of single shaft shredder machine
KES/KESB series of single shaft shredder parameters:
|
Model |
Motor power (KW) |
QTY. of moving blades |
QTY. of fixed blades |
Capacity (kg/hour) |
|
KES-4060 |
30 |
34 |
4 |
300kg/h |
|
KES-4080 |
37 |
46 |
4 |
500kg/h |
|
KES-40100 |
45 |
58 |
4 |
1000kg/h |
|
KES-40120 |
55 |
70 |
6 |
1500kg/h |
|
KES-40150 |
75 |
88 |
6 |
2000kg/h |
|
KESB-48120 |
90 |
102+33 |
3 |
1000-1200kg/h |
|
KESB-48150 |
90 |
102+33 |
3 |
1500-2000kg/h |
|
KESB-48200 |
55+55 |
177 |
4 |
3000kg/h |
|
KESB-48250 |
55+55 |
102+33 |
4 |
4000kg/h |
Application:
Suitable for shredding materials, such as plastic lumps, plastic bottle/containers, plastic pipes, plastic film (LDPE agriculture film, PP woven bags etc), wood, paper, aluminum cans, fiber, etc.
(Note, KESB is our Swing-arm heavy model single shaft shredder machine with big shredding cavity, suitable shredding big size materials such wooden pallets, etc. )
More photos:
|
|
KES single shaft shredder machine (Hopper - Fixed model). |
|
|
KES single shaft shredder machine (Hopper - moving model).
It not only can shredding conventional materials, but also be more suitable for shredding plastic pipes
|
|
|
KESB series swing-arm heavy duty shredder machine with big shredding arms.
Suitable shredding big size materials such wooden pallets, baled plastic films/bags, etc |
|
|
Fix blade+ moving blade
Blade materials is SKD-11, from Japan |
|
|
Main shaft
Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness;
|
|
|
Screen structure
Different mesh structure and different mesh diameter are used for shredding different materials |
|
|
Main motor we use world famous brand motor
|
|
|
Gearbx we use the best gearbox from China
|
|
|
Electric parts we use world famous brand electric components
|
|
(KES/KESB series of single shaft shredding machine)Application Area:
|
|
*****************************************************************************************************************************************************
KESD/KED Series of double shaft shredder machine
KESD/KED Series of double shaft shredder parameters
|
Model |
Motor power (KW) |
Thickness of blade (mm) |
Rotation speed (r/min) |
Capacity (kg/hour) |
|
KESD-2140 |
7.5 |
20 |
17 |
100-200kg/h |
|
KESD-2180 |
7.5+7.5 |
20 |
15 |
300kg/h |
|
KESD-3280 |
15+15 |
20 |
15 |
500kg/h |
|
KESD-32100 |
22+22 |
40 |
15 |
1000kg/h |
|
KESD-32120 |
30+30 |
40 |
15 |
1500-2000kg/h |
|
KESD-40130 |
37+37 |
40 |
14 |
3000kg/h |
|
KESD-40160 |
45+45 |
50 |
11 |
4000-5000kg/h |
|
KED-800 |
30KW*2 |
78 |
6 |
500-800kg/h |
|
KED-1000 |
37KW*2 |
96 |
6 |
1000kg/h |
|
KED-1200 |
45KW*2 |
114 |
9 |
1500kg/h |
|
KED-1500 |
55KW*2 |
142 |
9 |
2000kg/h |
Application:
Applicable to Plastic containers/crate, Timber, Aluminum profile, Iron/metal, Home Appliance, Tire, Plastic film (LDPE agriculture film/ PP woven bags), etc
(Note: KED series two rotors shaft shredder is special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags, jumbo bags, big bags, etc)
More photos:
|
|
KESD series double shaft shredder machine |
|
KESD double shaft shredder machine main shaft with moving blade
Main shaft through nitriding treatment, ensure hardness; Blade materials is SKD-11, from Japan |
|
|
|
KED series two rotor shredder machine
Special designed by our company to shredding soft plastics, such LDPE agriculture films, LLDPE strength films, PP woven bags, jumbo bags, big bags, etc |
|
|
KED two rotors shredder machine main shaft with moving blade
Main shaft through linear cutting method, ensure accuracy, it also through nitriding treatment, ensure hardness; Blade materials is SKD-11, from Japan |
|
|
Main motor we use world famous brand motor
|
|
|
Electric parts we use world famous brand electric components
|
|
(KESD/KED Series of double shaft shredding machine )Application Area:
|
|
KOOEN company more plastic recycling machine for reference:
