Product Description

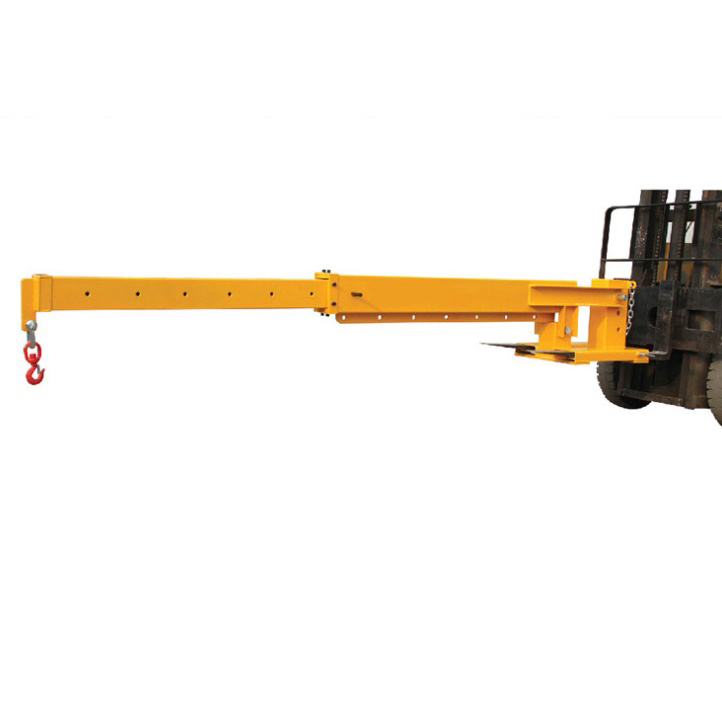

extendable forklift jib fork mounted crane jib forklift crane attachment
Fork mounted crane jib can be quickly and easily attached to the forks of a forklift truck or telehandler.
Extendable forklift jibs are very similar to the normal fork mounted jib,the extending version allows for the movement of long and awkward loads from inaccessible and hard to reach areas.
The angles forklift attachment consists of an angled extendable beam with a lifting hook at the end.
Simply slide onto fork tines,clamp them down with the thumb screws for safety and attach the hook to your load.
Angle and beam length adjustable.
Forklift jib can easily convert your forklift into a mobile crane .Beam of forklift jib is telescopic so that can lift higher and place your load further.
It then provides a safe and effective solution for lifting many items including construction materials,machinery or work tools.
It then provides a safe and effective solution for lifting many items including construction materials,machinery or work tools.
Extendable forklift jibs are very similar to the normal fork mounted jib,the extending version allows for the movement of long and awkward loads from inaccessible and hard to reach areas.
The angles forklift attachment consists of an angled extendable beam with a lifting hook at the end.
Simply slide onto fork tines,clamp them down with the thumb screws for safety and attach the hook to your load.
Angle and beam length adjustable.
parameters of forklift jib
Versions of forklift jib
Horizontal telescopic forklift jib
Galvanized horizontal forklift jib
|
|
A
|
B
|
C
|
D
|
|||
|
beam length/mm
|
780
|
1200
|
1580
|
1960
|
|||
|
capacity/kg
|
4750
|
2400
|
1800
|
1500
|
|||
|
fork inner width
|
100mm
|
|
|
|
|||
|
fork size
|
180*60mm
|
|
|
|
|||
|
Dimensions
|
1300*475*500mm
|
|
|
|
|||
|
net weight
|
130kg
|
|
|
|
|||
