Quick Details
-
Type:
-
solid liquid separator
-
Use:
-
Separate solids and liquids
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
USEWELL
-
Application:
-
Animal Waste
-
Product name:
-
Solid Liquid machine
-
Name:
-
Solid Liquid machine
-
Function:
-
Solid Liquid machine
-
Keywords:
-
Solid Liquid machine
-
Usage:
-
Agriculture Machiney Farm Equipments
-
Raw material:
-
Steel
-
Power:
-
4-11kw
-
Color:
-
blue/green
-
Feature:
-
Easy Operation
Quick Details
-
Weight (KG):
-
420
-
Video outgoing-inspection:
-
Available
-
Marketing Type:
-
Hot Product 2023
-
Type:
-
solid liquid separator
-
Use:
-
Separate solids and liquids
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
USEWELL
-
Application:
-
Animal Waste
-
Product name:
-
Solid Liquid machine
-
Name:
-
Solid Liquid machine
-
Function:
-
Solid Liquid machine
-
Keywords:
-
Solid Liquid machine
-
Usage:
-
Agriculture Machiney Farm Equipments
-
Raw material:
-
Steel
-
Power:
-
4-11kw
-
Color:
-
blue/green
-
Feature:
-
Easy Operation
Product Description

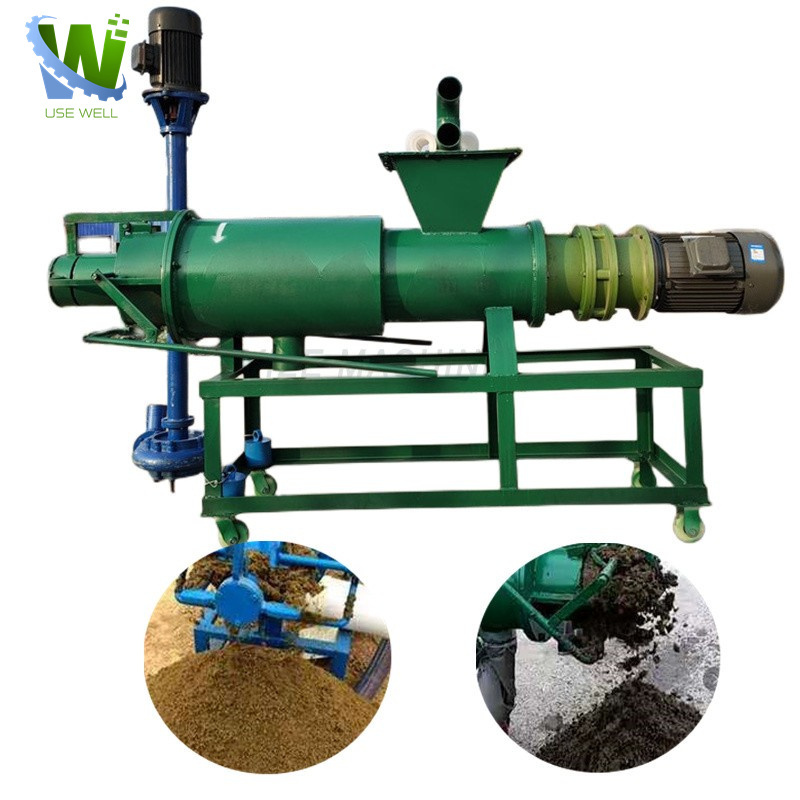

Farm animal feces dehydrator solid-liquid separation machine Environmental friendly dry and wet feces pumping machine
Wet solid liquid separator is a kind of animal manure dewatering machine, which can separate the original manure water of pig manure, duck manure, cow manure, chicken manure and other livestock manure into liquid organic fertilizer and solid organic fertilizer. Liquid organic fertilizer can be directly used for crop utilization and absorption, solid organic fertilizer can be transported to fertilizer shortage areas for use, can also play a role in improving soil structure, and can be made into organic compound fertilizer after fermentation. The slurry pump is used to send the original fecal water to the machine, and the solid material is extruded and separated through the spiral shaft placed in the screen, and the liquid is discharged from the outlet through the screen.
Specification
|
Model
|
180
|
200
|
280
|
300
|
400
|
800
|
1200
|
|||||
|
power
|
220V/380V
|
380V
|
380V
|
380V
|
380V
|
220V/380V
|
380V
|
|||||
|
main motor power(KW)
|
4
|
5.5
|
7.5
|
7.5
|
11
|
4
|
5.5
|
|||||
|
motor power(kw)
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|||||
|
feed port（mm）
|
76
|
76
|
76
|
76
|
76
|
76
|
76
|
|||||
|
outfall(mm)
|
102
|
102
|
102
|
102
|
102
|
102
|
102
|
|||||
|
boundary dimension(mm)
|
1800*1300*500
|
2100*1400*500
|
2300*1400*600
|
2400*1400*600
|
2700*1400*800
|
/
|
/
|
|||||
|
total weight(kg)
|
230
|
360
|
400
|
420
|
600
|
320
|
380
|
|||||
|
materials
|
steel
|
|
|
|
|
stainless steel
|
|
|||||
|
Extraction of liquid(m³/h)
|
20
|
20
|
25
|
25
|
35
|
20
|
25
|
|||||
|
Output liquid(m³/h)
|
1.5-2
|
2-3
|
4-5
|
6-7
|
10-12
|
2-3
|
4-5
|
|||||
Product Details
Solid-liquid separators generally include the following parts:
Feeding system: Liquid containing suspended matter or solid particles is introduced into the equipment.
Separation system: Using principles such as filtration, the solid particles are separated from the liquid and concentrated in one area.
Slag removal system: the separated solid material is discharged from the equipment for subsequent treatment.
Liquid discharge system: The clean liquid that has been separated is discharged.
The advantages of the machine：
The advanced nature of dry and wet separator: the series of machines have strong decontamination ability, no blockage, and easy cleaning. The removal rate of solid content, chemical oxygen consumption, total oxygen consumption, nitrogen and phosphorus in the treated fecal water can be between 70-95%.
Durability: The frame, screen frame, screen and so on of this series of machines are made of stainless steel and anti-corrosion treatment, corrosion resistance, high strength, long service life. Economy: The series has high degree of automation, low power consumption and low price. Easy to operate just press the start stop button to operate.
This machine is recommended for use on farms
1) For the old biogas tank originally built by farmers, the volume is too small, and the drainage time of sewage into the tank is too short, resulting in high sewage concentration discharge, then the livestock and poultry feces solid-liquid separation machine is used before the sewage is submerged in the tank. It can effectively reduce the COD and BOD content of sewage, reduce the operating load of biogas digester, and achieve the reduction and reduction of sewage discharge;
2) The use of dry and wet separators can convert feces in fresh sewage into valuable fish feed or organic fertilizer. The separated sewage intermittently enters the biogas digester； This allows the anaerobic tank to have a full digestion time. Make the active bacteria in the tank more vigorous reproduction, higher gas production
2) The use of dry and wet separators can convert feces in fresh sewage into valuable fish feed or organic fertilizer. The separated sewage intermittently enters the biogas digester； This allows the anaerobic tank to have a full digestion time. Make the active bacteria in the tank more vigorous reproduction, higher gas production
Processing object
Cow feces, duck feces, pig feces, chicken feces, septic tank, soybean pulp, paper pulp, kitchen rice residue, bagasse, sludge,slaughter sewage, beer grains, Chinese medicine residue
Solid-liquid separators can be used in a variety of industries, such as environmental protection, food and beverage, chemical,pharmaceutical, textile, etc. Specific applications are as follows:
Environmental protection field: It can be used to treat wastewater containing more suspended matter, separating solid impurities,sludge, grease and other substances in wastewater to achieve cost saving and environmental protection purposes.
Food and beverage field: In the food and beverage processing process, solid-liquid separators can be used to separate impurities or particles suspended in the liquid, thereby improving product quality.
Chemical and pharmaceutical fields: Solid-liquid separators can be used to separate impurities and solid particles from liquids,and are commonly used to extract or purify compounds in chemical and pharmaceutical production.
In summary, solid-liquid separators have applications in many fields, helping to optimize and improve the production process，thereby improving product quality and production efficiency
