Quick Details
-
Place of Origin:
-
Anhui, China
-
Dimension (L*W*H):
-
1300mm(W)*2300mm(H)*800mm(D)
-
Weight:
-
Approx 1.6T
-
Product name:
-
INDUSTRIAL AND COMMERCIALENERGY STORAGE SYSTEMS
-
Keywords:
-
Storage System Container
-
OEM/ODM:
-
Accepatable
-
Apllication:
-
INDUSTRIAL AND COMMERCIALENERGY
-
battery module:
-
1P16S/51.2V/120Ah
-
AC maximum discharge current:
-
45A
-
Sustainable charging power:
-
30KW
-
Rated AC voltage:
-
380V
-
Rated DC side voltage:
-
768V
Quick Details
-
Battery Type:
-
Lithium Ion
-
Model Number:
-
SW-92kwh
-
Brand Name:
-
SUNWAY
-
Place of Origin:
-
Anhui, China
-
Dimension (L*W*H):
-
1300mm(W)*2300mm(H)*800mm(D)
-
Weight:
-
Approx 1.6T
-
Product name:
-
INDUSTRIAL AND COMMERCIALENERGY STORAGE SYSTEMS
-
Keywords:
-
Storage System Container
-
OEM/ODM:
-
Accepatable
-
Apllication:
-
INDUSTRIAL AND COMMERCIALENERGY
-
battery module:
-
1P16S/51.2V/120Ah
-
AC maximum discharge current:
-
45A
-
Sustainable charging power:
-
30KW
-
Rated AC voltage:
-
380V
-
Rated DC side voltage:
-
768V

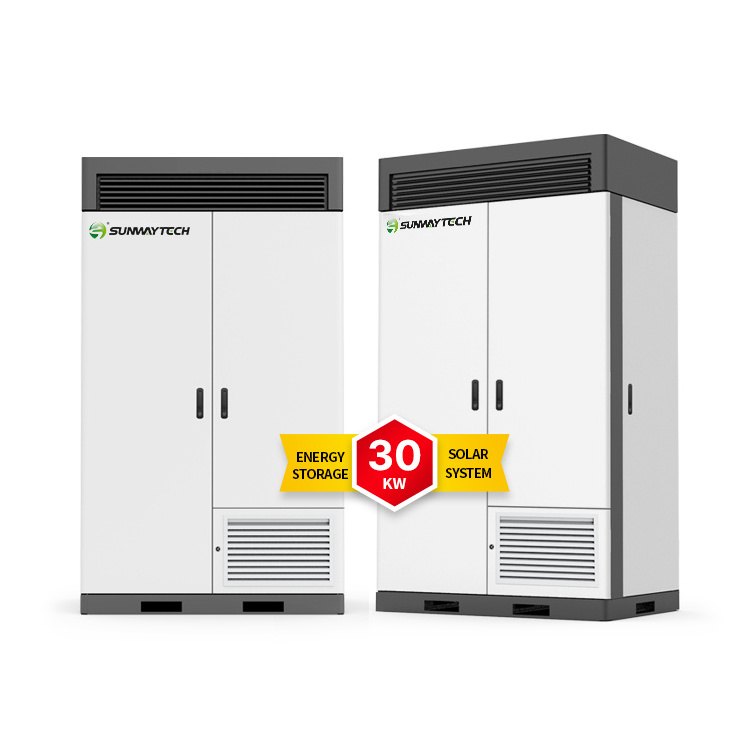

INDUSTRIAL AND COMMERCIALENERGY STORAGE SYSTEMS
This product is used for power storage in power eneray storage systems. The battery route is an aluminum-shell lithium ironhosphate battery. The modular design of the battery pack makes it easy to transport, install, and maintain. The battery packcan monitor and store battery pack parameters in real time to achieve local protection. Meets applications such as peakshaving, peak shaving and valley filling, and of-grid backup power supply for power energy storage systems
Product Parameters
|
Total energy
|
92kWh,25℃@0.5c rated
|
|
Rated DC side voltage
|
768V
|
|
DC side working voltage
|
672~864V
|
|
Sustainable charging power
|
30KW
|
|
Sustainable discharge power
|
30KW
|
|
Conversion efficiency
|
DC side ≥94%(25℃,0.5C)
|
|
AC maximum discharge current
|
45A
|
|
Weight
|
Approx 1.6T
|
|
Operating environment
|
Below 2000 meters above sea level
|
|
Thermal management
|
HVAC 3.5kW forced air cooling
|
|
On grid/Off-grid mode
|
Manual/automatic (STS)
|
|
AC output
|
1P+N/3P+PE/3P+N+PE
|
|
Rated AC voltage
|
380V
|
|
Output harmonics
|
≤3%
|
|
Voltage range
|
-15%～+15%
|
|
Frequency range
|
Rated frequency ±3Hz
|
|
Unbalanced load carrying capacity
|
1
|
|
Power factor adjustable range
|
-1~1
|
|
Fire extinguishing method
|
Aerosol automatic fire extinguishing
|
|
System protection level
|
IP54
|
If you need other parameters, you can
contact us
, we have our own factory, and professional engineers, support customization.
