Quick Details
-
Brand Name:
-
keyu
-
Type:
-
Float Valves, BALL VALVES
Quick Details
-
Port Size:
-
1/2 3/4
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
WK
-
Brand Name:
-
keyu
-
Type:
-
Float Valves, BALL VALVES
- Quiet
- Stability
- Quick stop
- Long lifetime
- Non-polluting
- Less abrasion
- Corrosion-resistant
-
Quick water flow rate

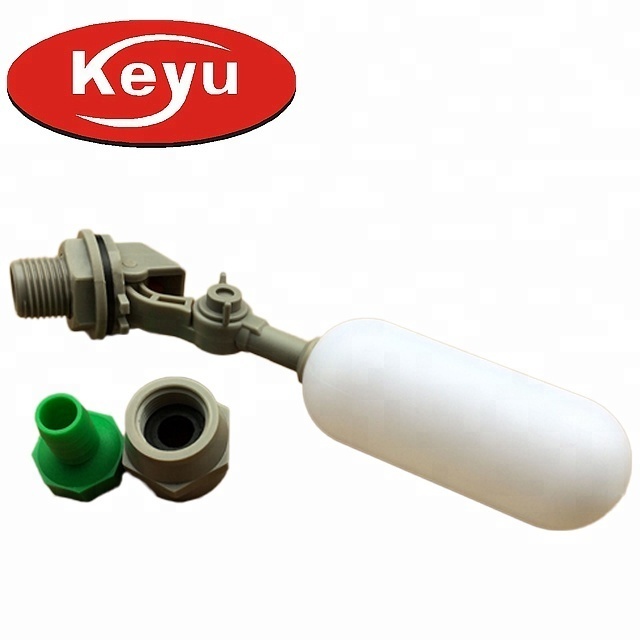

| Mode | 1/2" small plastic float valve DN15WK |
| Install Size | 172.6mm(Maximum) |
| Thread | 1/2" Inch |
| Body Material | ABS( Acrylonitrile Butadiene Styrene plastic ) |
| Float Ball Material | PE( Polyethylene) |
| Seals Material | SR(Silicon Rubber) |
| Working Pressure | 0.01- 1.2Mpa(0.1Mpa=1Bar=14.5Psi) |
| Working Temperature | 0-70°C |
The actual application depends on the specific circumstances
DN15WK plastic float valve can be installed in
small water tank, ice maker machine,
humidifier, aquariums, gardening, livestock, etc.
Loose the screw on the arm to adjust the float position and achieve the horizontal and vertical installation. Each of install method will not affect the performance.
Tips
1.If the body and pipe joint leak water, please check water tape is wrapped and the pipe joint is tighted.
2.The Strength should suitable when tight and fix the float valve, too much excessive strength will damage the valve.
3.Please check the water inlet filter regularly and remove the garbage out in time.
4.Please do not use the cleanser which will cause damage when clean the float valve.
Supporting OEM and ODM service
High temperature ,material requests, strong acid and alkali custom service.
Packaging
| Multiple of 300 |
| 53X53X48 cm |
| 15.0 KG |
|
1/2 Small Plastic Automatic Water Fill Valve For ice maker machine, humidifier wrapped by bubble bag, packed by carton
|
