Quick Details
-
Brand Name:
-
Wordfik
-
Dimension(L*W*H):
-
222x258x125 mm
-
Weight:
-
4.2 KG
-
Article number:
-
ZC0060P
-
Port size:
-
G2"
-
Rated airflow (m³/h):
-
300
-
Temperature range:
-
15 ~95 Celsius
-
Filter media:
-
Air
-
Function:
-
Dust Filtration
-
Color:
-
Black
-
Customization:
-
Acceptable
Quick Details
-
Efficiency:
-
99%
-
Porosity:
-
5 um
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wordfik
-
Dimension(L*W*H):
-
222x258x125 mm
-
Weight:
-
4.2 KG
-
Article number:
-
ZC0060P
-
Port size:
-
G2"
-
Rated airflow (m³/h):
-
300
-
Temperature range:
-
15 ~95 Celsius
-
Filter media:
-
Air
-
Function:
-
Dust Filtration
-
Color:
-
Black
-
Customization:
-
Acceptable
Product Description

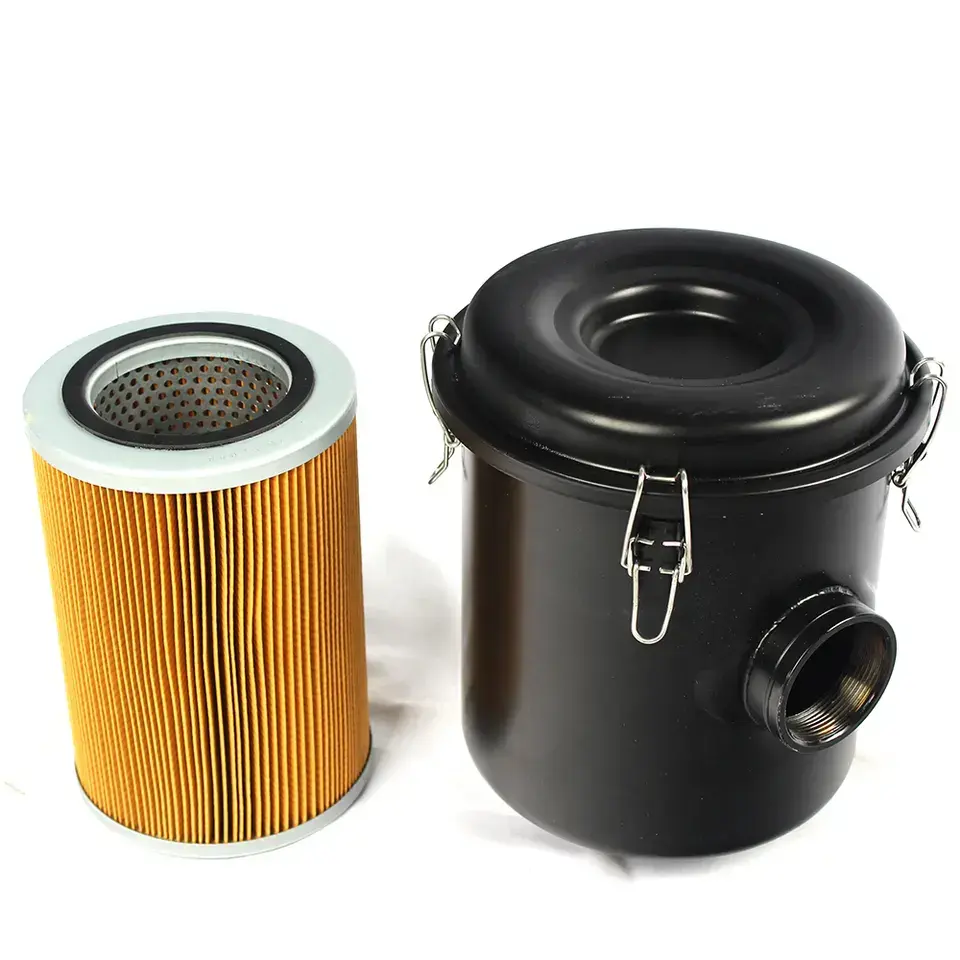

F series vacuum pump air filter assembly and air filter element
Details:
1、The snap type locking cover is adopted, which makes it easy to replace the filter element
Details:
2、Use a vacuum filter to prevent dirt and dust in the air from entering the vacuum pipe and damaging the vacuum equipment. (the filter element can be replaced)
Details:
3、The shell is made of carbon steel, durable and suitable for installation at the inlet of electric vacuum pump.
Details:
4、Multi style connectors can be used to connect vacuum equipment
Overall dimension of filter
Size of filter element
|
Air filter
|
Flow (m³/h)
|
Weight (kg)
|
A
|
B
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
Article number
|
|
F002
|
32
|
1
|
G 1/2"
|
G 1/2"
|
101
|
90
|
53
|
70
|
ZC0020P
|
|
F002-1
|
42
|
1
|
G 3/4"
|
G 3/4"
|
101
|
90
|
53
|
70
|
ZC0021P
|
|
F004-1
|
90
|
1.4
|
G1"
|
G1"
|
146
|
110
|
70
|
75
|
ZC0041P
|
|
F004
|
100
|
1.4
|
G1 1/4"
|
G1 1/4"
|
146
|
110
|
70
|
75
|
ZC0040P
|
|
F003
|
120
|
2.3
|
G1 1/4"
|
G1 1/4"
|
185
|
170
|
115
|
130
|
ZC0030P
|
|
F003-1
|
150
|
2.3
|
G1 1/2"
|
G1 1/2"
|
185
|
170
|
115
|
130
|
ZC0031P
|
|
F006
|
300
|
4.2
|
G2"
|
G2"
|
222
|
258
|
125
|
240
|
ZC0060P
|
|
F006-1
|
300
|
4.2
|
G3"
|
G3"
|
222
|
258
|
125
|
240
|
ZC0061P
|
|
F008
|
400
|
4.5
|
G4"
|
G4"
|
335
|
410
|
260
|
300
|
ZC0080P
|
|
Air filter element
|
D1
(mm)
|
d
(mm)
|
H
(mm)
|
Filter element No
|
|
F002
|
65
|
38
|
69
|
FG02540
|
|
F002-1
|
65
|
38
|
69
|
FG02540
|
|
F004-1
|
98
|
60
|
70
|
FG63100
|
|
F004
|
98
|
60
|
70
|
FG63100
|
|
F003
|
128
|
65
|
125
|
FG0150L
|
|
F003-1
|
128
|
65
|
125
|
FG0150L
|
|
F006
|
150
|
88
|
222
|
FG0300L
|
|
F006-1
|
150
|
88
|
222
|
FG0300L
|
|
F008
|
270
|
165
|
360
|
FG0400L
|
Specification
|
item
|
F006 Industrial Vacuum Pump Inlet Air Filter Barrel Bucket Cartridge Filter Vacuum System Replacement Cartridge Dust Filtration
|
|
Applicable Industries
|
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other
|
|
Video outgoing-inspection
|
Not Available
|
|
Machinery Test Report
|
Not Available
|
|
Warranty of core components
|
Not Available
|
|
Core Components
|
PLC, Engine, Bearing
|
|
Condition
|
New
|
|
Efficiency
|
99%
|
|
Construction
|
Bag Filter
|
|
Porosity
|
5um
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Wordfik
|
|
Dimension(L*W*H)
|
222x258x125 mm
|
|
Weight
|
4.2 KG
|
|
Warranty
|
Unavailable
|
|
Anicle numbe
|
ZC0060P
|
|
Pon size
|
G2"
|
|
Rated airflow (m³/h)
|
300
|
|
Filter media
|
Air
|
|
Temperature range
|
15 ~95 Celsius
|
|
Function
|
Dust Filtration
|
|
Color
|
Black
|
|
Customization
|
Acceptable
|
Packing & Delivery >>
Short-distance transportation and light-weight products are recommended to choose cartons to save freight;
Long-distance transportation and heavy-weight products are recommended to choose wooden boxes, better protection of products from damage during transportation.
