Quick Details
-
Product name:
-
Key switch Exit Button
-
Output Contact:
-
NO/NC/COM
-
Mount:
-
Mortise Mounted
-
Key:
-
Default with 2 same keys. Optional different keys
-
Material:
-
0.9mm thick 304 stainless steel plate
-
Package:
-
100pcs/20.5kg/50*45*28cm/ctn
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
camel
-
Model Number:
-
S86K
-
Product name:
-
Key switch Exit Button
-
Output Contact:
-
NO/NC/COM
-
Mount:
-
Mortise Mounted
-
Key:
-
Default with 2 same keys. Optional different keys
-
Material:
-
0.9mm thick 304 stainless steel plate
-
Package:
-
100pcs/20.5kg/50*45*28cm/ctn
-
Certification:
-
CE
Factory wholesale two positions access control electrical key switch exit button with key lock push button switch
Different sizes (86*86mm, 86*50mm, 115*70mm , 115*40mm plates), lanauges and symbol options for the key Switch Exit Button:
Exit Button leading manufaturer Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Keyswitch is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.
S86K Series product is European size, also called sqaure size Keyswitch, we also provide elegant style square size backbox M86 for surface mount. It is screw terminal for easy installation and nice looking.
Factory price 22MM Big Mushroom Push To Exit Button For Access Control CE, ROHS Key Advantages
1, strong and durable 304 stainless steel button and panel, laser printing for years last
2, 86*86mm square size is good for European countries and other countries at this size.
3, OEM your sign is welcomed.
4, color cables included, it save your time and energy when installation
5, screw type terminal installation for easy use
6, M86 Backbox is optional for surface mount.
7, carry CE RoHS Certification, CE at 2014/30/EU and RoHS at 2011/65/EU
8, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.

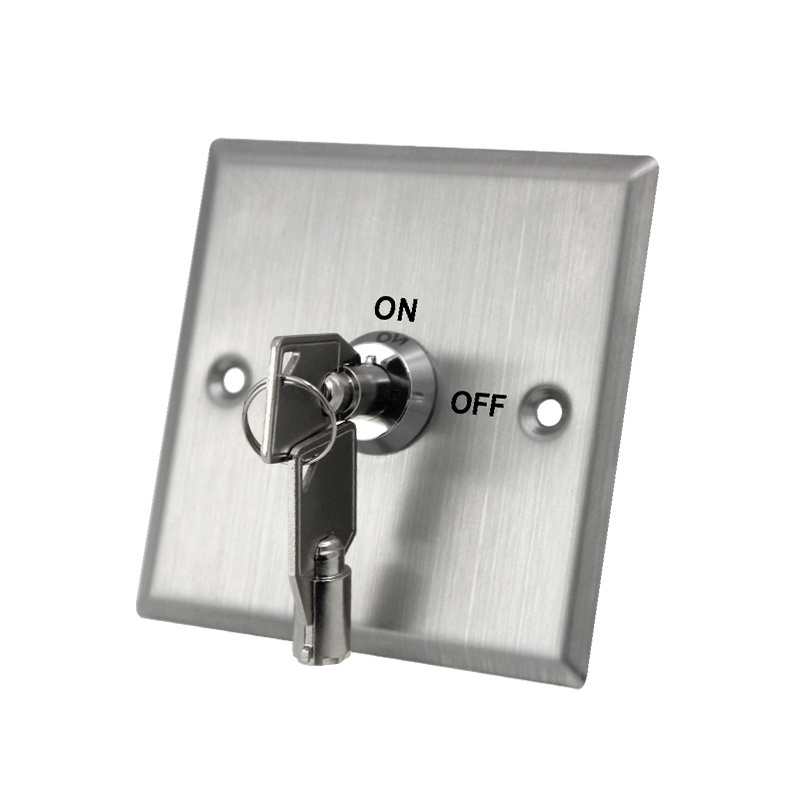

Wholesale Factory price key switch Exit Button For Access Control CE, ROHS pictures as below:
Datasheet for Factory wholesale two position access control electrical key switch exit button with Access Control CE, ROHS
| Size | 86W*86L*25H (mm) |
| Material | 304 Stainless Steel Faceplate. Default with 2 keys |
| Current | 3A @36V DC Max. |
| Mechanical Life | 500,000 times tested |
| Output Contacts | N.O/N.C/COM |
| Working Temperature | 10 - 55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 100pcs/14kg/50*45*28cm/ctn |
More optional models available to satfisfy your different need.
Factory wholesale two position access control electrical key switch exit button For Access Control CE, ROHS Application for reference.
