- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/220v/415v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PRECISION4TECH
-
Model Number:
-
PRE-1124
-
Warranty:
-
12 months
-
Color:
-
Customized Color
-
Lighting System:
-
Ceiling Light
-
Usage:
-
Baking Spray Paint Booth
-
Fans kind:
-
Centrifugal fans
-
Wall Panel:
-
container
-
Product name:
-
spray booth
-
Certificate:
-
ce
-
Material:
-
container
Quick Details
-
Power:
-
12KW
-
External Size:
-
8160*4600*2400 mm
-
Internal Size:
-
7000*4000*2200 mm
-
Voltage:
-
380v/220v/415v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PRECISION4TECH
-
Model Number:
-
PRE-1124
-
Warranty:
-
12 months
-
Color:
-
Customized Color
-
Lighting System:
-
Ceiling Light
-
Usage:
-
Baking Spray Paint Booth
-
Fans kind:
-
Centrifugal fans
-
Wall Panel:
-
container
-
Product name:
-
spray booth
-
Certificate:
-
ce
-
Material:
-
container
|
MODEL
|
PRE-1124

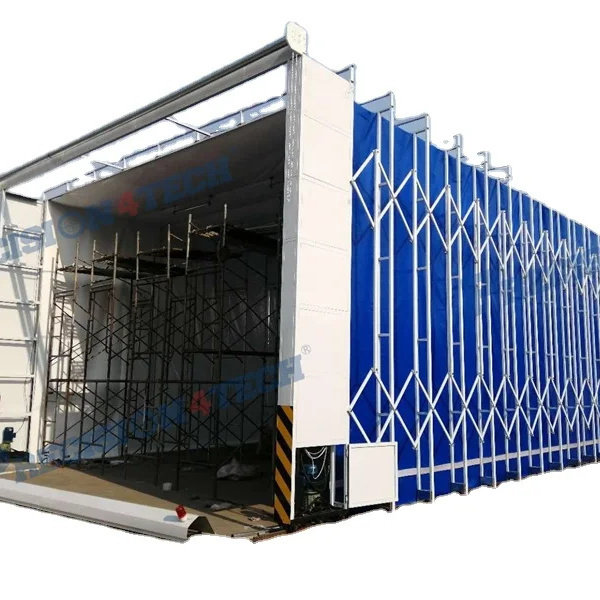

Tunnel retracted paint booth |
UPDATE
|
2020/11/26
|
||
|
Inside Size
|
7000×4000×2200 mm（L×W×H）
|
Outside Size
|
8160×4600×2400（L×W×H）
|
||
|
Front Door
|
Manual PVC curtains: 4000×2200 mm (W×H) , 50mm EPS wall panel as te side door frame .
|
|
|
||
|
Support Structure
|
Made up by galvanized square tube and powder coating
|
|
|
||
|
Track
|
No track , equip wheels , two workers can open and close manual operation
|
|
|
||
|
Sealing cloth
|
High Tenacity Polyester PVC Flame Retardant Fabric ; on both sides of cabin. Flame retardant weight 500g/m2, Color :blue outsite
and white inside |
|
|
||
|
Intake&Exhaust System
|
Air inlet : 3 pcs 300mm-600mm pre-filter frame on the both side door frame
Air exhasut : Back paint cabinet , 4000mm-1000mm-2400mm, one layer 1000mm high fiberglass filter cotton , 3 layers activated carbon brick with 2 sets 5.5kw centrifugal fan (fan box covered by sound-proof) , the total air capacity is 30,000m3/h , equip air duct
|
|
|
||
|
Lighting System
|
Ceiling lights : 12 units LED ATEX-Proof light
Side lights :12 units LED ATEX-Proof light
|
|
|
||
|
VOCS On-line inspection equipment
|
VOCS On-line inspection equipment :PID photoion detection technology , system range is 0-1000 ppm , examination range is 0-50ppm ,0-100ppm, 0-500 ppm ; resolution is 0.1 ppm ; powder supply is 4-20kmA DC three-wire system maximun load resistance 500 Ω , RS485
output |
|
|
||
|
Purification System
|
Pre-filter: on the air inlet to prevent large dust and other impurities;
Fiberglass filter cotton: from paint cabinet . To prevent paint mist go outside.
Activated carbon brick : from paint cabinet . To prevent paint smell go outside.
|
|
|
||
|
Control System |
Power supply switch, light switch , emergency stop, breakdown alarm, etc. All electrical parts are from SCHNEIDER.
|
|
|
||
|
Power supply
|
12 KW ; 240v ,1ph ; 415v ,3ph
|
|
|
||
Started as machinery manufacture in 2003, Precision focused on manufacturing for auto lift and auto body collision repair bench and parts till today. At the meaning time, standard paint booth and customzied paint booth are gradually included in the business line. As requirements of new open workshops and some certain distributors,we set up 2 sales teams for international market.One team is to supply very professional consult and service for manufacturing and customization of car bench, lift and spray booth. The other team is for one-stop equipments supplying.
Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories.
Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers.
Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
