Quick Details
-
Power Source:
-
Hydraulic
-
Model NO.:
-
BW850-2
-
Input Power:
-
40kw
-
Flow Rate:
-
850(L/Min)
-
Power:
-
Engine,Hydraulic,Elcetric Motor
-
Type:
-
Double cylinder
-
Pressure:
-
3Mpa
-
Application:
-
Flushing Fluids
Quick Details
-
Brand Name:
-
GLORYTEK
-
Model Number:
-
BW850/2
-
weight:
-
1500kg
-
Power Source:
-
Hydraulic
-
Model NO.:
-
BW850-2
-
Input Power:
-
40kw
-
Flow Rate:
-
850(L/Min)
-
Power:
-
Engine,Hydraulic,Elcetric Motor
-
Type:
-
Double cylinder
-
Pressure:
-
3Mpa
-
Application:
-
Flushing Fluids

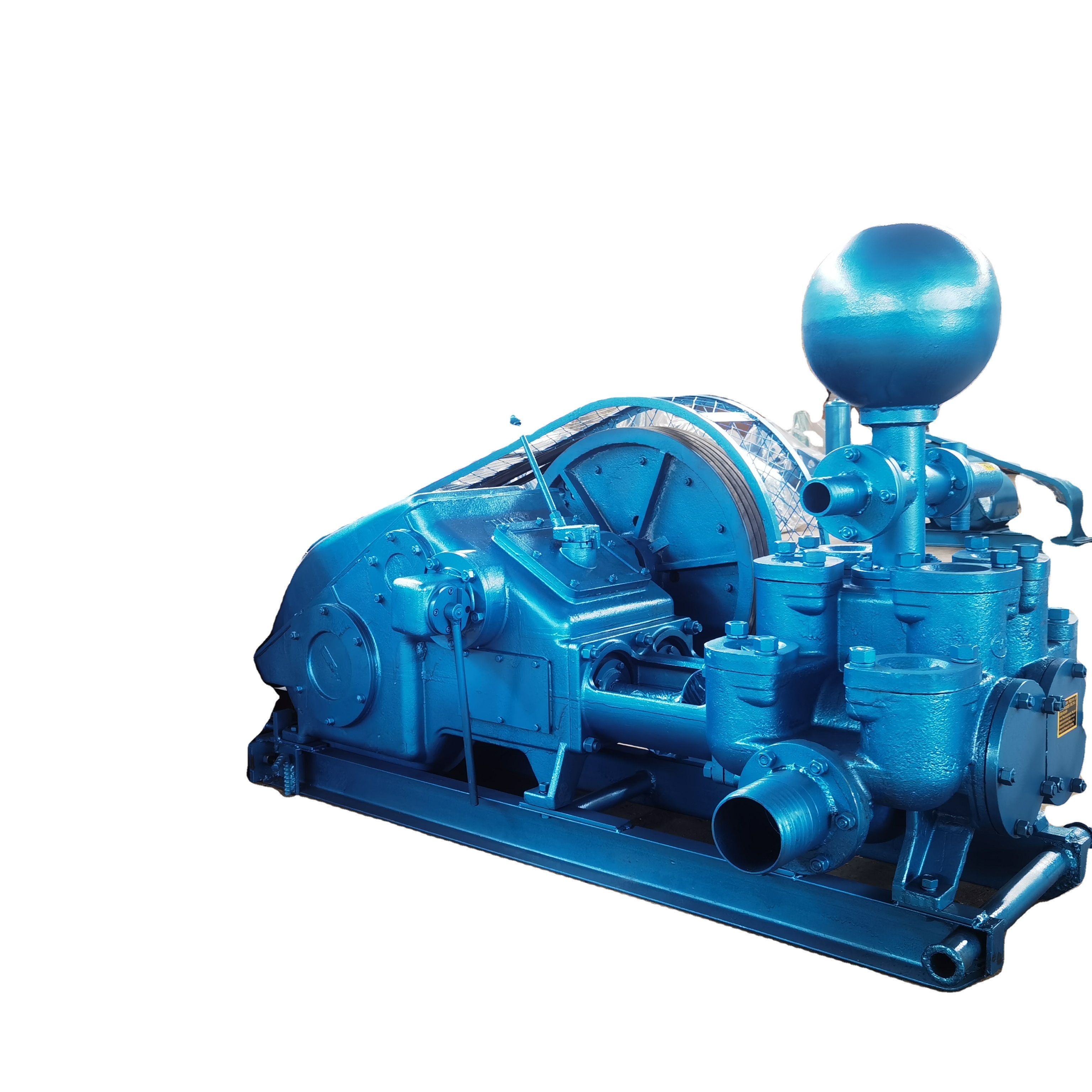

Mud Pump Double Cylinder Piston Pump
Product Details
This pump consists of pump head, crankcase, frame, belt pulley, clutch, pressure gauge, safety valve, three-way valve, water filter,etc.
Technical Parameter
|
Type:BW850/2
|
Horizontal double cylinder reciprocating double action piston pump
|
|
|
|
Cylinder Liner Dia （mm）
|
150
|
|
|
|
Piston Stroke （mm）
|
180
|
|
|
|
Theoretical Flow Rate （L/min）
|
600
|
850
|
|
|
Rated Pressure (MPa)
|
3
|
2
|
|
|
Strokes Per Minute
|
58
|
82
|
|
|
ID of Suction Pipe (mm）
|
127
|
|
|
|
ID of Discharge Pipe （mm）
|
64
|
|
|
|
Input Rotating Speed (r/min)
|
470
|
|
|
|
Input Power （kW）
|
40
|
|
|
|
Overall Dimension（L×W×H） (mm)
|
2000×1030×1400
|
|
|
|
Weight (kg)
|
1500
|
|
|
Product Description
Double cylinder piston pump
Maximum flow: 850L/min
Maximum pressure: 3MPa
The Diesel Engine Mud Pump is a high-pressure pump designed for industrial water supply in drilling rigs and construction machines. With its double cylinder design, it ensures efficient and reliable mud circulation during drilling operations.
Packing and Transport
Packing: Seaworthy Packing
Delivery: about 15-20 days after your down payment.
