- Product Details
- {{item.text}}
Quick Details
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LTMG
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3800 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
4.4km/h
-
Marketing Type:
-
Hot products 2023
-
Type:
-
Mini Crawler Excavator
-
Keywords:
-
Crawler Excavator
-

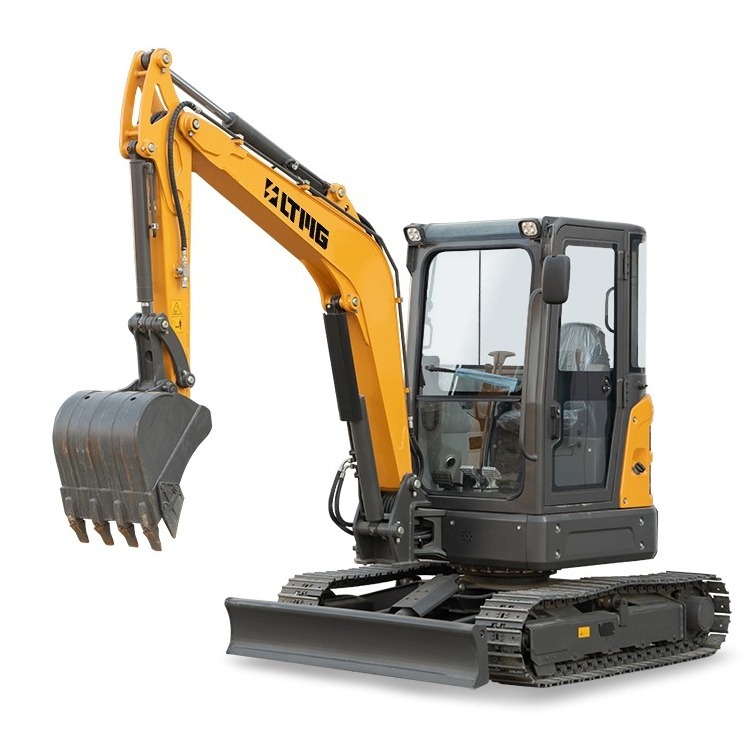

Product name:
-
Mini Excavator 3.5 Ton
-
Track Length:
-
1670mm
-
Engine:
-
LAIDONG/KUBOTA
-
Bucket width:
-
400mm
-
Platform ground clearance:
-
150mm
-
Overall dimension:
-
4915x1720x2525mm
-
Optional:
-
Grappler, Fork, Auger, Hammer etc
-
Mini Swing Radius:
-
2538mm
Quick Details
-
Operating Weight:
-
3ton, 4ton, 3.5 ton
-
Bucket capacity:
-
0.12CBM
-
Engine Brand:
-
LAIDONG/KUBOTA
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LTMG
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3800 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
4.4km/h
-
Marketing Type:
-
Hot products 2023
-
Type:
-
Mini Crawler Excavator
-
Keywords:
-
Crawler Excavator
-
Product name:
-
Mini Excavator 3.5 Ton
-
Track Length:
-
1670mm
-
Engine:
-
LAIDONG/KUBOTA
-
Bucket width:
-
400mm
-
Platform ground clearance:
-
150mm
-
Overall dimension:
-
4915x1720x2525mm
-
Optional:
-
Grappler, Fork, Auger, Hammer etc
-
Mini Swing Radius:
-
2538mm
Advantages
|
Model
|
LTE12H
|
LTE20H
|
LTE25H-Zero Tail
|
LTE30H
|
LTE35-40
|
|
Operating Weight(Kg)
|
1100
|
1950
|
2350
|
2750
|
3800
|
|
Engine Model
|
KOOP KD192F-1
|
Laidong 3TE25
|
Kubota
|
Laidong 3TE30
|
Kubota
|
|
Rated Power(Kw)
|
7
|
18.1
|
14.2
|
22.1
|
18.5
|
|
Bucket Capacity(m³)
|
0.023
|
0.06
|
0.07
|
0.1
|
0.12
|
|
Bucket Width(mm)
|
380
|
435
|
435
|
450
|
530
|
|
Max Digging Force(Kn)
|
7.2
|
11.5
|
18
|
11.5
|
30.4
|
|
System Working Pressure(Mpa)
|
16
|
18
|
21.5
|
16
|
22.5
|
|
Swing Speed(rpm)
|
0-13
|
10-12
|
0-9
|
12-14
|
0-11
|
|
Traveling Speed(km/h)
|
2
|
2.8
|
2.8
|
2.8
|
4.4
|
|
Gradeability(°)
|
30
|
35
|
35
|
35
|
58
|
|
Ground Pressure(Kpa)
|
22
|
38
|
30
|
38
|
32
|
|
Max. Digging Distance(mm)
|
3065
|
3860
|
4040
|
4370
|
5480
|
|
Max. Digging Depth(mm)
|
1715
|
2050
|
2400
|
2450
|
3208
|
|
Max. Digging Height(mm)
|
2600
|
3370
|
3700
|
3700
|
4800
|
|
Max. Dumping Height(mm)
|
1830
|
2390
|
2440
|
2290
|
3406
|
|
Min. Turning Radius(mm)
|
1480
|
1720
|
1610
|
2020
|
2538
|
|
Overall Length(mm)
|
2840
|
3800
|
3555
|
4080
|
4915
|
|
Overall Width(mm)
|
880
|
1050
|
990/1300
|
1300
|
1720
|
|
Overall Height(mm)
|
2200
|
2280
|
2290
|
2280
|
2525
|
|
Min. Ground Clearance(mm)
|
132
|
210
|
150
|
235
|
395
|
|
Track Ground Length(mm)
|
900
|
1050
|
990
|
1270
|
1670
|
|
Track Width(mm)
|
180
|
230
|
230
|
250
|
300
|
OEM/ODM
Optional Attachment
