Quick Details
-
Sliding table size:
-
350mm*700mm
-
Sliding table stoke:
-
350mm
-
Mould thickness:
-
100mm-180mm
-
Mold size:
-
355mm*225mm
-
Ejector stroke:
-
55mm
-
Ejector force:
-
1ton
-
Machine dimension(L*W*H):
-
1.5m*1.8m*2.4m
-
Machine weight:
-
1.2ton
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Injection pressure:
-
110mpa-181mpa
-
Top platen size:
-
490mm*350mm
-
Sliding table size:
-
350mm*700mm
-
Sliding table stoke:
-
350mm
-
Mould thickness:
-
100mm-180mm
-
Mold size:
-
355mm*225mm
-
Ejector stroke:
-
55mm
-
Ejector force:
-
1ton
-
Machine dimension(L*W*H):
-
1.5m*1.8m*2.4m
-
Machine weight:
-
1.2ton
Specifications:
|
ITEM |
UNIT |

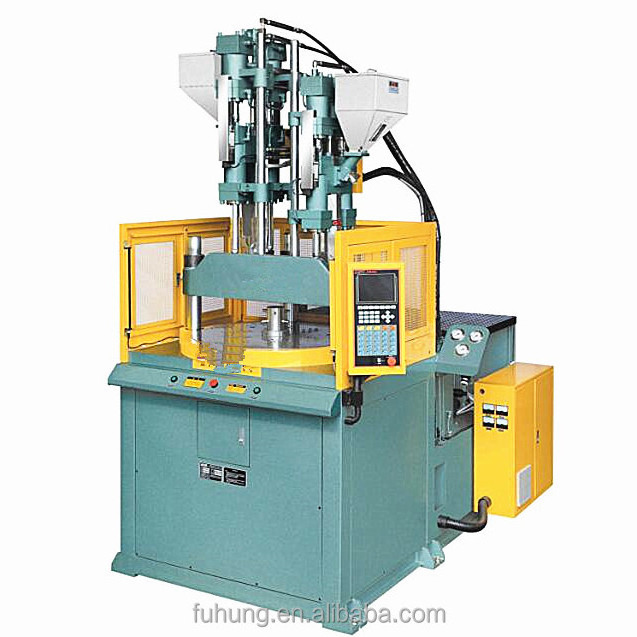

FHG-200DS |
||
|
Injection Unit |
Screw Diameter |
mm |
28 |
32 |
|
Injection Volume |
cm 3 |
68 |
88 |
|
|
Shot Weight |
g |
61 |
79 |
|
|
Injection Rate |
cm 3/sec |
50 |
65 |
|
|
Temperature Control |
Zone |
3 |
||
|
Clamping Unit |
Clamping Force |
KN |
250 |
|
|
Opening Stroke |
mm |
180 |
||
|
Mould Thickness(Min-Max) |
mm |
100-280 |
||
|
Space Between Tie-Bars |
mm |
355×225 |
||
|
Ejector Force |
KN |
13 |
||
|
Ejector Stroke |
mm |
40 |
||
|
General |
Motor Power |
KW |
9 |
|
|
Heater |
KW |
6.9 |
||
|
Pump Pressure |
Mpa |
14 |
||
|
Machine Dimension |
m |
1.4×0.9×2.4 |
||
|
Machine Weight |
T |
1.2 |
||
