Quick Details
-
Brand Name:
-
baling machine
-
Weight:
-
1000KG
-
Dimension(L*W*H):
-
900*650*2100mm
-
name:
-
Baling Machine
-
Capacity:
-
4-6bale/h
-
Bale size:
-
1100*700 mm
-
color:
-
blue
-
delivery:
-
within 7 days to qingdao port
-
packing:
-
wooden case
-
voltage:
-
220/380v
-
Cylinder:
-
single or double
-
Pump type:
-
gear pump or plunger pump
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO
Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
2.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
baling machine
-
Weight:
-
1000KG
-
Dimension(L*W*H):
-
900*650*2100mm
-
name:
-
Baling Machine
-
Capacity:
-
4-6bale/h
-
Bale size:
-
1100*700 mm
-
color:
-
blue
-
delivery:
-
within 7 days to qingdao port
-
packing:
-
wooden case
-
voltage:
-
220/380v
-
Cylinder:
-
single or double
-
Pump type:
-
gear pump or plunger pump
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO

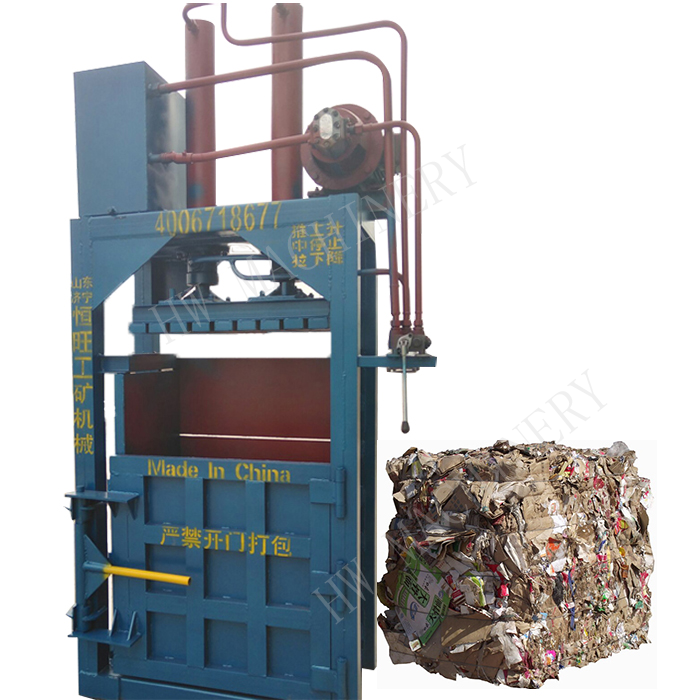

Baler machine/press machine/Compactor Machine/baling machine.
(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
(2)Usually the pressure force of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers
|
Model
|
Press Force
|
Bale size(mm)
|
Bale weight(kg)
|
Efficiency(bale/hour)
|
Power (KW)
|
Machine
weight (kg) |
Size (mm)
|
|
HW10-6040
|
10 Ton
|
600*400
|
30-50
|
4-6
|
2.2
|
1000
|
900*650*2100
|
|
HW20-8060
|
20
|
800*600
|
80-100
|
4-6
|
4
|
1100
|
1000*750*2750
|
|
HW30-8060
|
30
|
800*600
|
100-130
|
4-6
|
5.5
|
1300
|
1000*750*2750
|
|
HW30-11070
|
30
|
1100*700
|
130-150
|
4-6
|
5.5
|
1700
|
1350*850*3200
|
|
HW40-11070
|
40
|
1100*700
|
180-200
|
4-6
|
7.5
|
1800
|
1350*850*3200
|
|
HW50-12080
|
50
|
1200*800
|
320-350
|
4-6
|
11
|
1900
|
1600*1050*3300
|
|
HW60-12080
|
60
|
1200*800
|
380-420
|
4-6
|
15
|
2100
|
1600*1050*3300
|
|
HW80-12080
|
80
|
1200*800
|
450-480
|
4-6
|
15
|
2300
|
1600*1050*3300
|
|
HW100-12080
|
100
|
1200*800
|
500-550
|
4-6
|
15
|
2700
|
1600*1050*3300
|
|
HW120-150100
|
120
|
1500*1000
|
650-700
|
4-6
|
18
|
3300
|
2100*1550*3300
|
|
HW150-150100
|
150
|
1500*1000
|
850-900
|
4-6
|
18.5
|
4100
|
2100*1550*3300
|
Baler machine /press machine structure as follows:
.
