Quick Details
-
Model Number:
-
hook-10
-
Weight (KG):
-
3000 kg
-
Key Words:
-
bins
-
Name:
-

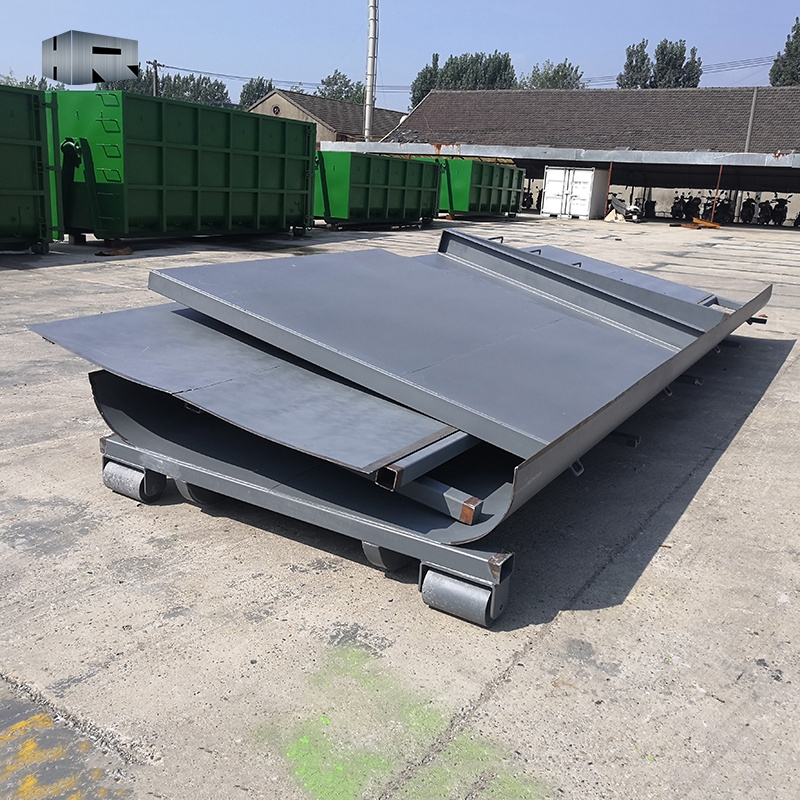

Flat pack heavy duty roll off dumpster hook lift container bin
-
title:
-
hook lift bin
-
color:
-
orange
-
Size:
-
10 cbm
-
plate thickness:
-
3mm 4mmm 5mm
Quick Details
-
Production Capacity:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
hook-10
-
Weight (KG):
-
3000 kg
-
Key Words:
-
bins
-
Name:
-
Flat pack heavy duty roll off dumpster hook lift container bin
-
title:
-
hook lift bin
-
color:
-
orange
-
Size:
-
10 cbm
-
plate thickness:
-
3mm 4mmm 5mm
Product Details
|
Product name
|
Hook bin & Hook lift bin & Roll on / off bin
|
|
|
|
|
Material
|
350 (AUS), A210(USA). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Thickness of plates used
|
10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor.
Thicker plates are available to your
requirements.
|
|
|
|
|
|
|
|
|
|
|
|
2). Fully and partly welded inside and outside
3).Hook bar: Dia 50mm
4). Bottom chassis : PFC or 'I' beam, usually 200*75 PFC
5). Curved sides are available
6). Hinge and rollerswith grease points
|
|
|
|
|
|
2) Up openning door
3) HDG (Hot dipped galvanizing
4) Crane eyes on top
5) Double spening door
6) Ladder in front or in the back
|
|
|
|
|
Painting
|
Two times of primer + two times of top coat
Primer : zinc-based epoxy (Grey)
Top coat : Urethane (Any color)
|
|
|
|
|
|
Two times of primer + two times of top coat
|
|
|
|
|
|
Primer : zinc-based epoxy (Grey)
|
|
|
|
|
|
Top coat : Urethane (Any color)
|
|
|
|
Product Details
Hook
------
Our hook can be customized,strong and durable.We take the highest weight-to -lift ratio in the industry. we use high tensile steel for reducing bins weight , which means more payload,longevity of truck lifeime.
Doors Hinges
------
Our doors hinges are greasable,and
capable of holding a big weight as well as mounting and adjustment are very easy.
Wheels
------
Our wheels are heavy duty ,have great flexibility in using ,can be a good optional to our customers .
Door lock
------
Ratchet door locking mechanism with high tensile safety chain and catch,this operates a heavy-duty secure locking mechanism .We also can customize the door locking mechanism to suit various transportation methods and requirements.
Product Application
Hooklift bin come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with
non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Product Recommendation
Packaging & Delivery
Packing Details
:
No packing
, loaded in shipping container.（Usually we stack your bins with foam to protect your painting , also we can provide some paint with the bins for fixing when you got the bins）
Delivery Details:
Shipped in
30 days
after payment
. (Usually
we need 30% as deposit
, and balanced will be paid after sending you the scanned copy of documents like B/L, Invoice packing list and so on)
