Quick Details
-
Brand Name:
-
vacorda
-
Model Number:
-
HKD
-
Name:
-

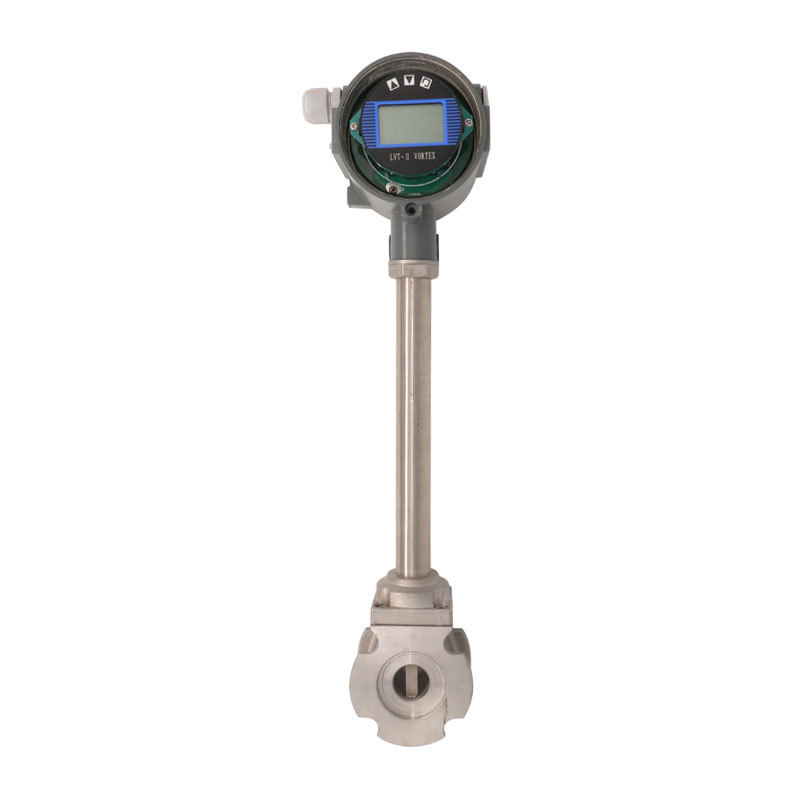

Stainless Steel V ortex Flowmeter
-
Primary measured value:
-
Flow Rate
-
Secondary measured value:
-
Volume flow
-
Connection:
-
flange/thread/clamp
-
Output signal::
-
4-20mA/RS485/HART
-
Operating pressure:
-
PN16-PN63
-
Operating temperature::
-
-20 ~ +120 °C
-
Accuracy:
-
For Liquid: 1.0% of rate;For Gas and Steam: 1.5% of rate
-
Viscosity:
-
5~400mpa.s
-
Cusomization:
-
Yes
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters, Turbine flowmeter
-
Warranty:
-
12 months
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
vacorda
-
Model Number:
-
HKD
-
Name:
-
Stainless Steel V ortex Flowmeter
-
Primary measured value:
-
Flow Rate
-
Secondary measured value:
-
Volume flow
-
Connection:
-
flange/thread/clamp
-
Output signal::
-
4-20mA/RS485/HART
-
Operating pressure:
-
PN16-PN63
-
Operating temperature::
-
-20 ~ +120 °C
-
Accuracy:
-
For Liquid: 1.0% of rate;For Gas and Steam: 1.5% of rate
-
Viscosity:
-
5~400mpa.s
-
Cusomization:
-
Yes
Vortex flow meter transmitter is designed for measuring the volume/mass flow of liquids, gases and steam based on Karman vortex principle. Adopting advanced differential algorithm along with measurement of isolation, shielding and wave filtering, vortex flow meters have the advantages of immunity on vibration and noise. Meanwhile, the liabilities of LUGB series vortex flow meters are well guaranteed by unique sensor packaging technology. Upon receipt, examine your meter for visible damage. The Vortex is a precision measuring instrument and should be handled carefully. Remove the protective plugs and caps for a thorough inspection. If any items are damaged or missing, contact us. Make sure the Vortex flow model meets your specific needs.
Product features
1. No moving parts, long-term stability, simple structure and easy to install and maintain
2. Performance of
vortex flow meter
is very stable, structured forms
3. High accuracy, wide measurement range range, pressure loss
4. Flexible installation, flange, thread and clapm on connection types for options
Product Parameters
|
Connection Size: |
Tube Type: DN15-DN300 |
|
Insertion Type: DN200-DN1500 |
|
|
Fluid: |
Liquid, Gas, Steam |
|
Accuracy: |
Tube type: 1.0 for Liquid, 1.5 for Gas |
|
Insertion Type: 2.5 for Liquid, 3.0 for Gas |
|
|
Sensor Material: |
SS304, SS316L |
|
Probe Material: |
SS316L |
|
Body Material: |
Cast Aluminum, SS304, SS316L |
|
Fluid Temperature: |
-40~320 ℃ |
|
Nominal Pressure: |
PN16-PN40, ANSI Class 150, Class300 |
|
Signal Output: |
Pulse+4-20mADC, RS485, HART |
|
Enclosure Class: |
Ex |
|
Power Supply: |
Standard Type: 12-30VDC (Two Wire 4-20mA) |
|
Battery Type: 3.6VDC(for Three Years) |
