PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter
PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter

PTFE lining dn150 lpg flow meter gas vortex mass flow meter Battery Operated Flow Transmitter

FOB Reference Price: Get Latest Price
≥1 Sets
US $288
≥20 Sets
US $280
≥50 Sets
US $260
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
KD
Model Number:
KDYB-2
Product name:

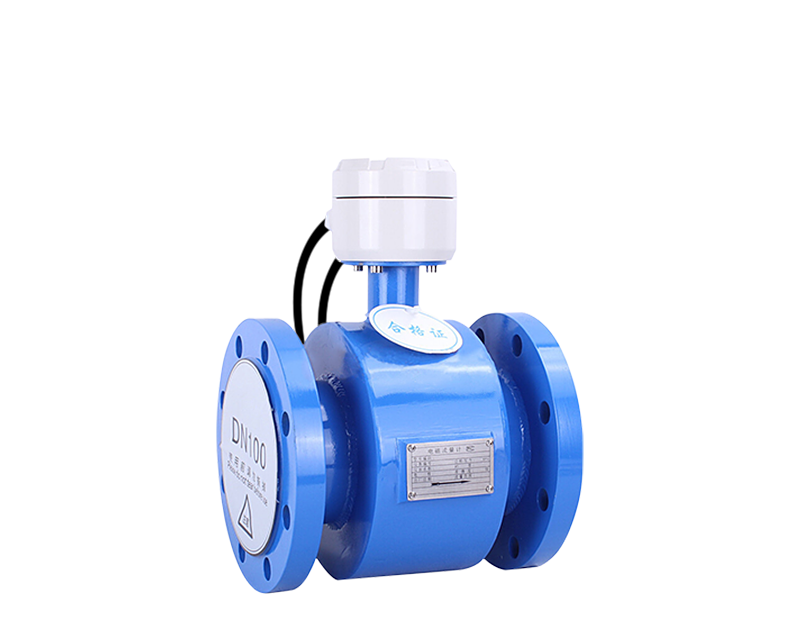

Split Type Water Electromagnetic Flow Meter
Diameter nominal:
DN3-DN3000
Ingress protection:
P65/IP68
Power supply:
110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Conductivity::
>5 micro Siemens/cm
Communication:
RS485/Modbus/HART
Medium temperature:
20-120C
Flow range:
0~10m/s
Pressure:
1.6Mpa
Electrode Material:
316L

Quick Details

Type:
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Warranty:
12 month
Place of Origin:
Henan, China
Brand Name:
KD
Model Number:
KDYB-2
Product name:
Split Type Water Electromagnetic Flow Meter
Diameter nominal:
DN3-DN3000
Ingress protection:
P65/IP68
Power supply:
110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Conductivity::
>5 micro Siemens/cm
Communication:
RS485/Modbus/HART
Medium temperature:
20-120C
Flow range:
0~10m/s
Pressure:
1.6Mpa
Electrode Material:
316L
Specification
Nominal diameter
3-3000mm
velocity range
0-10m/s
Degree of accuracy
±0.5%R, ±1%R ( < DN20)
Medium conductivity
≥5µS/cm, Actual conductivity≥30µS/cm
Environment temperature
Sensor
0℃- +80℃ or -25℃- +120℃ or +70℃- +250℃
Incorporate type
-10℃- +55℃
Highest medium
temperature
Incorporate type
+80℃
Separate type
CR chloroprene rubber liner (CR)
+80℃
Polytetrafluoroethylene lining (F4)
+120℃
Polite lining (F46)
+120℃
Teflon (PFA)
+180℃
Fluorosilicone rubber (FVMQ)
+250℃
Output signal
4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
Cable entry size
M20*1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector)
Supply voltage
110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Power dissipation
≤15VA
Digital communication
RS-485, support standard Mudbus protocol; GPRS
Signal / Ground
electrode material
Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum
Form of electric pole
Interpolating, extrapolating electrode need to customize
Number of electrodes
Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration
Flange standard
Conform to the international GB9119(customize according to customer’s demand)
Flange material
Standard carbon steel and stainless steel are needed to be customized
Grounding ring material
Stainless steel, and stainless steel that contains molybdenum, etc.
DN12-DN450
Stainless steel 1 Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321)
Housing material
Standard carbon steel and stainless steel are needed to be customized

Level of protection
Separate body-type
IP68, IP65
Incorporate type
IP65
Interval/wire length (separate body-style)
10m standard configuration
