Quick Details
-
Brand Name:
-
Addition Instrument
-
Model Number:
-
JF3142
-
Heating range of oil cup:
-
room temperature~250℃
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
1.5KW
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Addition Instrument
-
Model Number:
-
JF3142
-
Heating range of oil cup:
-
room temperature~250℃

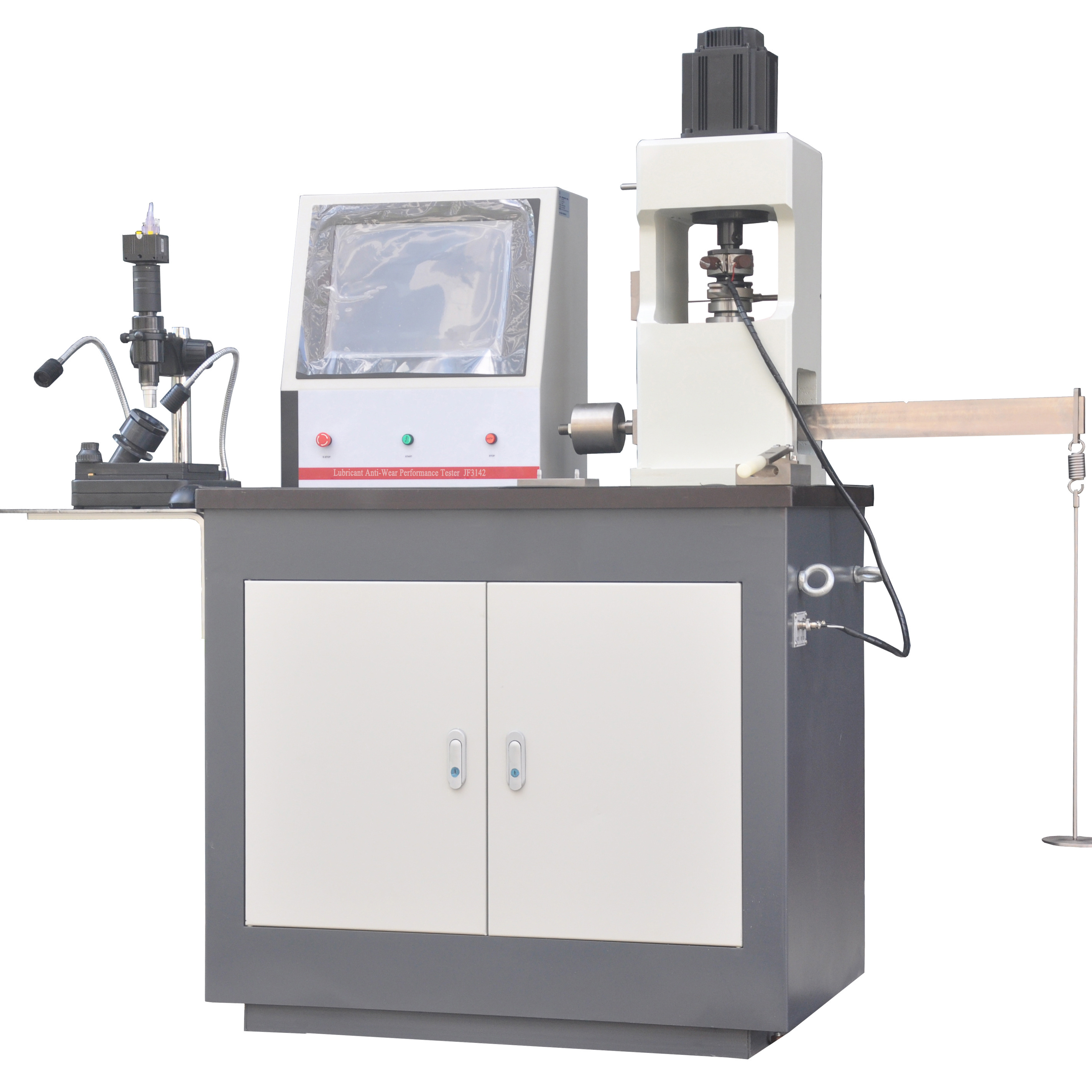

Lubricant Anti-Wear Performance Tester
(Four-Ball Wear Test Machine)
Product model: JF3142
Products Description
This machine adopts four ф 12.7mm standard steel balls, in the form of sliding friction, under the condition of point contact pressure, evaluate the bearing capacity and anti-wear performance of lubricant (including oil film strength PB, sintering load PD, comprehensive wear value ZMZ, long-term wear D and other indicators). It can also determine the influence of temperature on lubricant lubrication performance.
Product Paramenters
1, Applicable standards: ASTM D2783 GB/T3142, GB/T12583, SH/T0189, SH/T0202, SH/T0204
2. Maximum test force: 10000N
3, The maximum test force below 4%, the value error: ±5N
4, The maximum test force of more than 4%, relative error: ± 1%
5, The maximum friction: 200N
6, Temperature range: room temperature ~ 250℃
7, Temperature control accuracy: ±3℃
8, Speed range: 300~1800r/min
9, Speed accuracy: less than 15r/min
10, Test oil volume: 10ml
11. Diameter of steel ball: φ12.7
12, Motor power: 2.2KW
13, Testing machine time display and control range: 1S~ 999min
14, Spot measurement software: automatically capture spot, save and measure the average value
15. Magnification of measuring microscope: 25× 200
16, Grinding spot measurement range: 0 ~ 10mm
17, Spot measurement accuracy: 0.001mm
18, The test force loading mode: front-load weight loading
19. Force holding mechanism: self-balancing and no gap guiding
20, The relative error of friction value should not be greater than: ±2%
21. Spot measuring microscope: electronic measuring system
22, Size: 1300×490×1220 (mm)
Features
1. Adopt double floating bearing technology, no clearance guiding technology and buffer cross balance technology to ensure the accuracy of real-time tracking measurement of test force and friction;
2, The brand servo motor drive spindle, the relevant transmission parts also use high quality bearings;
3, The use of independent embedded industrial controller, industrial metal touch screen, acquisition of independent analysis module, effectively ensure the impact of high-speed equipment or oil film rupture violent vibration on the control part of the performance;
4, It is convenient to capture the spot, measure and analyze the topography of the friction surface, and directly save the spot image;
5. The testing software can establish test schemes according to different standards, and judge Pb values according to the size of grinding spots. It has the function of saving and exporting data tables.
Big screen touch operation, real-time dynamic acquisition, data processing
7, Spindle expandable friction pair to meet a variety of relevant standards
8, Lengthened guide shaft, double bearing support, accurate test force, stable and reliable
9, The special weight stop groove, prevent the weight accidentally fall off caused by damage
10. 3 million digital CCD probe pixels
11. Size:1300×490×1220（mm）
FAQ
Q: What services are supported?
A: Free lifetime online technical services are supported.
Q: How long is the warranty period of the equipment sold?
A: The warranty is for twelve months,(except man-made damage)
Q: How long is the delivery time?
Answer: Within 3 working days after receiving the downpayment for the products in stock, and the specific delivery time depends on the order quantity and products.
Q: What is the minimum order quantity?
A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.
Q: What is the package of your products?
A: Packed with PE film, wooden case and so on.
Q: What kind of plug are your instruments?
A: Considerate Different countries plugs, 110V - 220V are available. Please contact us for other types.
Q: What’s your transportation?
A: Express, air,ocean transportation are supported, and appointed forwarders are also supported.
Q: Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Q: How to install and use the product?
A: Operating instructions or video will be send to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
Q: What’s the trade term and delivery term?
A: Most of the common trade terms are supported, like CIF,FOB,CFR and so on .
We have ordinary instruments in stock, the delivery time is 1-7 working days.
If there are not in stock, the delivery time is 15-30 working days after the down payment.
If you are in urgent, we can consider making a special arrangement for you.
Certifications
Specification
|
Origin
|
China
|
|
Support customization
|
OEM
|
|
Color
|
white
|
|
Shape
|
square
|
|
MOQ
|
1 SET
|
|
Material
|
Metal
|
|
Language
|
English
|
