Quick Details
-
Brand Name:
-
SOWONDER
-
Model Number:
-
LY-CG65L300-4W
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
440
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-10 - 60
-
Product Name:
-
Cabinet Light Bulbs
-
Beam Angle:
-
120°
-
Features:
-
Seamless & No Dark in-line connection
-
Power Factor:
-
PF>0.95
-
Applications:
-
Any Indoor applications
-
Length:
-
30cm/60cm/90cm/120cm
-
Life Span:
-
50,000
-
PC cover:
-
Frosted pc cover or Clear pc cover
Quick Details
-
Color Temperature(CCT):
-
3500K (Warm White)
-
Input Voltage(V):
-
AC120/AC180-240C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOWONDER
-
Model Number:
-
LY-CG65L300-4W
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
440
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-10 - 60
-
Product Name:
-
Cabinet Light Bulbs
-
Beam Angle:
-
120°
-
Features:
-
Seamless & No Dark in-line connection
-
Power Factor:
-
PF>0.95
-
Applications:
-
Any Indoor applications
-
Length:
-
30cm/60cm/90cm/120cm
-
Life Span:
-
50,000
-
PC cover:
-
Frosted pc cover or Clear pc cover
Welcome to Lonyung Led Lighting

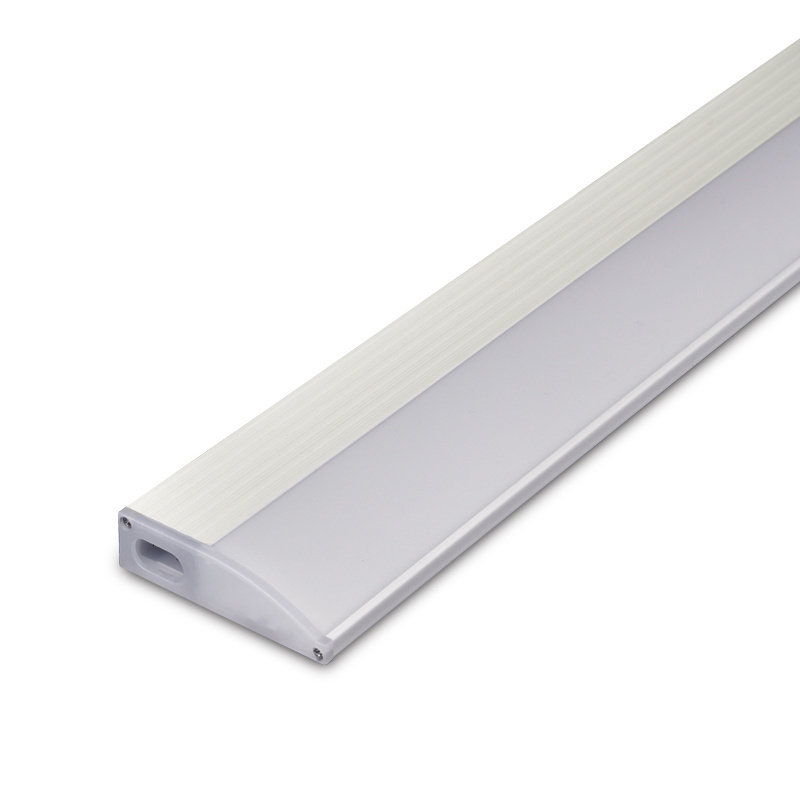

Easy Installation Linear Led Under Cabinet Lamp 4W/7W12W//15W Cabinet Light Bulbs with 3500K 4500K 6500K
- FEATURE
- One-piece Aluminum chassis
- Seamless & No Dark in-line connection
- ETLCE SAA approved ,
- Efficiency: 110-130LM/W
-
Universal mounting standard. Come with integral hanging loops and with standard surface mounting application
-
Directly install with 120V/180-240V Power. Can be choice with Europe or American Cable Plugs.
-
Directly installing.
- Life Span: 50,000 hours
| Technical Specifications | |||
| Input Voltage | AC120V /AC180-240V 50/60Hz | Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 | Efficiency | 110-130LM/W |
| Color Index | Ra>82 | Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% | Operation Temperature | -10°C ~ +60°C |
| UGR | <19 | Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K | Material | AL+PC |
| Specification | |||||
| Model | Size | Power | Led type | Lumens (lm)±10% | Package |
| LY-CG65L300-4W | 1ft | 4W | SMD2835 | 440 - 520 | 340x315x295(mm) 20pcs/ctn |
| LY-CG65L600-7W | 2ft | 7W | SMD2835 | 77 0 - 940 | 630x315x295(mm) 20pcs/ctn |
| LY-CG65L900-12W | 3ft | 12W | SMD2835 | 1320 - 1560 | 940x315x295(mm) 20pcs/ctn |
| LY-CG65L1200-15W | 4ft | 15W | SMD2835 | 1650 - 1950 | 1240x315x295(mm) 20pcs/ctn |
| LY-CG65L1200-20W | 4ft | 20W | SMD2835 | 2200 - 2600 | 1240x315x295(mm) 20pcs/ctn |
- Options
- Fuctions: Normal / Triac Dimmable
- Connection Way: Lead in wire / M-F Connection / Power cord with Plug
- Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
- APPLICATION
-
Houses, offices, exhibitions, meeting room
- H
otels, restaurants, schools, factories, hospitals
- W
orkshops, storages, roads, streets, etc
