Concentric Rotor Eddy Current Separator (ECS) Non Ferrous Metal Separator Plastic Fractions Aluminum Separator

Concentric Rotor Eddy Current Separator (ECS) Non Ferrous Metal Separator Plastic Fractions Aluminum Separator

FOB Reference Price: Get Latest Price

≥1 Sets

US $18000

≥10 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ECS

Marketing Type:: HOT product

Weight (KG):: 1500 kg

Belt:: Wear-resistant PVC

Key words:: Eddy Current Separator (ECS) Non Ferrous Metal Separator

Width of Belt:: 600-1200mm

Color:: Blue/ custmoized

Capacity:: 1-3 cubic metres per hour

Voltage:: 380v50Hz/ custmized

Function:: Separating and Recycling

Overseas Installation:: Available

Certification:: CE

Quick Details

Production Capacity:: 1-3 CBM/H

Place of Origin:: Hebei, China

Brand Name:: BAONAN

Model Number:: ECS

Marketing Type:: HOT product

Weight (KG):: 1500 kg

Belt:: Wear-resistant PVC

Key words:: Eddy Current Separator (ECS) Non Ferrous Metal Separator

Width of Belt:: 600-1200mm

Color:: Blue/ custmoized

Capacity:: 1-3 cubic metres per hour

Voltage:: 380v50Hz/ custmized

Function:: Separating and Recycling

Overseas Installation:: Available

Certification:: CE

Product Overview

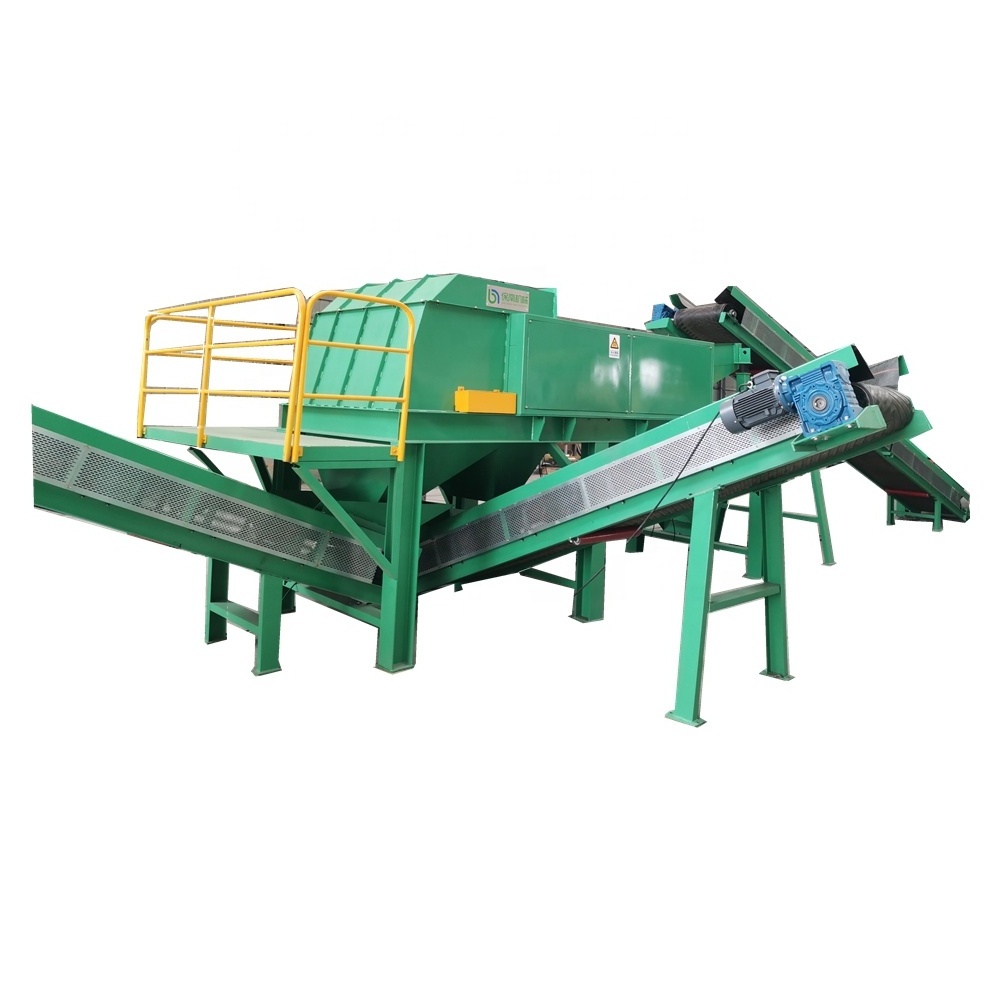

Concentric Rotor Eddy Current Separator (ECS) Non Ferrous Metal Separator Plastic Fractions Aluminum Separator

Eddy Current Separator is mainly used to recycle the non-ferrous metals from industrial and life waste, the typical processing objects are: copper (aluminum) power cable, aluminum products, auto waste, nonferrous metal chips, printed circuit board ash,glass of non-ferrous metals, electronic waste, Poly-metallic mixture , cast copper (aluminum) sand mixture and aluminum dross, etc

FEATURES AT A GLANCE

COMPACT DIMENSIONS

HIGH WORKING EFFICIENCY

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

CAPACITY CUSTOMIZED

GOOD SEPARATION RATE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Model No,	Weight (kg)	Power (kw)	Dimension LWH	Belt speed
ECS 400	1000	7.74	250012001100	0-3000RPM
ECS 600	1200	10.74	330015001180	0-3000RPM
ECS 800	1400	11.44	400019002000	0-3000RPM
ECS1000	1800	13.7	600020002200	0-3000RPM
ECS1200	2200	13.7	700020002200	0-3000RPM
ECS1400	3500	16.94	850023402400	0-3000RPM

WORKING PRINCIPLE

Eddy current separation is based on the use of a magnetic rotor with alternating polarity,
spinning rapidly inside a non-metallic drum driven by a conveyor belt. As non-ferrous metals pass over the drum, the alternating
magnetic field creates eddy currents in the non-ferrous metal particles repelling the material away from the conveyor. While other
materials drop off at the end of the conveyor, the non-ferrous metals are propelled forward over a splitter for separation
