Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
Product name:
-
Cnc Router
-
Working area:
-
1300mm*2500mm*300mm(Customized)
-
Spindle:
-
HQD 6.0kw saw blade head (can rotate ±90°)
-
Control system:
-
Taiwan LNC/Syntec Control System
-
Motor and driver:
-
Leadshine/Yaskawa
-
Table Surface:
-
Vacuum Combined T-slot Table
-
Vacuum pump:
-
Water pump/Air pump/Oil-less pump
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
Fuling Inverter
-
Transmission:
-
X,Y axis: rack and pinion, Z axis: Taiwan TBI ball screw
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
Product name:
-
Cnc Router
-
Working area:
-
1300mm*2500mm*300mm(Customized)
-
Spindle:
-
HQD 6.0kw saw blade head (can rotate ±90°)
-
Control system:
-
Taiwan LNC/Syntec Control System
-
Motor and driver:
-
Leadshine/Yaskawa
-
Table Surface:
-
Vacuum Combined T-slot Table
-
Vacuum pump:
-
Water pump/Air pump/Oil-less pump
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
Fuling Inverter
-
Transmission:
-
X,Y axis: rack and pinion, Z axis: Taiwan TBI ball screw
Products Description

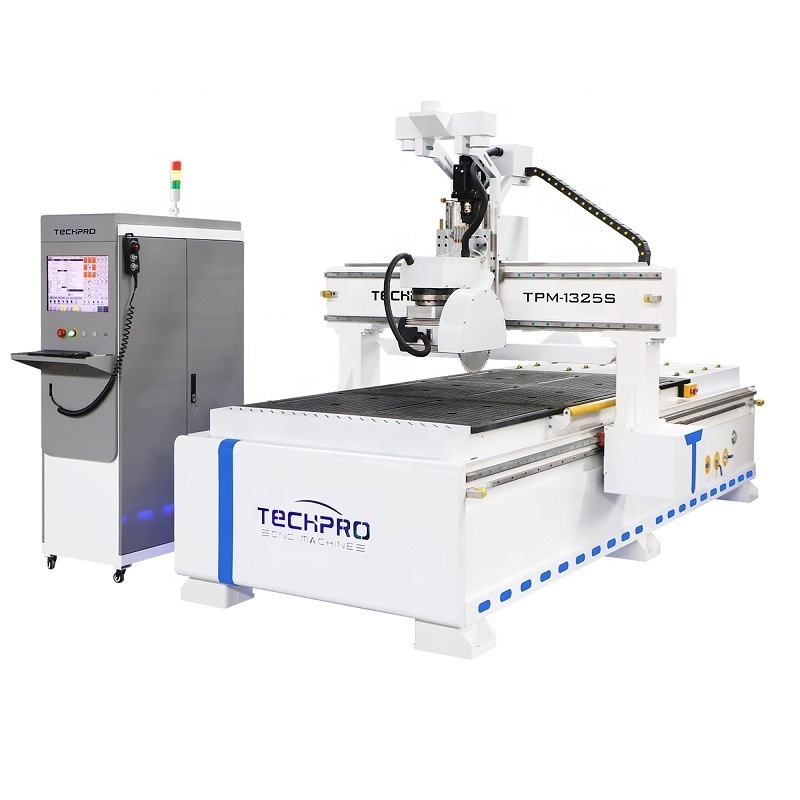

TechPro Saw Blade CNC Router Featrues :
1. Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger and stability.
2.
Equipped with a large protective cover and safety grating equipment to protect the safety of operators.
3. Taiwan LNC / Syntec control system with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
4. Chinese HQD air cooling spindle, ensure the cutting effect, long using life with less maintain.
5. Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.
6. Independent control cabinet, Stronger power and weak power separate, maintenance easily.
7.
Mainly for processing some boards and cabinets, which is more efficient.
Application of TechPro Saw Blade CNC Router :
1. Furniture wooden craft decoration:
Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving.
2. Advertising industry:
Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic cutting
3. Metal Industry: Aluminum, copper soft metal material cutting and drilling.
4. Artwork and Decoration: wood crafts; gift box; jewelry box.etc
Machine Configuration
|
Model
|
TPM1325S
|
|
Working area
|
1300*2500*300mm (Optional 1500*3000/2050*3050*300mm)
|
|
Control system
|
Taiwan LNC / Syntec control system
|
|
Spindle
|
HQD 6.0kw saw blade head (can rotate -90 to 0 degrees + 0 to 90 degrees)
|
|
Motor and Driver
|
Leadshine / Delta / Yaskawa AC servo motor and driver
|
|
Inverter
|
Fuling / Delta inverter
|
|
Table surface
|
T-slot and vacuum adsorption table
|
|
Structure
|
Heavy Duty 8-10mm Steel machine bed; 12-14mm Moving Steel Gantry
|
|
Lubrication system
|
Manual lubrication system
|
|
Transmission
|
X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw
X,Y axis: Taiwan Hiwin square guide rails with 30mm |
|
Electric Parts
|
Schneider brand
|
|
Tool Sensor
|
Automatic probe
|
|
Vacuum Pump
|
5.5kw vacuum pump
|
|
Software
|
Artcam / Ucancam / Aspire / Fushion360 etc
|
|
Working Voltage
|
380V or 220V /3phase/1 Phase
|
|
Optional
|
Vertical Cutting Spindle
|
|
|
Loading and Unloading Table
|
|
|
C Axis + Aggregates
|
|
|
Side Rotary Device
|
