- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Mihating
-
Voltage:
-
220V/380V/Customerized, 380V 220V Optional
-
Dimension(L*W*H):
-
1100x920x1050mm
-
Motor Power (kw):
-
4 kw
-
Weight (KG):
-
450 KG
-
Year:
-
2021
-
Product name:
-
Angle Notching Machine
-
Type:
-
Hydraulic Cutting Tools
-
Name:
-
Hydraulic Steel Angle Cutting
-
Application:
-
Industrial Metal Cutting
-
Function:
-
Angle Iron Cutting
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting Angle:
-
90 Degree
-
Color:
-
Customer Requirement
-
Usage:
-
Cutting Sheet Sheet
-
Certification:
-
CE
Quick Details
-
Cutting Thickness (mm):
-
4 mm
-
Cutting Width (mm):
-
250 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Mihating
-
Voltage:
-
220V/380V/Customerized, 380V 220V Optional
-
Dimension(L*W*H):
-
1100x920x1050mm
-
Motor Power (kw):
-
4 kw
-
Weight (KG):
-
450 KG
-
Year:
-
2021
-
Product name:
-
Angle Notching Machine
-
Type:
-
Hydraulic Cutting Tools
-
Name:
-
Hydraulic Steel Angle Cutting
-
Application:
-
Industrial Metal Cutting
-
Function:
-
Angle Iron Cutting
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting Angle:
-
90 Degree
-
Color:
-
Customer Requirement
-
Usage:
-
Cutting Sheet Sheet
-
Certification:
-
CE
Product Description

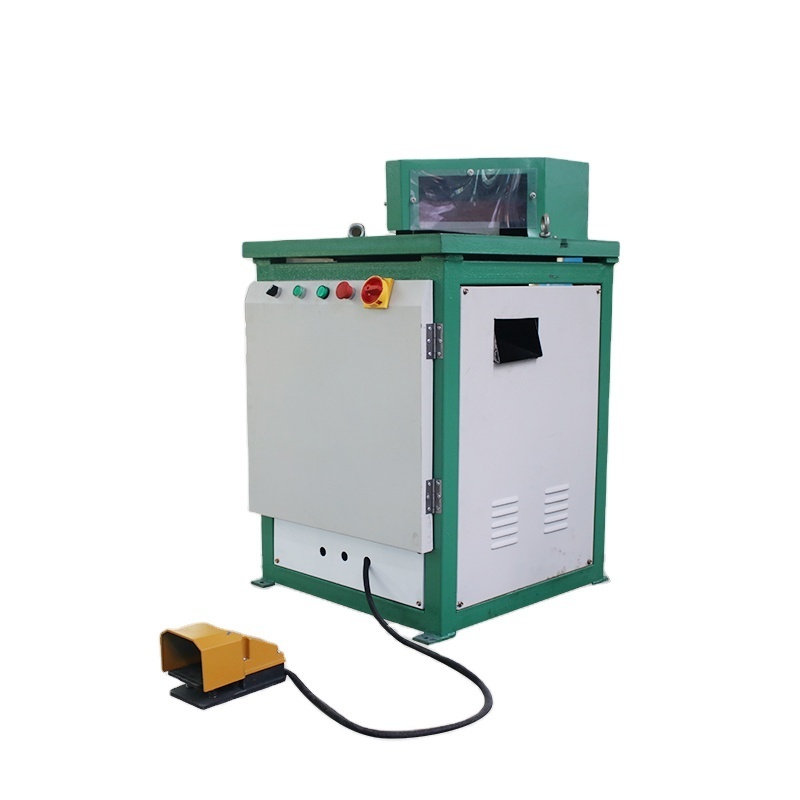

Hydraulic V Notching Machine and Plate cutting angle machine
Notching machine mainly divided into angle-fixed notching machine and angle-adjustable notching machine, performance
characteristics are as follows:
1) Compact structure, mechanical structure ensures the machine rigidity, with solid guide to ensure the best cutting accuracy and the cutter life.
2) Pedal switch control, easy operation; manual and cycle work modes are available for your choice.
3) Calibration indicates angle, through hand wheel adjust the angle, very convenient.
4) Stroke is adjustable, improve the cutting speed
5) Equipped with cutting length ruler, can adjust the position of positioning stopper, and set the cutting length
6) Polished workbench surface, smooth and level, not hurts workpieces
7) The cutter is suitable for cutting CS (Carbon Steel) and SS (Stainless Steel)
8) Equipped with material pressing foot to prevent plate from distorting and deforming
9) Plastic protective cover avoid contact with the cutting parts, ensure the safety of operators and equipment
characteristics are as follows:
1) Compact structure, mechanical structure ensures the machine rigidity, with solid guide to ensure the best cutting accuracy and the cutter life.
2) Pedal switch control, easy operation; manual and cycle work modes are available for your choice.
3) Calibration indicates angle, through hand wheel adjust the angle, very convenient.
4) Stroke is adjustable, improve the cutting speed
5) Equipped with cutting length ruler, can adjust the position of positioning stopper, and set the cutting length
6) Polished workbench surface, smooth and level, not hurts workpieces
7) The cutter is suitable for cutting CS (Carbon Steel) and SS (Stainless Steel)
8) Equipped with material pressing foot to prevent plate from distorting and deforming
9) Plastic protective cover avoid contact with the cutting parts, ensure the safety of operators and equipment
Specification
|
Model
|
Blade Length(mm)
|
Thickness(mm)
|
Edge Length(mm)
|
Working Desk Size(mm)
|
|
3*120
|
120
|
3
|
120
|
500"*500
|
|
4*160
|
160
|
4
|
160
|
600*600
|
|
4*200
|
200
|
4
|
200
|
700*700
|
|
6*250
|
250
|
6
|
250
|
750*750
|
