• Highest strength casting iron, strong, stable, and sturdy
• All the castings are treated with annealing, which will reduce the wear of the machine
• Pressure micro-adjustment device, easy for setting up
• Excellent workmanship, quality assurance
• Good appearance and design concept
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
shiwei
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2400x2000x1880mm
-
Weight:
-
4500 kg
-
PLC Brand:
-
NONE
-
Product name:
-
heavy duty die cutting machine
-
Function:
-
die cutting
-
Raw material:
-
Cast Iron
-
Color:
-
Grey
-
Application:
-
Paper, Cardboard, Corrugated
-
Automatic Grade:
-
Munual
-
Working Speed:
-
21+/-2 Sheet/min
-
Output paper:
-
High Grade Paper
-
Power Supply:
-
220V/380V/customerized
-
After-sales service:
-
On-line Support
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
21+/-2 Sheet/min
-
Max. workable width:
-
780mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
shiwei
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2400x2000x1880mm
-
Weight:
-
4500 kg
-
PLC Brand:
-
NONE
-
Product name:
-
heavy duty die cutting machine
-
Function:
-
die cutting
-
Raw material:
-
Cast Iron
-
Color:
-
Grey
-
Application:
-
Paper, Cardboard, Corrugated
-
Automatic Grade:
-
Munual
-
Working Speed:
-
21+/-2 Sheet/min
-
Output paper:
-
High Grade Paper
-
Power Supply:
-
220V/380V/customerized
-
After-sales service:
-
On-line Support
PRODUCT FEATURES

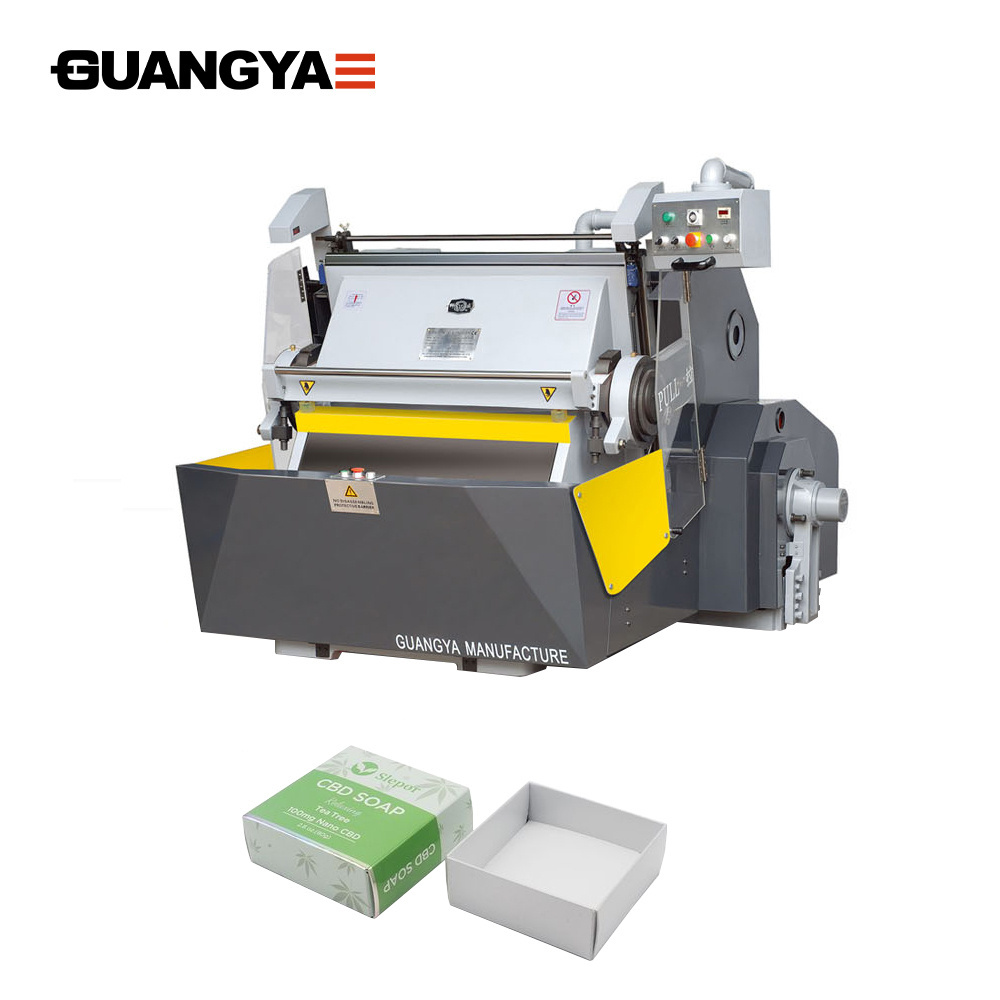

A manual die-cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the cutting plate easily, operating easily, and the perfect protection system are the main reason which can win the market. It is also the perfect model for creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand ML series Manual Creasing and Die Cutting Machine is widely used in post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure, and low noise with a 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standards.
6) Single, continuous operation and opening delay are available, the delay range is adjustable.
7) Reliable safety system.
8) Adjustable chases with a moveable bar.
9) Concentrated automatic lubricating system.
TECHNICAL PARAMETER
|
Model
|
ML-101D
|
|
Inside chase size
|
1080*780mm
|
|
Max. die cutting size
|
1080*780mm
|
|
Speed
|
21±2 sheets/min
|
|
Max. rule length
|
≤ 32m
|
|
Motor power
|
5.5kw
|
|
Pressure
|
220T
|
|
Overall machine dimensions
|
2400*2000*1880mm
|
|
Weight
|
4500kg
|
|
configuration of chase
|
Active
|
MAIN FEATURES
Main Host
Safety System
• Inferred sensor to protect the operator's safety, it is very sensitive and responds quickly
• Several sensors can control the machine’s stop, which ensures the safety of the operator.
• Safety door
Lubrication System
• Automatic centralized lubrication system
• The frequency of lubricating can be adjusted
• Easier for maintenance
Control System
Operating System
• Equipped with LCD screen, easy to operate
• Delay function can control machine opening and creasing time.
Electrical System
• Modular design of the electrical system
• CE standard electric system
• Imported electrical appliances, quality assurance
